Description

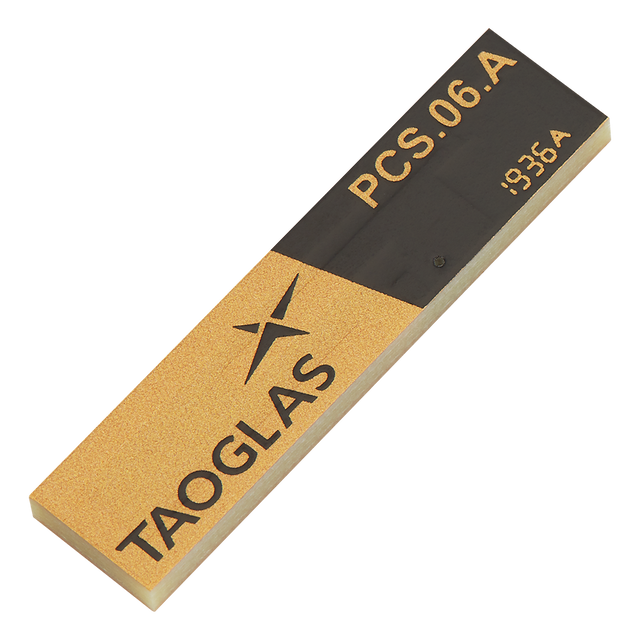

Havok PCS.06.A is a low-profile embedded cellular antenna designed for direct SMD mounting on a device PCB. It delivers efficient multi-band performance in a compact form factor, helping reduce design complexity and supporting cost-sensitive cellular designs.
- Embedded PCB integration with compact, rectangular form factor
- Multi-band cellular coverage for 4G/3G/2G device designs
- Designed for manufacturing with tape-and-reel packaging for automated assembly
- NTN suitability for devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America)
Typical use cases include Connected Health devices, handheld products, and wearables.
Installation / Environmental
Its rectangular shape and small size makes it very easy to integrate – packaged in tape and reel, it can be mounted via pick and place to reflow solder directly on the edge of the PCB board. This antenna is recommended to be used with long ground-plane lengths of 120mm or more to attain its highest rated efficiency, note the return loss and efficiency graphs.
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Antenna Technologies:
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 42mm x 10mm x 3mm
Weight: 2.50g
Cellular (4G/3G/2G, NTN)
Frequency: 617-960 MHz, 1710-2690 MHz
Standards: LTE/4G/3G/2G, GSM/CDMA/DCS/PCS/WCDMA/UMTS/HSDPA/GPRS/EDGE, NB-IoT, Cat-M, NTN (Band 255/256/23)
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Radiation Pattern: Omni
Max. Input Power: 2W
Peak Gain (dBi): -0.22 to 5.93
Soldering Type: SMD Reflow
Material: FR4
