Description

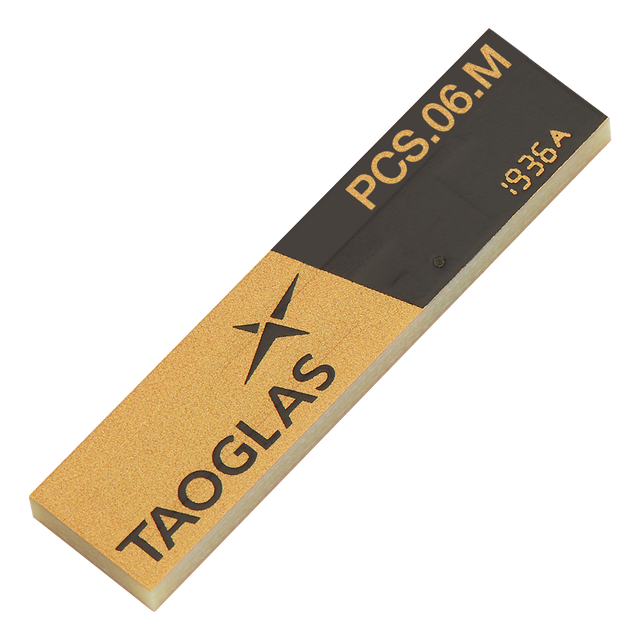

The Havok PCS.06.M is a low-profile cellular embedded antenna designed for direct SMD mounting on a device PCB. Its compact rectangular form factor supports efficient multiband operation for modern LTE designs with 3G/2G fallback, helping reduce integration space while maintaining strong RF performance.
- Low-profile embedded design: Optimized for compact devices where internal antenna volume is limited.
- Manufacturing-friendly integration: Supplied in tape and reel for pick-and-place assembly and reflow soldering.
- MIMO-ready option: Mirrored version of PCS.06.A, designed to operate in parallel with PCS.06.A in a MIMO system.
- NTN suitability: Recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Typical applications include: Handheld Devices, Remote Monitoring, MIMO Cellular Devices, telematics, and automotive solutions.
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: SMD/SMT
Type: Single
Frequency: 698MHz - 2690MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 4.3
Dimensions: 42*10*3mm RoHS & REACH Compliant Suitable for Non-Terrestrial Network applicatio
Weight: 2.5g
Material: FR4
Soldering Type: SMD through Reflow
Moisture Sensitivity Level (MSL): 3
