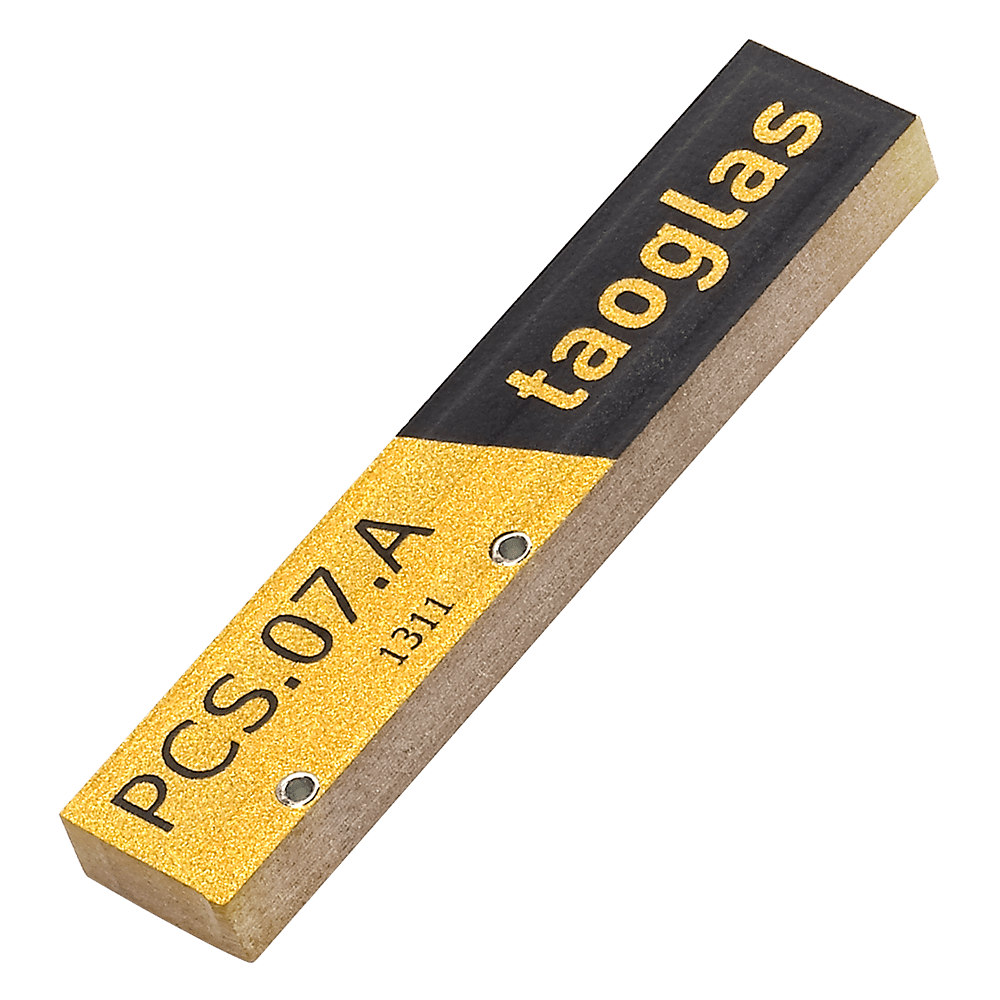

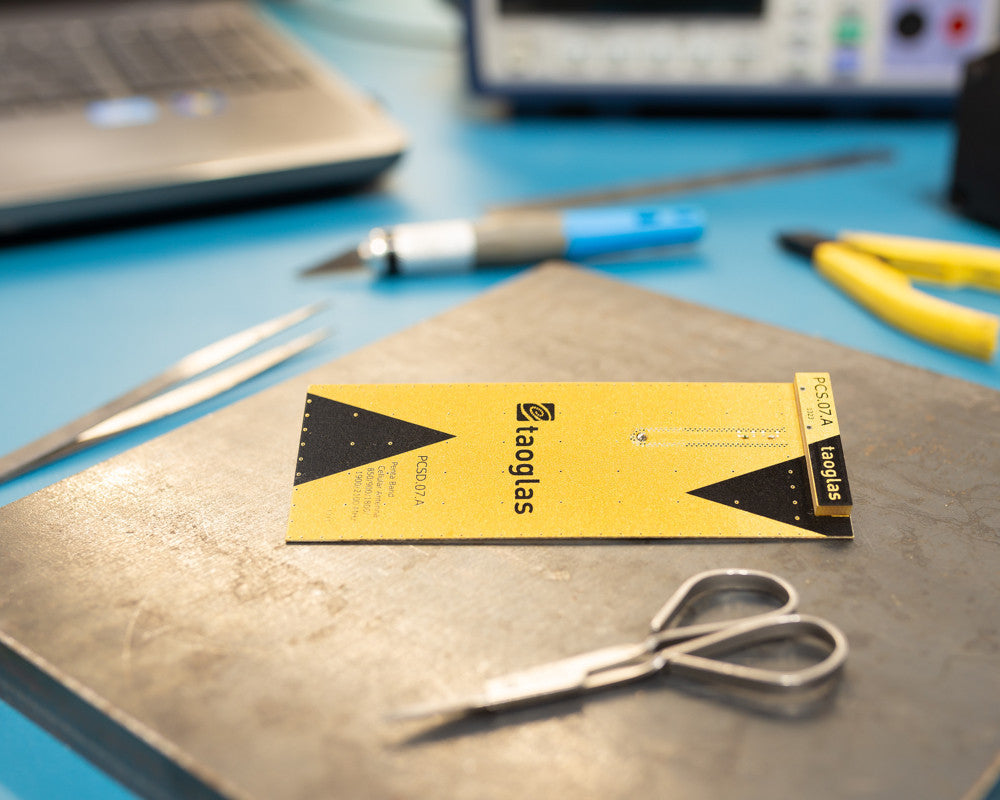

PCS.07.A Antenna Low-Profile 3G SMD/SMT mount Nemesis

The PCS.07.A is a low-profile SMD cellular antenna designed for direct SMT mounting onto a device PCB. Its compact rectangular form factor is designed to help deliver strong efficiency in space-constrained designs and offers improved resistance to detuning compared to many alternative antenna integrations.

• Designed for PCB integration: Intended for direct SMT mounting and can be placed at the edge of the PCB for simplified integration.
• Detuning resistant: Built to help maintain performance in real device environments.
• Tunable in-device: Can be tuned for the specific device environment without requiring new tooling.
• Target use cases: Suitable for cost-sensitive cellular designs, including telematics and automotive.

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 3G
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 35*7*3mm
Weight: 3g

Cellular

Frequency: 824~960MHz, 1710~2170MHz
Standards: GSM/CDMA/DCS/PCS/WCDMA/UMTS/HSDPA/GPRS/EDGE
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: 2:1
Gain (Max): 2.9 dBi
Soldering Type: SMT through Reflow
Material: Polymer
RoHS: Yes
Moisture Sensitivity Level (MSL): 3 (168 Hours)
