Description

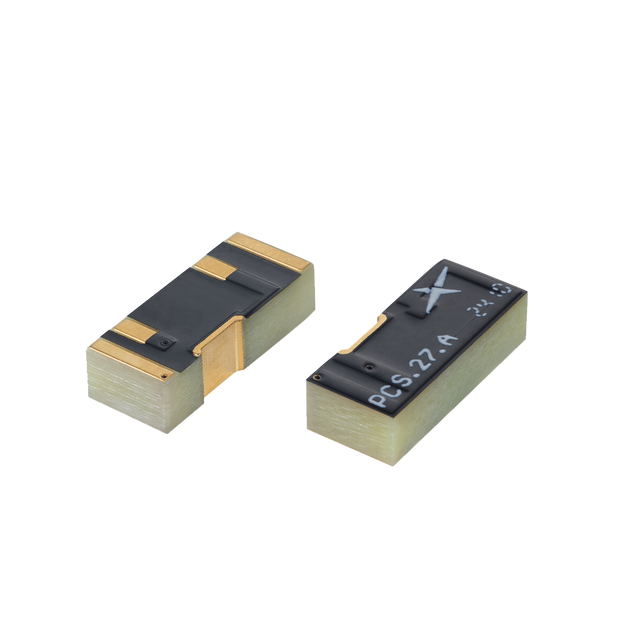

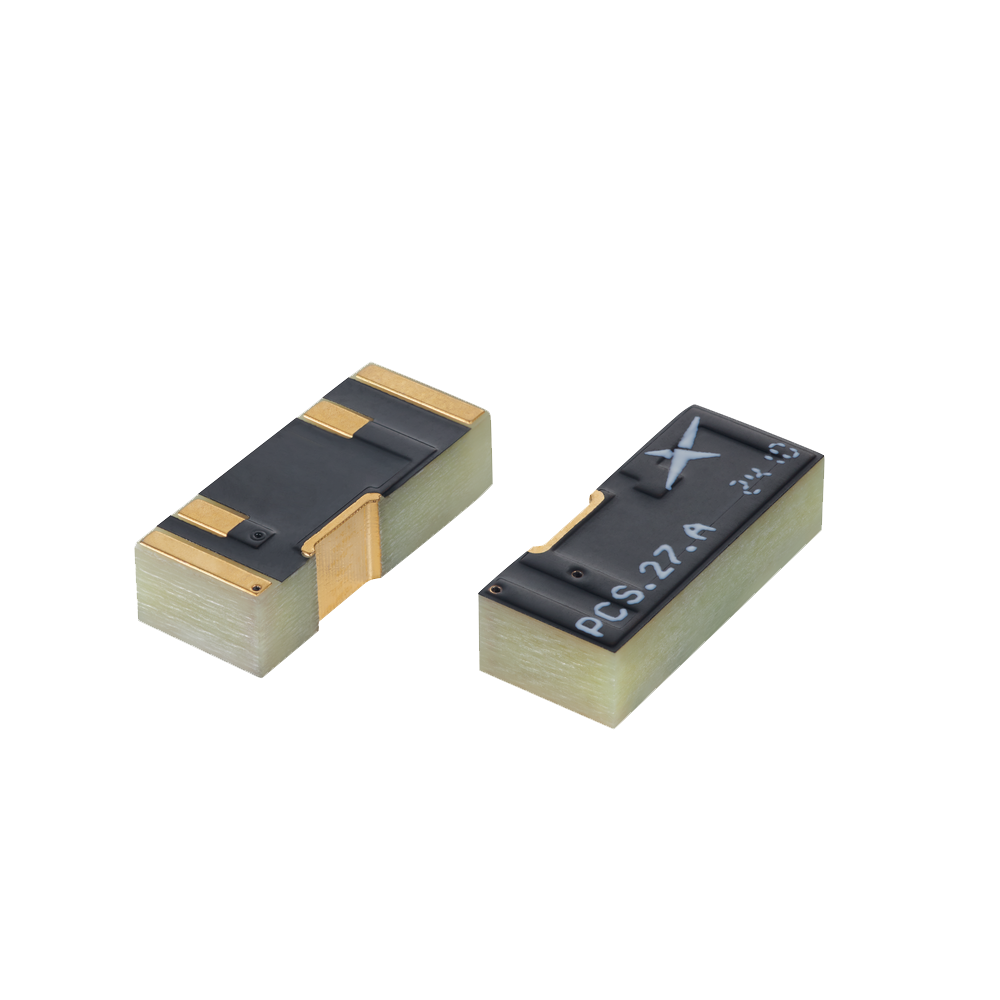

This super small, low-profile embedded antenna is designed for high-performance Wi-Fi 6/7 devices, covering the 2.4GHz, 5.8GHz, and 7.125GHz bands to help future-proof compact product designs.
Supplied on tape and reel and intended for SMD/SMT placement on a PCB, it is engineered to operate with or without copper clearance on all PCB layers, making it suitable for designs where board space is at a premium.
Typical applications include:
- Wearables and handheld Wi-Fi devices
- Smart home and office automation
- Entertainment systems with 4K / 8K streaming, VR and AR
- Keyless entry systems and access control systems
- Smart telemedicine and healthcare
- Industrial automation and predictive maintenance systems
Installation / Environmental
The following is an example on how to integrate the PCS.27.A into a design. This antenna has 4 pins, where one pin is used for the RF Feed. Taoglas recommends using a minimum of 50x50mm ground plane (PCB) to ensure optimal performance.
Top view of PCB.
Please find the Integration files in Altium and the 3D model for the PCS.27.A here: pcs-27-a-super-small-wi-fi-6-7-smd-antenna
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Antenna Technologies: PIFA
Location: Internal
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Dimensions: 12.0 x 5.0 x 3.1mm
Weight: 1g
Wi-Fi 6/7
Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Wi-Fi - 2GHz Efficiency (%): 39.0
Wi-Fi - 2GHz Average Gain (dB): -4.09
Wi-Fi - 2GHz Peak Gain (dBi): 1.19
Wi-Fi - 5GHz Efficiency (%): 55.8
Wi-Fi - 5GHz Average Gain (dB): -2.54
Wi-Fi - 5GHz Peak Gain (dBi): 3.53
Wi-Fi - 6GHz Efficiency (%): 48.8
Wi-Fi - 6GHz Average Gain (dB): -3.12
Wi-Fi - 6GHz Peak Gain (dBi): 3.94
VSWR: 2:1
