Description

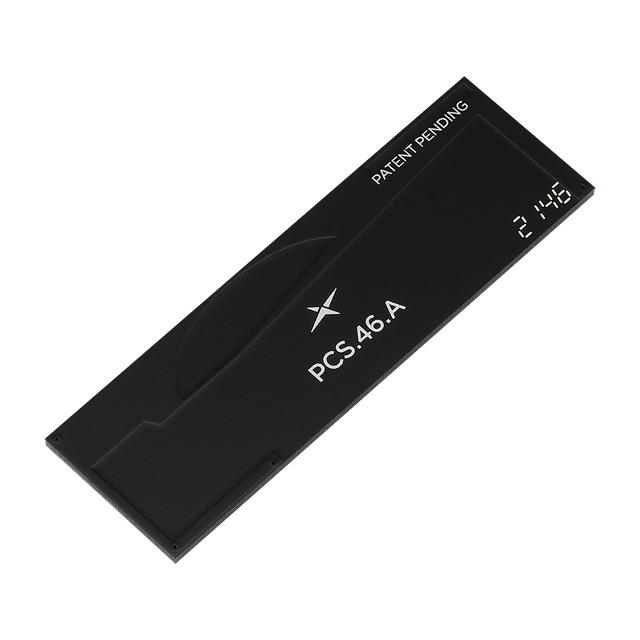

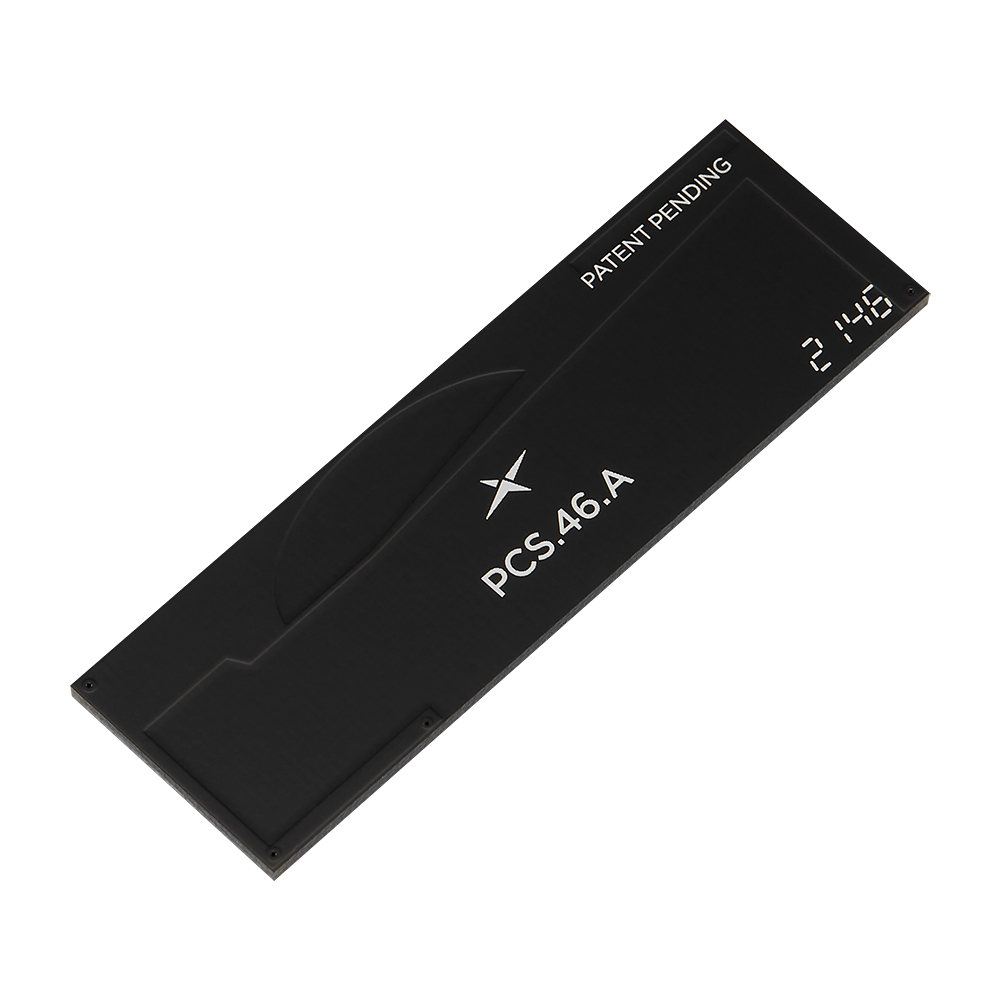

This low-profile wideband embedded antenna is designed to support sub-6 GHz 5G and 4G/LTE connectivity in compact devices, while also enabling 3G/2G fallback where required. It is optimized for efficient performance across a very wide frequency range and is well-suited to designs where PCB space and height are limited.
- Wideband cellular coverage: Supports a broad range of 5G/4G bands, including coverage for lower-frequency deployments.
- Low-profile embedded design: Suitable for devices where enclosure height is at a premium.
- Manufacturing-friendly format: Supplied on tape & reel for automated pick-and-place assembly.
- Integration flexibility: Can be tuned depending on the device environment if required.
Typical use cases: Smart Metering, Connected Health, Wearable Technologies, Payment Terminals, and wideband IoT devices.
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: 67 x 20 x 1.5 mm RoHS & REACH Compliant
Weight: 7g
5G/4G Wideband (Embedded)
Frequency: 400MHz - 6000MHz
Frequency Sub-Bands: 400~480, 617~698, 698~806, 824~960, 1427~1518, 1710~2200, 2300~2690, 3300~5000, 5150~5925 MHz
Standards: 5GNR/4G/3G/2G/NB-IoT/Cat M; LTE5200/Wi-Fi 5800
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
VSWR: 3.5:1
Gain (Max): 3.6 dBi
Max Input Power: 20W
Termination: Solder Pad
