Description

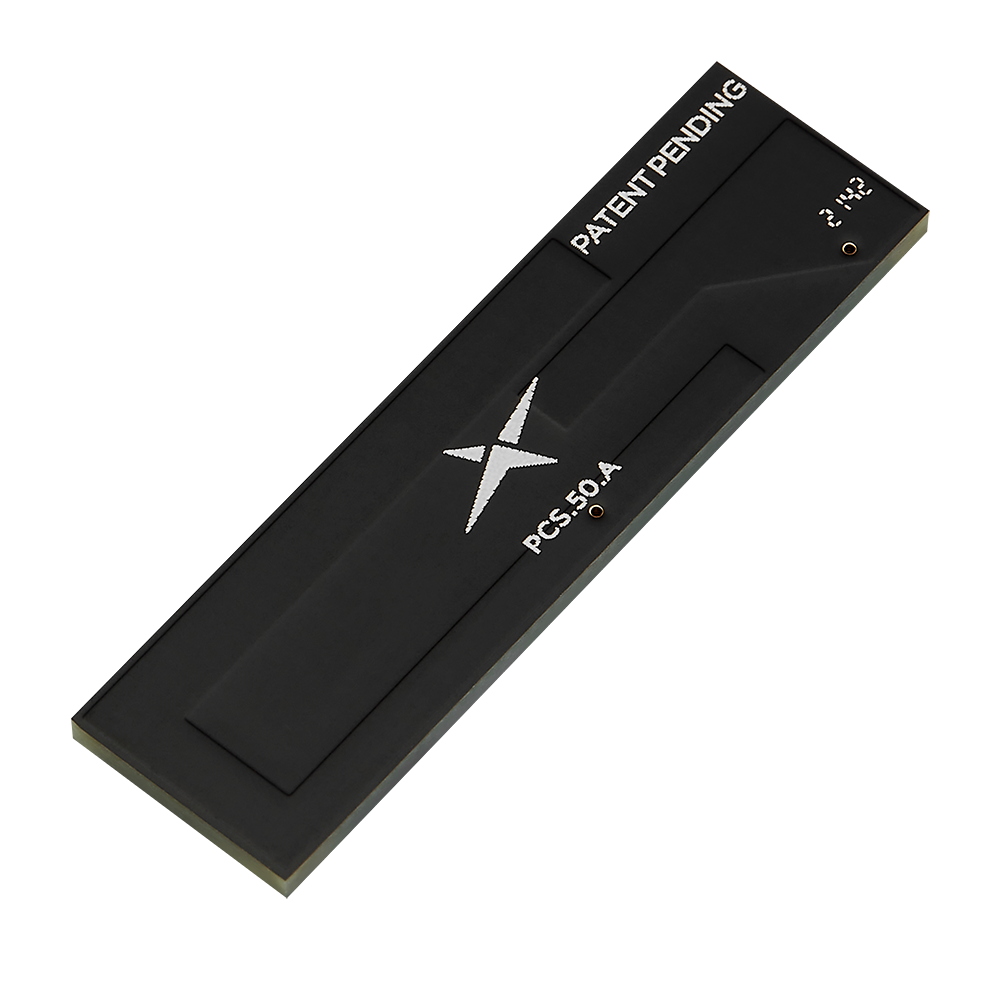

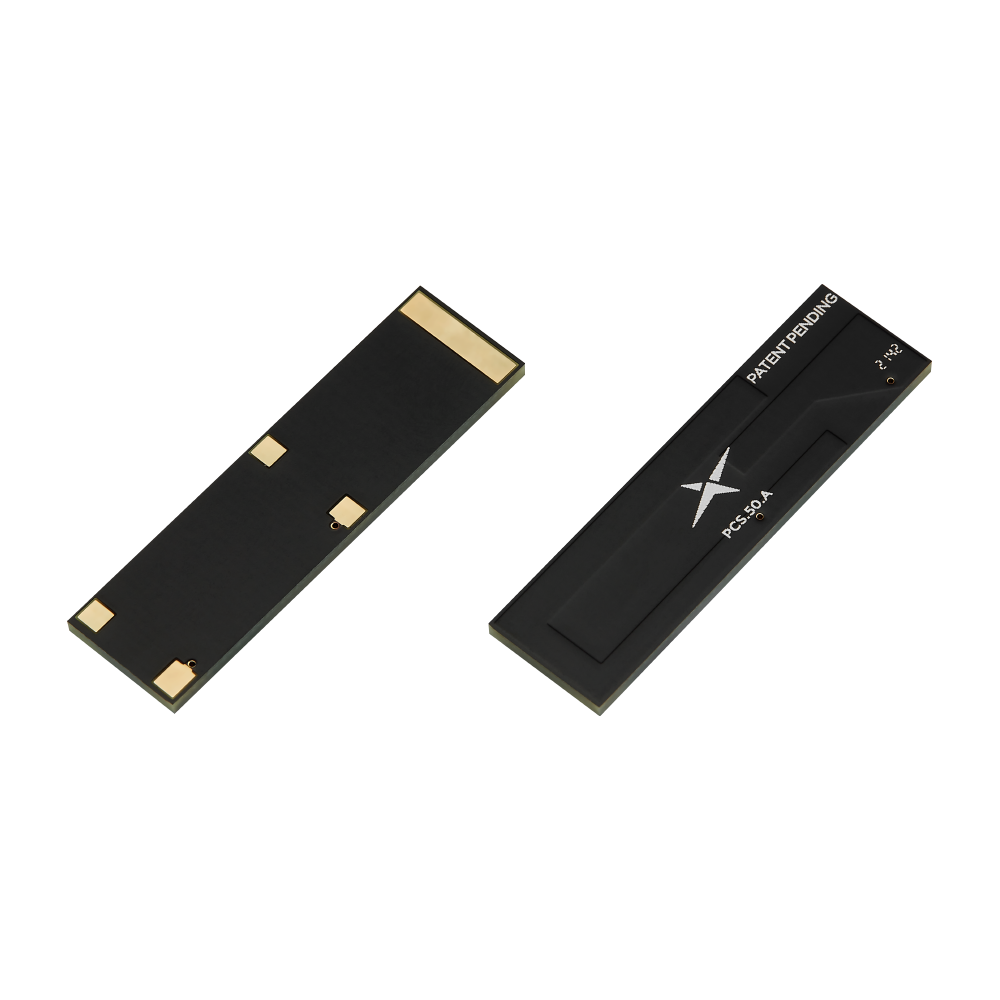

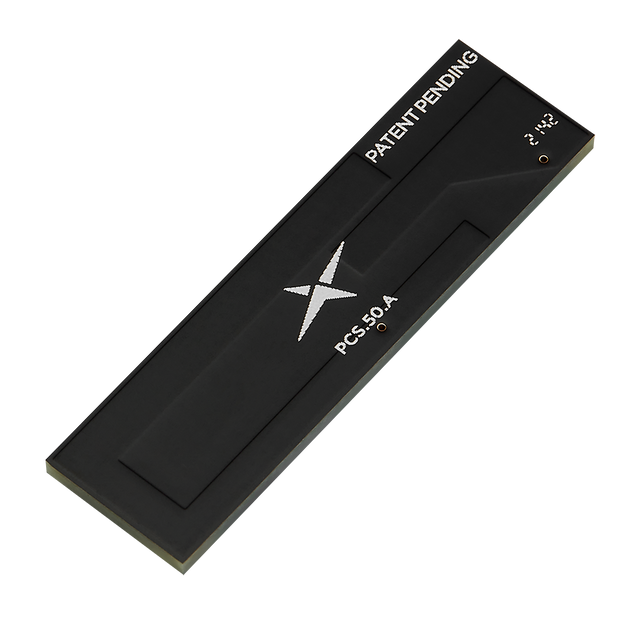

This low-profile, active embedded antenna is designed for compact IoT devices with small ground planes, combining cellular and GNSS support in a single SMD solution.
- Smart wideband operation: Uses aperture tuning and active switching to help support multiple cellular bands while maintaining efficient performance.
- GNSS + cellular in one compact part: Enables both positioning and connectivity use cases in space-constrained products.
- Module-controlled tuning: Compatible with radio modules supporting an RF front-end control interface (RFFE) to select the desired operating configuration.
- Improved system RF performance: Designed to enhance TRP/TIS versus standard passive solutions (device and implementation dependent).
- Manufacturing-friendly integration: Built for standard SMD/SMT assembly and supplied on tape and reel.
Recommended for Non-Terrestrial Network (NTN) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Technical Specifications
Operating Temperature: -40 C to +85 C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: Cat-M
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Impedance: 50A9
Polarization: Linear
VSWR: 3:1
Gain (Max): 3.2
Dimensions: 38*10*1.6mm Smart antenna solution with aperture tuning RoHS & REACH Compliant S
Weight: 2.5g
RoHS: Yes
Cellular & GNSS (Active, SMD/SMT)
Frequency (Cellular): 698-960MHz, 1710-2700MHz
Frequency (GNSS): 1561-1602MHz
Standards (GNSS): GPS / GLONASS / Galileo / BeiDou
Termination Style: SMD/SMT
