Description

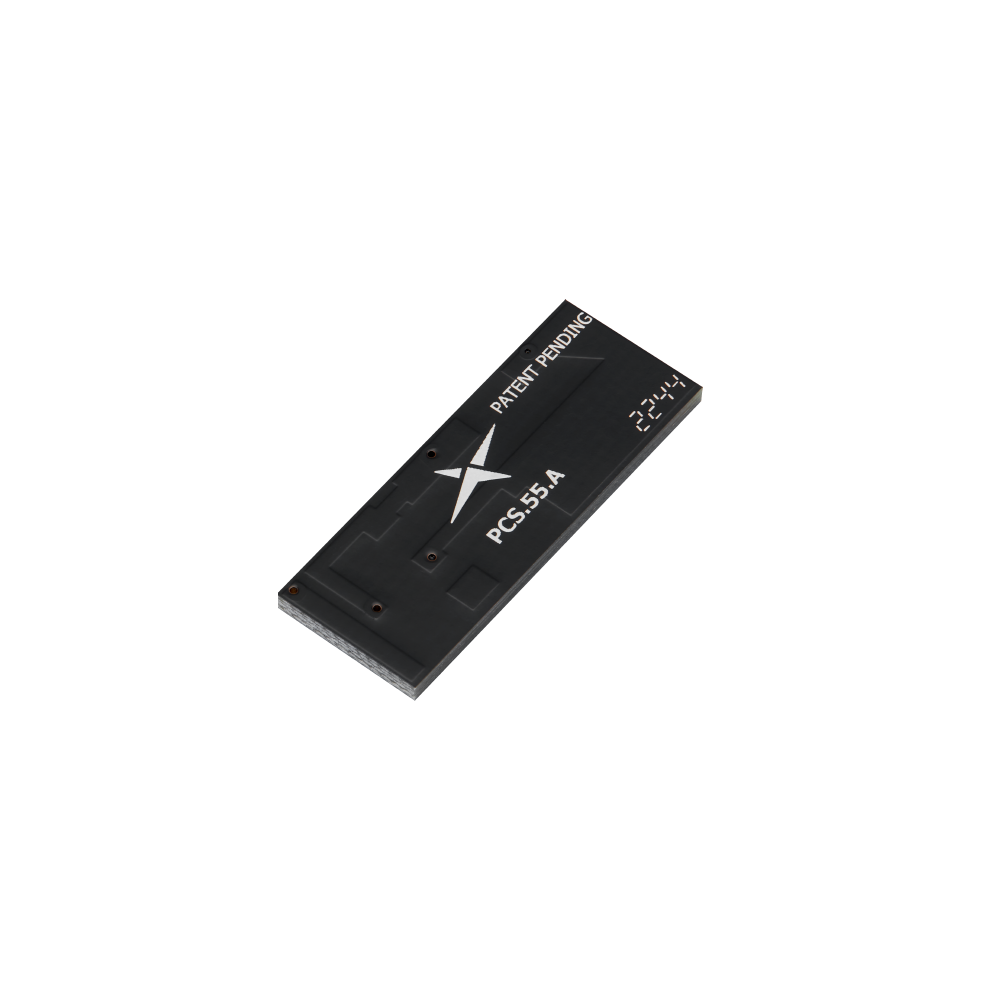

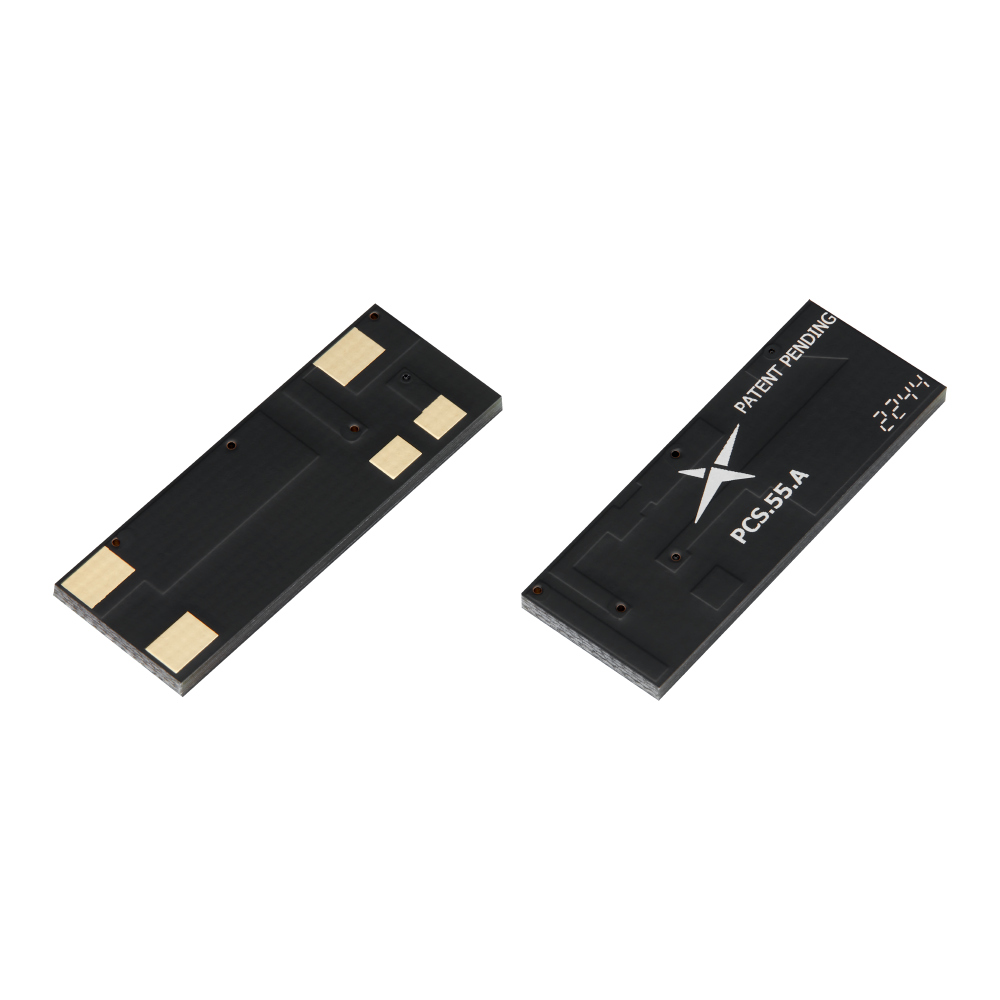

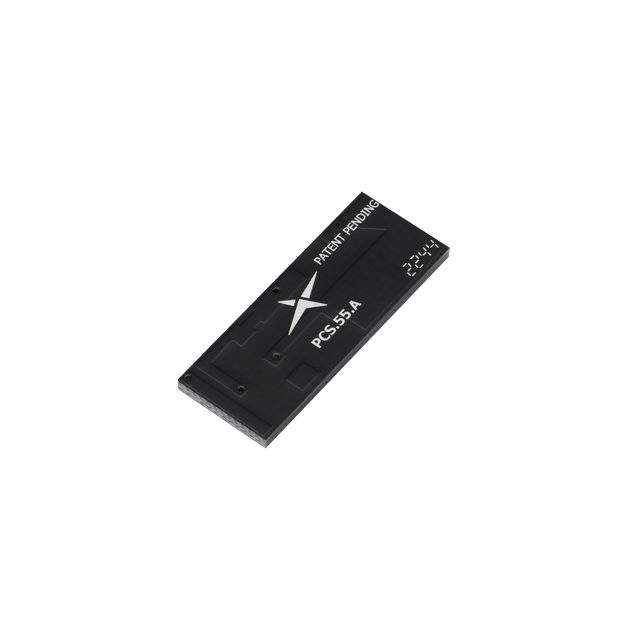

PCS.55.A is a compact, patent-pending embedded antenna designed for IoT devices where PCB space and ground plane size are limited. It provides wideband cellular coverage (including challenging low bands) while also supporting multi-constellation satellite navigation in a single, small-form-factor solution.
- Compact embedded form factor: suited to space-constrained device designs
- Wideband cellular + GNSS support: enables combined connectivity and positioning in one antenna
- SMD/SMT integration: intended for standard PCB assembly processes
- Regional matching options: configurations available for NA, EMEA, and WW deployments
Typical applications include:
- Handheld IoT Devices
- Handsets and Tablets
- Compact Asset Trackers
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 27 x 10 x 1.6mm
Weight: 0.9g
Material: FR4
Soldering Type: SMD
5G/4G/LTE + GNSS
Frequency: 600-3000 MHz; 1561-1602 MHz
Standards: 5GNR/4G/LTE, LTE CAT-M, NB-IoT; GPS/GLONASS/Galileo/BeiDou
Impedance: 50 Ω
Polarization: Linear
VSWR: 02:01
Gain (Max): 3.94 dBi
Max Input Power: 2W
