Description

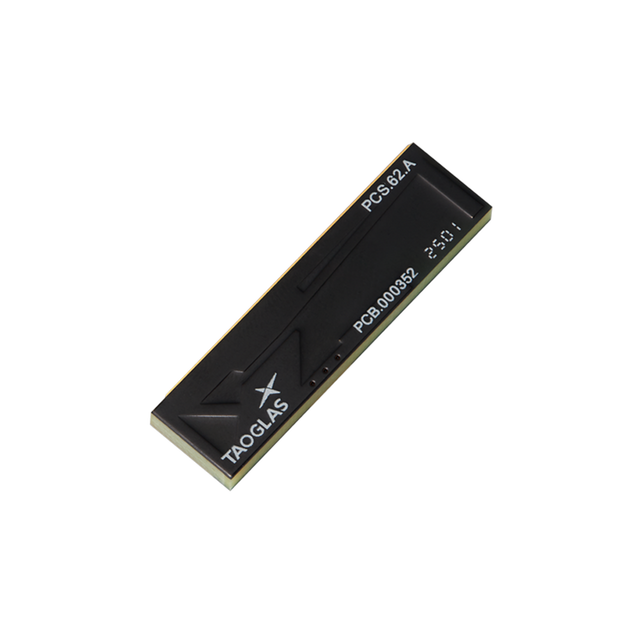

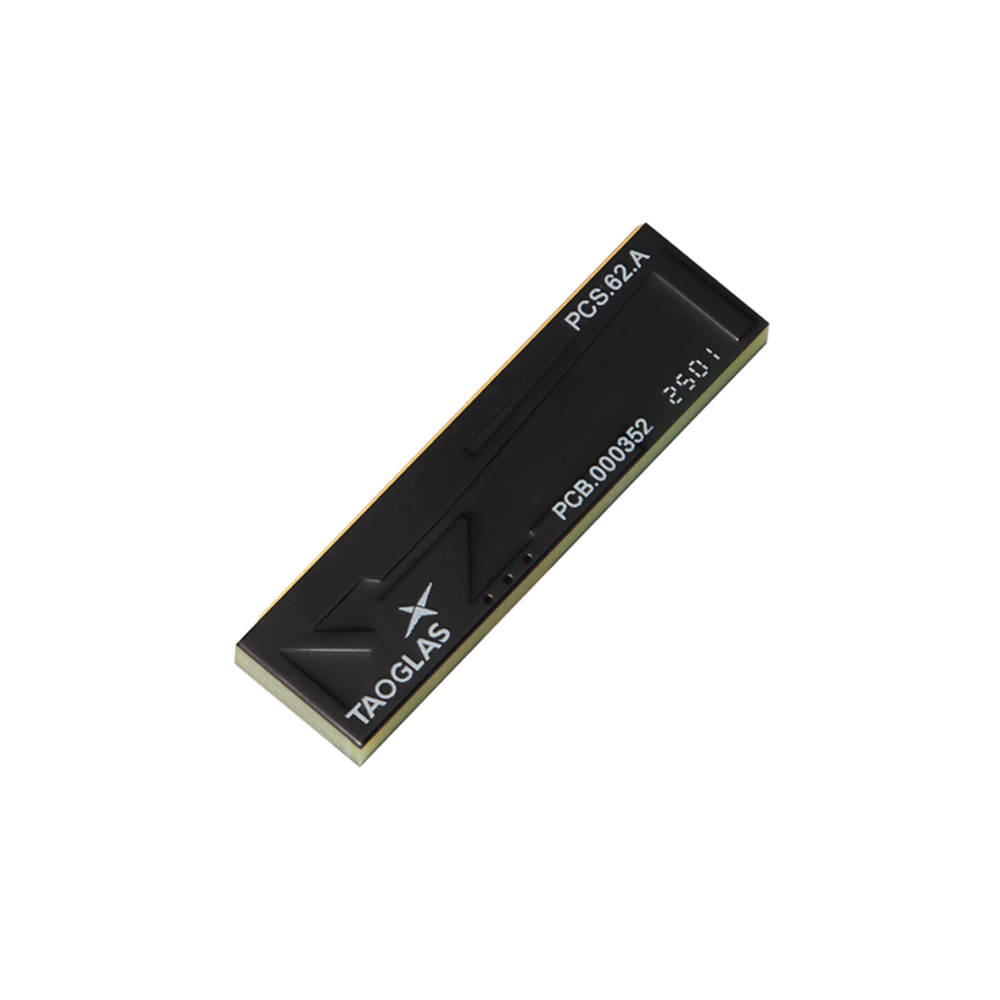

This ultra-compact, low-profile embedded antenna is designed for space-constrained devices that still need reliable wideband cellular performance. Its small footprint and minimal keep-out area help reduce total PCB real estate while supporting efficient operation across global cellular bands.
- Space-saving embedded design: Low-profile form factor for compact devices
- Wideband coverage: Designed for global cellular operation across a broad spectrum
- Manufacturing-friendly: Supplied on tape and reel to support pick & place assembly
- Tunable integration: Can be tuned depending on the device environment if required
Typical applications include:
- Smart Metering
- Smart City Infrastructure
- Automotive Systems
- Wearable and Medical Devices
- Surveillance Systems
Installation / Environmental
The following is an example on how to integrate the PCS.62.A into a design. This antenna has 3 pins, where one pin is used for the RF Feed. A minimum of 133 x 38mm ground plane (PCB) is recommended to ensure optimal performance.
Top view of PCB.
Technical Specifications
Operating Temperature: -40 to 85°C
Cellular Technologies: 5G
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 38 x 10.3 x 3mm RoHS and REACH Compliant
Weight: 2.5g
Cellular (Wideband)
Frequency: 600MHz - 6000MHz
Standards: 5GNR/4G/3G/2G, GSM, UMTS, LTE
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni directional
VSWR: 2:1
Gain (Max): 7.47
Max. Input Power: 10W
Termination: Solder Pad
