Description

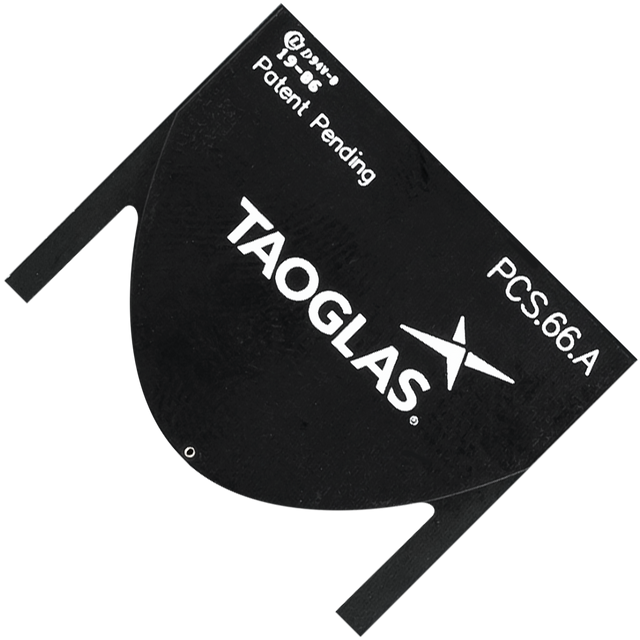

The Reach PCS.66.A is a low-profile, small-footprint wideband antenna designed for sub-6 GHz 5G deployments while also supporting legacy cellular fallback bands. It is intended for direct onboard integration on a device PCB and is supplied in tape-and-reel format for high-volume assembly.
This design is optimized to help deliver strong over-the-air performance across a very wide operating bandwidth and can be adapted to specific device environments using an external matching network if required.
- Wideband coverage: Designed to support sub-6 GHz 5G and 4G/LTE with backward compatibility for 3G/2G operation.
- Low-profile onboard integration: Supports efficient PCB space usage with minimal additional keep-out requirement.
- Manufacturing-friendly: Supplied on tape & reel to support automated pick-and-place assembly.
- Adaptable design: Can be optimized for specific bands using a matching network depending on the device environment.
The PCS.66.A is also recommended for Non-Terrestrial Network (NTN) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: Internal
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
Dimensions: 32 x 25 x 1.6 mm RoHS & REACH Compliant Suitable for Non-Terrestrial Network app
Weight: 4g
5G NR / 4G LTE / 3G / 2G
Frequency: 617-960, 1427-1518, 1710-1990, 1920-2170, 2400-2500, 2500-2700, 3300-5000, 5150-5850 MHz
Standards: 5G NR Band 71; 5G NR Band 74,75,76; 5G NR Band 77,78,79; LTE/GSM/HSPA/CDMA; UMTS/HSPA; Wi-Fi 2400; Wi-Fi 5800
Impedance: 50Ω
Polarization: Linear
Radiation: Omni-directional
VSWR: 2.5:1
Max Input Power: 5 W
Termination: Solder Pad
Material: PCB
