Description

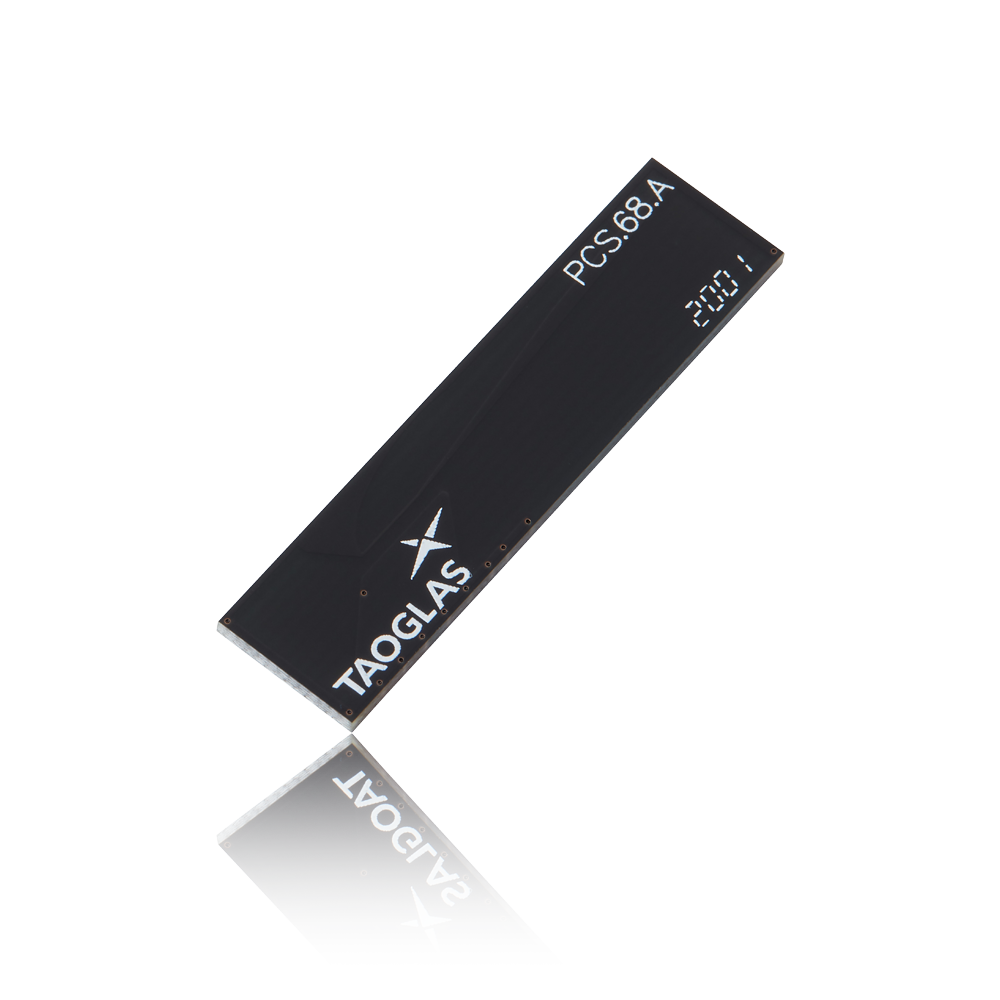

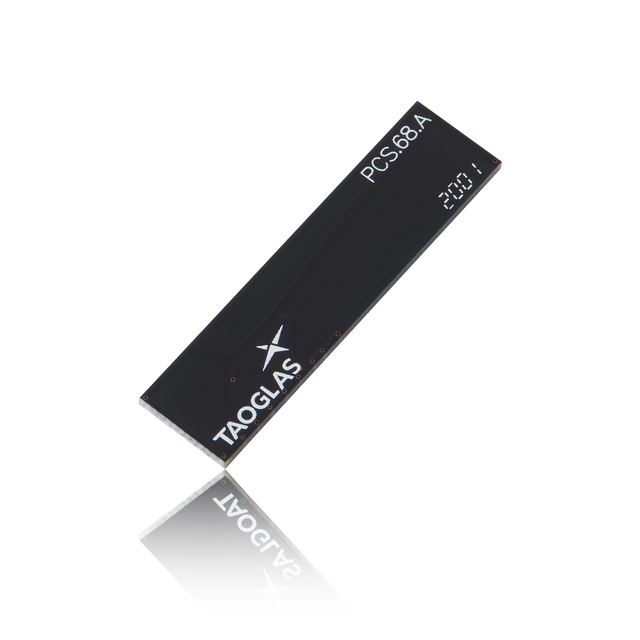

PCS.68.A is a low-profile, small-footprint wideband PCB antenna designed to support sub-6 GHz cellular connectivity across a very broad bandwidth. Its compact height makes it well-suited to devices where internal space is limited, while the wide operating range supports modern 5G FR1 and 4G operation with fallback support for legacy networks.
- Wideband cellular coverage: designed to cover 600–6000 MHz for sub-6 GHz deployments
- Low-profile design: suitable for space-constrained product enclosures
- Embedded PCB SMD format: intended for direct integration onto the device main PCB
- Production-friendly packaging: supplied on tape & reel for pick-and-place assembly
Typical applications include:
- Autonomous/UAVs
- Smart Metering
- Connected Health
- Wearable Technologies
- Payment Terminals
Technical Specifications
Operating Temperature: -45°C to 85°C
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 42 x 10 x 1.5 mm RoHS & REACH Compliant
Weight: 2g
5G/4G/3G/2G (Wideband Cellular)
Frequency: 600MHz - 6000MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2
Gain (Max): 3.8
Max. Input Power: 2W
Termination: Solder Pad
