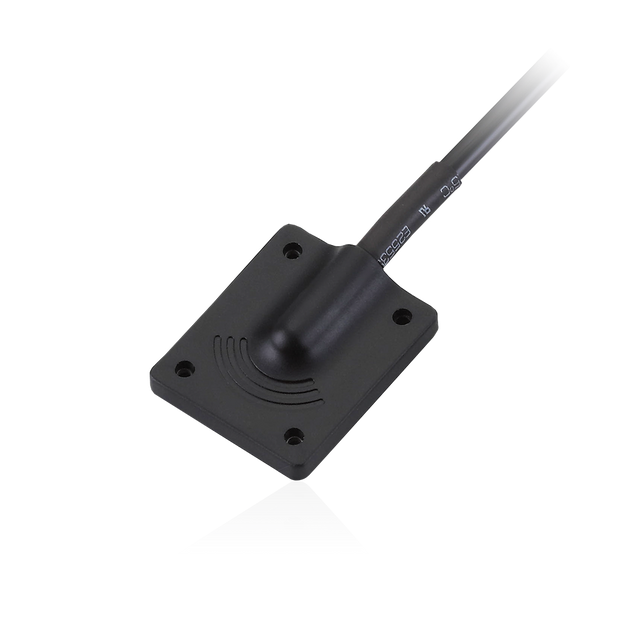

PCUWB01.01.0500G Antenna External Outdoor UWB adhesive SMA-M 50cm TGC-200 IP67 for Precision surveying, Smart home and entertainment systems, Position Location and Tracking applications

This ultra-wideband (UWB) omnidirectional antenna is designed to cover worldwide UWB frequencies used across European and US channel plans (channels 1–15). It delivers strong, consistent coverage around the sensor and is engineered to preserve signal integrity with excellent fidelity factor performance and low group delay variation.

Suitable for low-power, short-range UWB systems, it can help extend battery life in sensors and tags while supporting accurate ranging and positioning use cases. It is also designed for integration with UWB sensor modules such as the Decawave ScenSor DW1000 and compatible alternatives.

• Wide UWB coverage: supports 3–5GHz and 6–10.3GHz bands
• Omnidirectional radiation: consistent all-around coverage
• Rugged enclosure: IP67-rated for indoor/outdoor environments
• Simple placement: adhesive mounting on plastic surfaces

Typical uses include: precision surveying, smart home and entertainment systems, and indoor position location/tracking applications.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 50cm
• Cable Type: TGC-200

Technical Specifications

Operating Temperature: -40 C to 85 C
Location: External
Mounting: Adhesive Mount
Type: Single
IP Rating: IP67
Dimensions: 36*10*10mm RoHS and REACH compliant
Weight: 50g

UWB

Frequency: 3.1.0 GHz, 6.2.0 GHz, 8.00.3 GHz
Standards: USA UWB channels 1-4, EU UWB/ USA UWB channels 5-8, USA UWB channels 9-15
Radiation Properties: Omnidirectional
Polarization: Linear
Impedance: 50
VSWR: 1.4
Gain (Max): <7.5 dBi
Max Input Power: 5 W
Connector Type: SMA(M) ST
Cable Length: 50cm
Cable Type: TGC-200
