Antenova  |  SKU: SR4I052

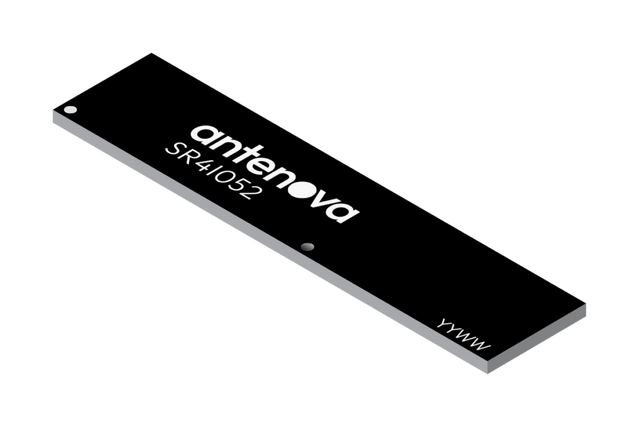

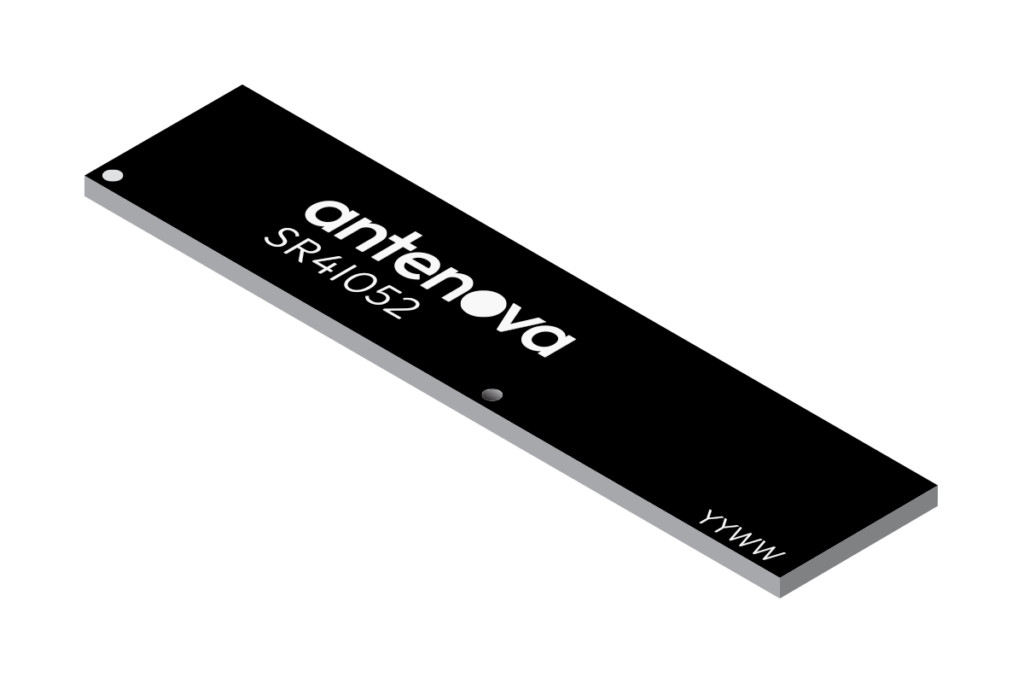

SR4I052 Velox 868/915MHz ISM SMD Antenna

€2,65
Tax included Shipping calculated at checkout.

Manufacturer / (EU) Responsible Person

Manufacturer
Antenova Ltd
7 The Briars, Waterberry Drive, Waterlooville, Hampshire PO7 7YH, United Kingdom
+442394001023

EU Responsible Person
Aldacom GmbH
Hans Böckler Strasse 16, Neu Isenburg, 63263, Germany
info@aldacom.com
061027984895

Description

Compact SMD antenna designed for ISM 868 and 915 MHz applications, offering a low-profile solution for devices with limited PCB space. The antenna is engineered for integration, utilizing the host PCB ground plane for optimal performance. Installation requires a clearance area beneath the antenna and SMD mounting, making it suitable for automated assembly processes.


Applications

Industrial/Scientific/Medical (ISM), Remote monitoring/ Smart meters, Network Devices, Manufacturing automation, Agriculture/Environment, Consumer tracking


Technical Specifications

Operating Temperature: -40°C to 140°C
Frequency Range: 863–928 MHz
Efficiency (%): >70%
Peak Gain (dBi): 1.60
Average Gain (dBi): -1.60
VSWR: 2.4:1 max
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Type: Single

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{'frequency_range': '863–928 MHz', 'peak_gain': '1.60 dBi', 'average_gain': '-1.60 dBi', 'efficiency': '>70%', 'vswr': '2.4:1 max', 'impedance': '50 Ohm', 'polarization': 'Linear', 'operating_temperature': '-40°C to 140°C', 'dimensions': '35.0 x 8.0 x 0.9 mm', 'weight': '<2g', 'antenna_type': 'SMD', 'maximum_return_loss': '<-7.5 dB'}
