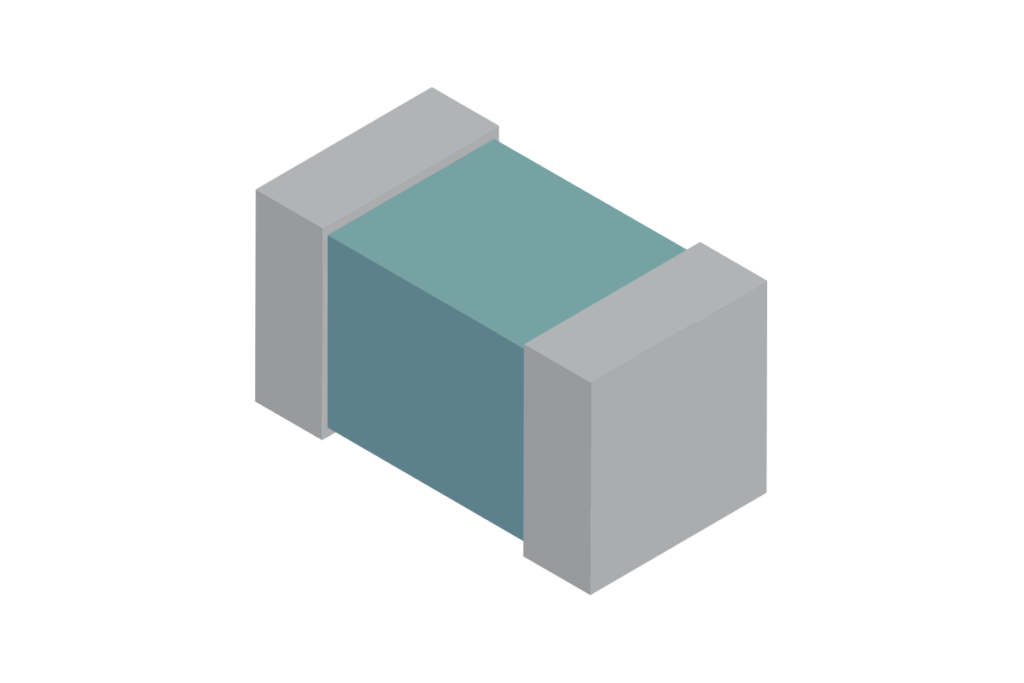

SRC5G027 Sharpi 4.9-5.9GHz Wi-Fi Chip Antenna

Ultra-compact ceramic chip antenna designed for Wi-Fi applications in the 4.9–5.9GHz band, supporting 802.11a/h/j/n/p/ac standards including vehicle-to-vehicle (V2X) connectivity. Its small footprint is ideal for integration into space-constrained devices and enables high performance with a minimal ground plane. The antenna is suitable for both single and MIMO systems and is supplied on tape and reel for efficient manufacturing. Installation is via SMD mounting, making it easy to integrate onto standard PCBs.

Applications

Access Points, Portable Devices, PC-cards, Set-Top-Box, Network Devices, Wearable devices, V2X networks, MIMO Systems, IP Cameras

Technical Specifications

Operating Temperature: -40°C to 125°C
Frequency Range: 4.9-5.9GHz
Standards: 802.11a/h/j/n/p/ac
VSWR: 3.0:1 max
Efficiency (%): >60%
Peak Gain (dBi): 3.50
Average Gain (dBi): -2.50
Impedance (Ohm): 50
Polarisation: Linear
Mounting: SMD Mount
Type: Single
