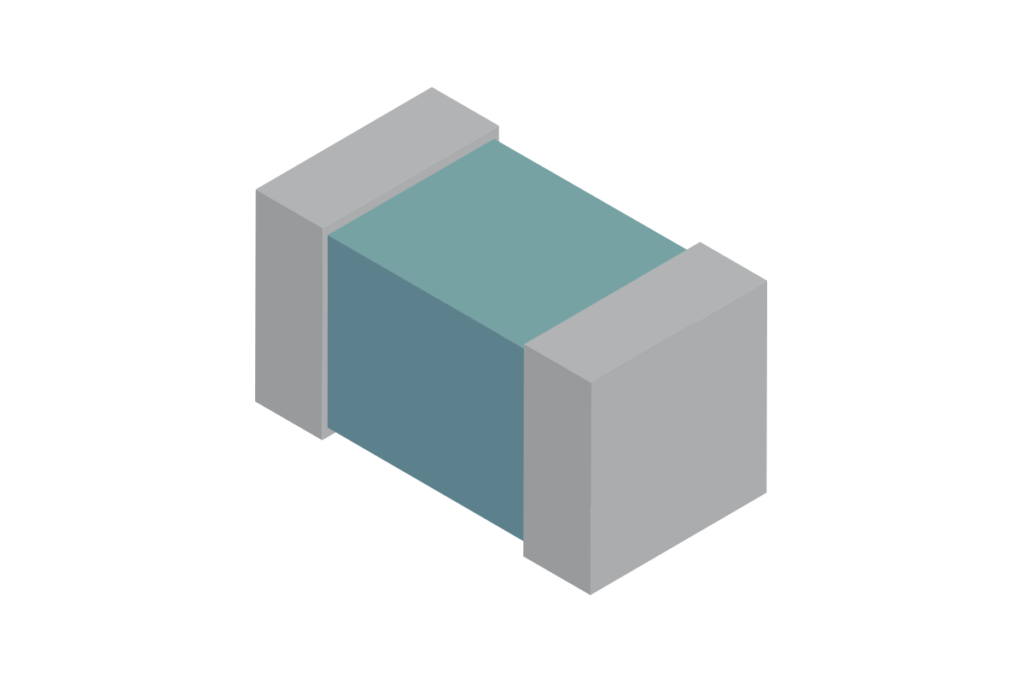

SRCW004 Weii 2.4GHz Ceramic Chip Antenna

Name: SRCW004 Weii 2.4GHz Ceramic Chip Antenna
Brand: Antenova
SKU: SRCW004
Price: 0.54 EUR
Availability: InStock

€0,54

Unit Price excluding VAT. Shipping calculated at checkout.

Datasheet

PDF Download

Description

This ultra-compact ceramic chip antenna is designed for the 2.4–2.5GHz band, making it ideal for integration into small devices such as wearables, headsets, and medical equipment. Its high efficiency and resistance to de-tuning ensure reliable performance across various environments and ground plane sizes. The antenna is SMD mounted, allowing for straightforward installation onto PCBs, and is well-suited for designs where space is at a premium.

Applications

Small wearable devices, Headsets, Medical devices, PNDs, Dongles, Sensors

Technical Specifications

Operating Temperature: -40°C to +125°C
Frequency Range: 2.4–2.5 GHz
Efficiency (%): 70%
Peak Gain (dBi): 2.5 dBi
Average Gain (dBi): -1.5 dBi
VSWR: 1.6:1 max
Impedance (Ohm): 50 Ω
Polarisation: Linear
Mounting: SMD Mount
Type: Single

Download Datasheet PDF

Technical Specifications (AI Reference Data)

{'frequency_range': '2.4–2.5 GHz', 'peak_gain': '2.5 dBi', 'average_gain': '-1.5 dBi', 'efficiency': '70%', 'vswr': '1.6:1 max', 'impedance': '50 Ω', 'polarization': 'Linear', 'operating_temperature': '-40°C to +125°C', 'dimensions': '1.0 x 0.5 x 0.5 mm', 'footprint_size': '9.0 x 4.5 mm', 'weight': '<0.015 g', 'return_loss': '<-10 dB', 'mounting_type': 'SMD'}
