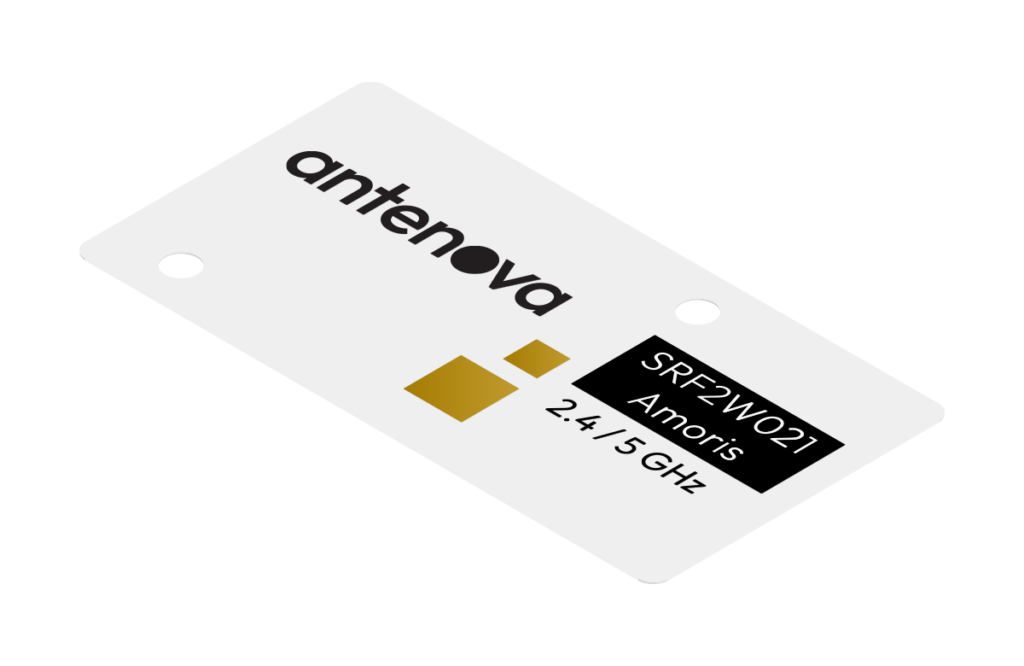

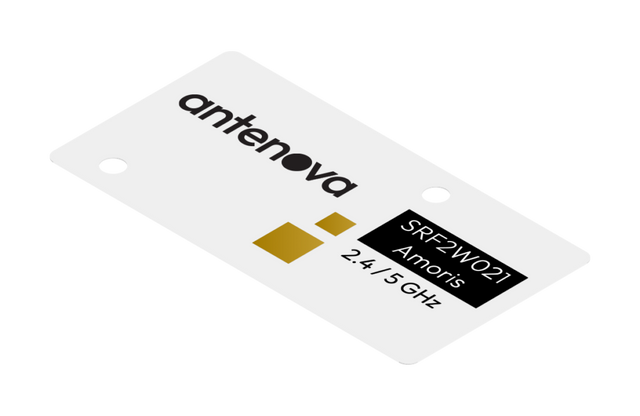

SRF2W021 Amoris Dual-Band Wi-Fi Flexible FPC Antenna MHF IPEX

This flexible FPC antenna is designed for dual-band Wi-Fi applications, supporting both 2.4 GHz and 5 GHz frequency bands. Its slim, self-adhesive design allows for easy integration into a wide range of wireless devices, including access points, portable devices, and wearables. The antenna comes with a standard 100mm cable and an MHF IPEX connector for straightforward plug-and-play installation. Custom cable lengths are available to suit specific project requirements, making it ideal for rapid development cycles and compact device designs.

• Self-adhesive mounting for quick and secure installation
• Flexible construction enables placement in tight spaces
• Supplied with MHF IPEX connector and 100mm cable as standard

Applications

Access Points, Portable Devices, PC-cards, Game Consoles, Set-Top-Box, Network Devices, Wearable devices, MIMO Systems

Technical Specifications

Operating Temperature: -40°C to +85°C
Frequency Range: 2.4-2.5, 4.9-5.9 GHz
Standards: Wi-Fi 802.11a/b/g/j/n/ac, Bluetooth
VSWR: 1.7:1 max
Efficiency (%): >67% (2.4 GHz), >70% (5 GHz)
Peak Gain (dBi): 2.8 (2.4 GHz), 5.1 (5 GHz)
Impedance (Ohm): 50
Polarisation: Linear
Mounting: Adhesive Mount
Type: Single
