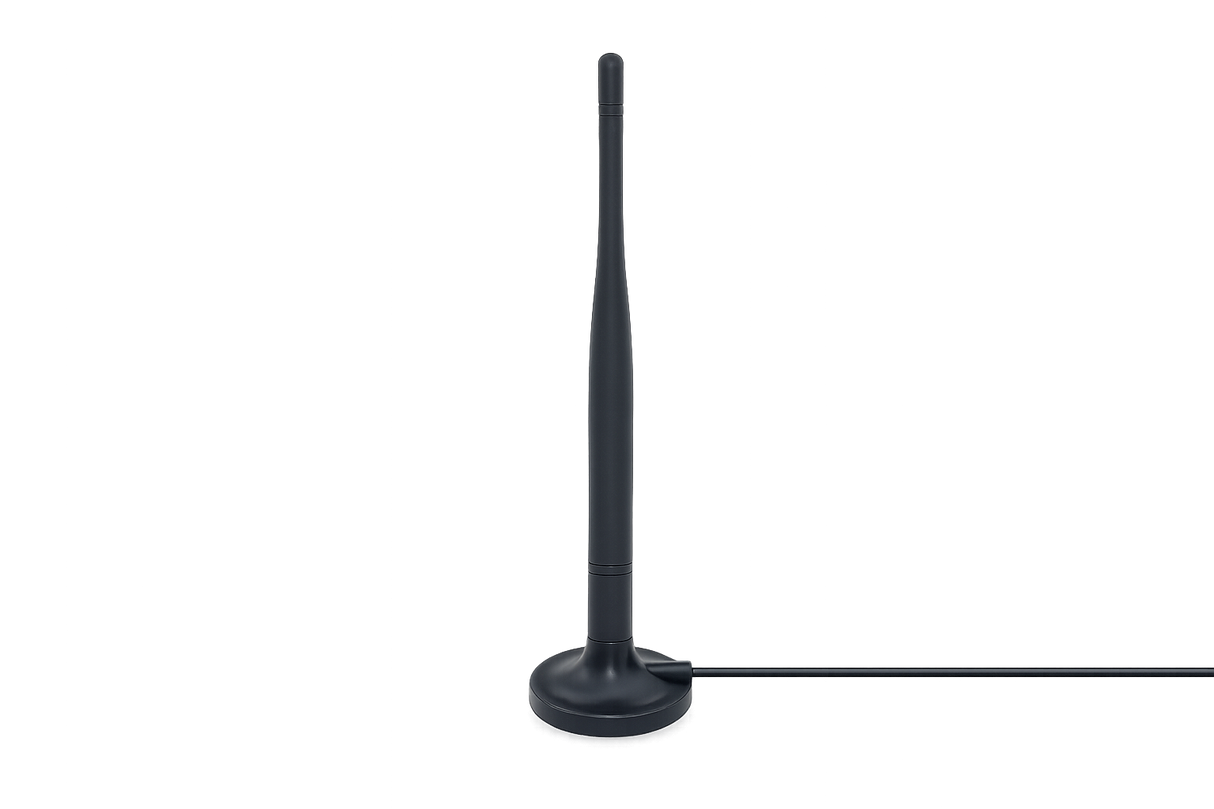

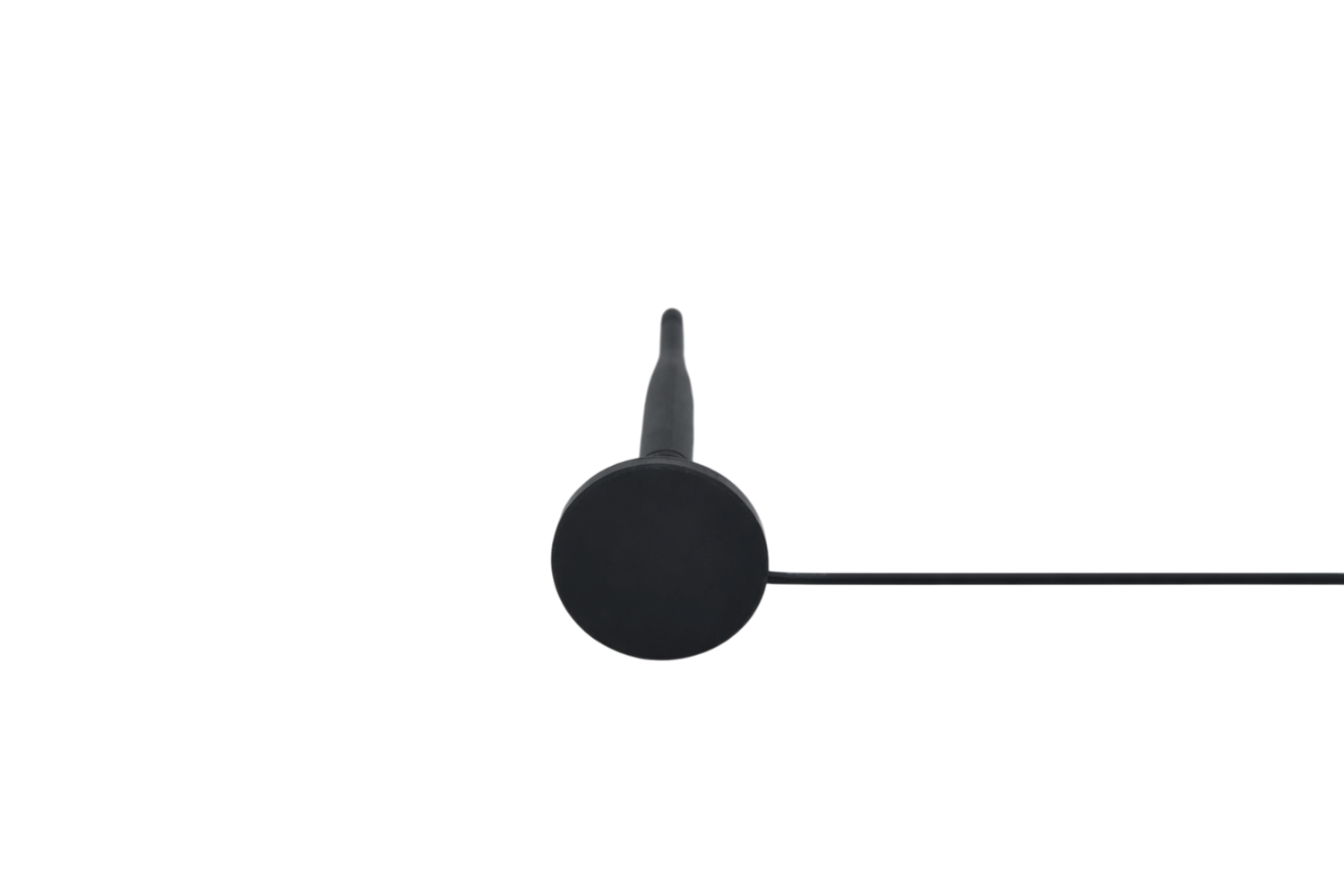

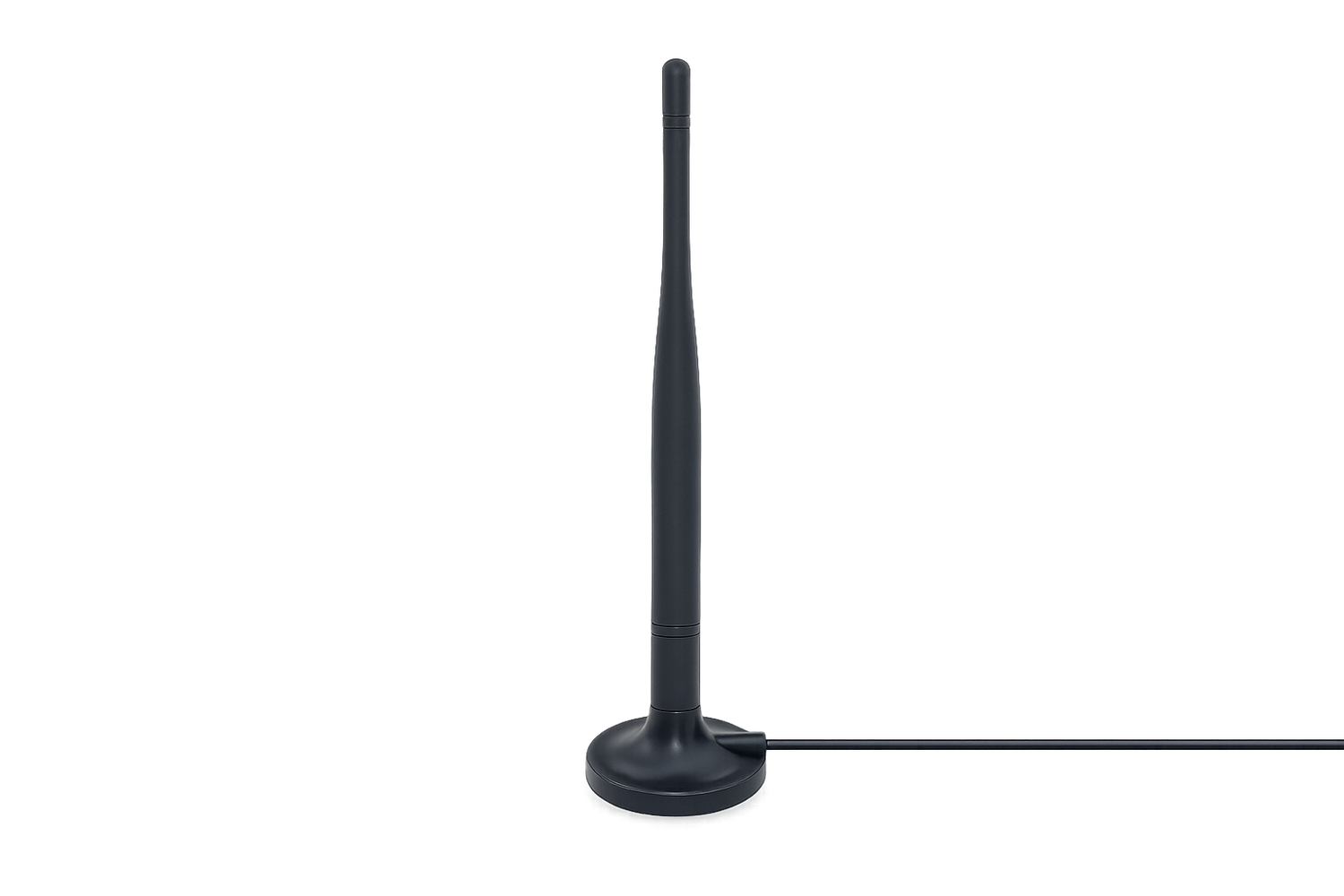

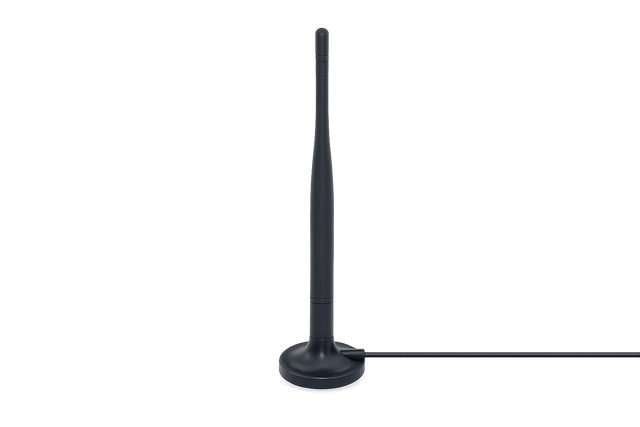

SW19032EB56 SWE002 4G/LTE External Omnidirectional IoT Antenna (2m Cable, SMA-M)

Product Overview: The SW19032EB56 (SWE002) is a high-gain external omnidirectional combo antenna designed for reliable multi-standard wireless connectivity across global 2G, 3G, and 4G LTE network bands. Built for versatile deployment in cellular communication, industrial automation, and M2M infrastructures, this passive antenna provides stable cellular coverage. It features an integrated 2000mm RG174 coaxial cable terminated with a standard SMA male connector for a direct and secure device connection.

Key Features:

• Universal Mobile Network Support: Fully compatible with global 2G, 3G, and 4G LTE frequencies (GSM/UMTS/LTE).

• Omnidirectional Coverage: 360-degree radiation pattern ensures consistent signal transmission and reception without precise alignment.

• Extended Cable Length: Supplied with a 2-meter (2000mm) high-quality RG174 cable for flexible, elevated placement away from interference.

• Plug-and-Play Integration: Features a standard, secure SMA-M connector interface suitable for most industrial routers and gateways.

• Industrial-Grade Durability: Engineered to withstand demanding outdoor and industrial environments with a broad thermal operating range.

Technical Specifications:

• Part Number (PN): SW19032EB56 / SWE002

• Antenna Type: External Combined Passive Antenna

• Mounting Type: External Bracket / Surface Mount (Sucker/Adhesive compatible)

• Connector Type: SMA Male (SMA-M / SMA-J)

• Dimensions: φ 46.5 mm (Diameter) x 185 mm (Height)

• Cable Length: 2000 mm (2 Meters)

• Cable Type: RG174 Coaxial

• Supported Standards: 4G LTE / 3G / 2G (GSM, UMTS)

• Frequency Ranges:

  • Low Band: 824 ~ 960 MHz

  • High Band: 1710 ~ 2690 MHz

• Peak Gain:

  • -0.5 ~ 1.5 dBi (824–960 MHz)

  • -2.5 ~ -0.5 dBi (1710–2690 MHz)

• VSWR: < 3.0

• Impedance: 50 Ohm

• Radiation Pattern: Omnidirectional (360°)

• Polarization: Linear

• Max Input Power: 5W (Up to 25W peak handling)

• Operating Temperature: -40°C to +85°C

• Color: Black

Applications: Optimized for reliable mobile network backup and connectivity setups:

• Industrial IoT nodes, cellular sensors, and M2M automation setups

• Cellular modems, heavy-duty industrial routers, and wireless gateways

• Environmental remote monitoring equipment and smart alarm systems

• External panel or enclosure mount applications for infrastructure control units

Installation Notes: Connect the antenna firmly to the device's antenna port using the threaded SMA-M interface. For maximized signal stability and strength, position the antenna in an elevated or external location, ensuring it is clear of surrounding flat metal barriers that might cause signal obstruction or attenuation.

Frequently Asked Questions: Q1: Can this antenna be deployed outdoors? A1: Yes. The SWE002 features a robust housing and is fully rated to operate reliably within an industrial temperature spectrum of -40°C up to +85°C, making it suitable for both indoor and outdoor enclosures.

Q2: What is the benefit of the integrated 2-meter cable? A2: The 2000mm RG174 cable provides the critical layout flexibility needed to route the antenna out of metal control cabinets or dense interior structures to an open area where cellular signal strength is significantly stronger.
