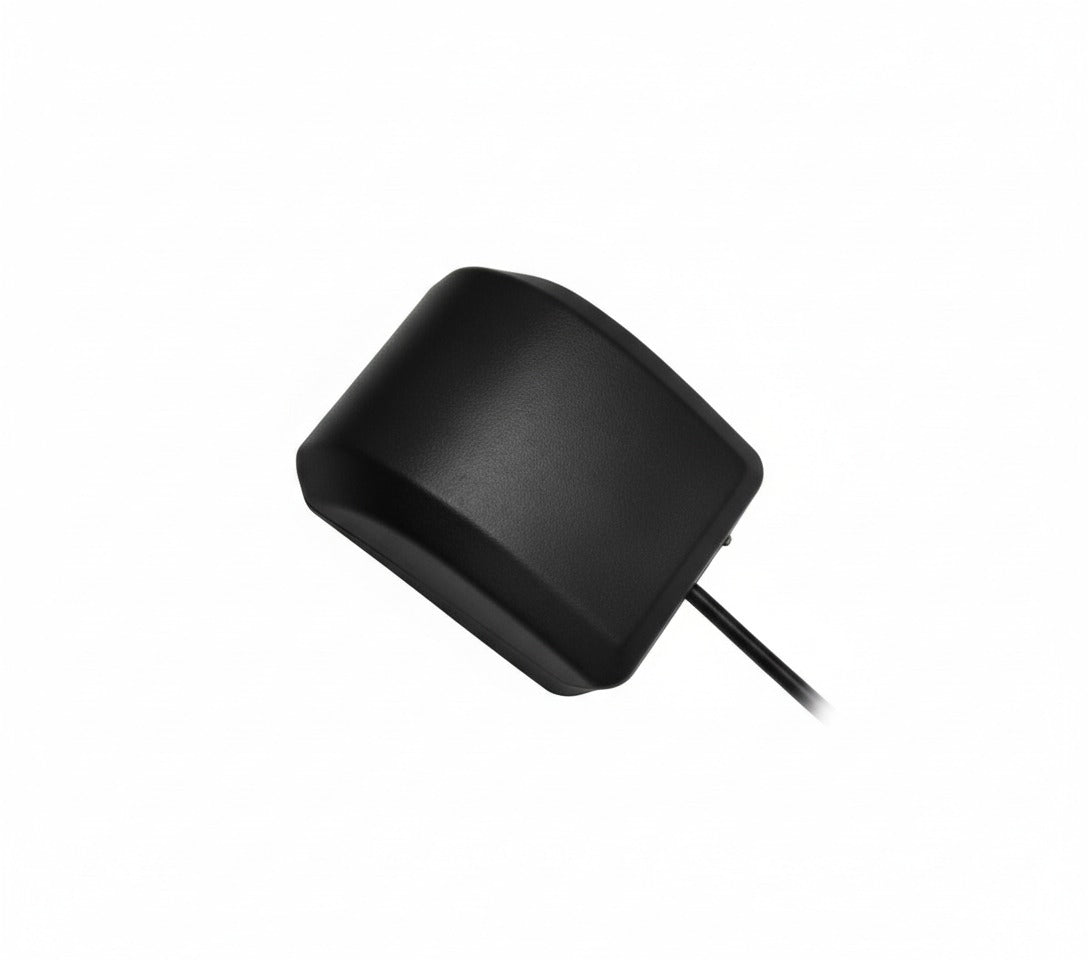

SW19062EB93 SWG010 GNSS Magnet-Mounted Antenna FAKRA-C 500cm

Product Overview:

The SW19062EB93 is a robust magnet-mounted GNSS antenna designed for GPS, GLONASS, GALILEO, and BEIDOU systems. Its strong magnetic base ensures secure attachment to metal surfaces, making it ideal for automotive and industrial applications.

Key Features:
- Magnet mount for secure attachment
- Supports GPS, GLONASS, GALILEO, and BEIDOU systems
- Long cable length for flexible installation
- RHCP polarization for enhanced GNSS signal reception
- Durable design suitable for outdoor use

Technical Specifications:
- Mounting Type: Magnet + Back Glue
- Connector Type: FAKRA-C (Right-Angle)
- Dimensions: 50.9(L) x 38.6(W) x 18(H) mm
- Cable Length: 5000 mm
- Operating Temperature: -40°C to +85°C
- Frequency Range: 1559 MHz / 1575 MHz / 1602 MHz
- Colour: Black
- Active Gain: 25 dB @ 3.6 V
- Impedance: 50 Ohm
- Polarization: RHCP
- Max Input Power: N/A

Installation Notes:

Place the antenna on a flat metal surface, ensuring the magnet makes full contact for secure attachment. Position the antenna in a location with a clear view of the sky for optimal signal reception. Avoid placing it near large metal objects that could block the signal.

Frequently Asked Questions:

Q1: How does this antenna attach to a vehicle?
A1: The antenna features a strong magnet for secure attachment to metal surfaces, making it ideal for vehicle installations.

Q2: Is this antenna suitable for outdoor environments?
A2: Yes, it is designed to withstand outdoor conditions and operates reliably in temperatures ranging from -40°C to +85°C.

Inquire for customization options eg connector, cable length, and bulk quantity.
