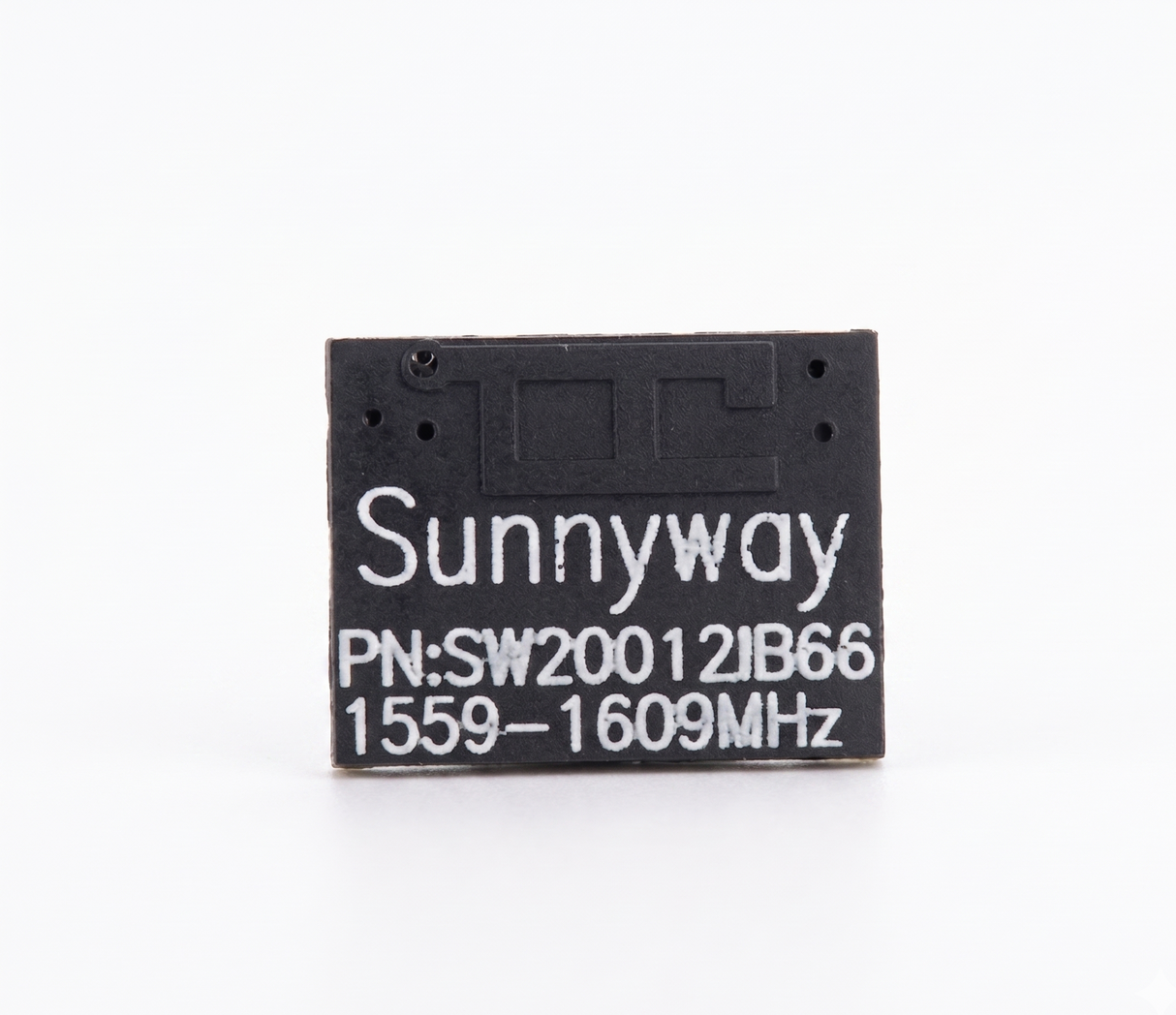

SW200121B66 SWD006 GNSS (GPS/GLONASS/Galileo/Beidou) Ultra-Flat SMD Antenna

Product Overview: The SW200121B66 (SWD006) is an ultra-flat, high-efficiency SMD GNSS antenna designed for high-precision global positioning and tracking applications. Featuring an incredibly compact profile of just 7.0 x 5.8 x 0.4 mm, it is engineered for seamless integration into space-constrained wireless devices. This passive patch antenna provides complete coverage for all major global satellite navigation constellations, including GPS, GLONASS, Galileo, and Beidou.

Key Features:

• Universal GNSS Coverage: Full compatibility with GPS, GLONASS, Galileo, and Beidou satellite networks.

• Ultra-Low Profile Design: Tiny footprint of 7.0 x 5.8 mm and an ultra-thin height of just 0.4 mm.

• Outstanding Positioning Efficiency: Reaches an impressive radiation efficiency of up to 71.6% with a peak gain of up to 4.4 dBi.

• Standard SMD Assembly: Fully compliant with automated pick-and-place SMD reflow soldering processes.

• Robust Industrial Build: Operates reliably in harsh thermal environments ranging from -40°C up to +85°C.

Technical Specifications:

• Part Number (PN): SW200121B66 / SWD006

• Mounting Type: SMD (Surface Mount Device)

• Dimensions: 7.0 (L) x 5.8 (W) x 0.4 (H) mm

• Material: High-grade PCB

• Supported Standards: GPS / GLONASS / GALILEO / BEIDOU

• Frequency Range: 1559 ~ 1609 MHz

• Peak Gain: 3.4 ~ 4.4 dBi

• Efficiency: 59.8% ~ 71.6%

• VSWR: < 1.4

• Return Loss: < -16.5 dB

• Impedance: 50 Ohm

• Radiation Pattern: Omni-Directional

• Polarization: Linear

• Max Input Power: 5W

• Operating Temperature: -40°C to +85°C

Applications: Perfect for miniature tracking and navigation hardware:

• Fleet asset trackers, logistics monitors, and personal locators

• Industrial drones, UAVs, and autonomous robotics

• Compact wearable electronics and portable smart devices

• Embedded network hardware requiring time-synchronization and positioning

Layout & Installation Notes:

• PCB Placement: For optimal performance, the antenna should ideally be placed at the center of the host PCB's longest edge.

• Matching Circuit: Requires a simple 3-component matching network architecture close to the feed to ensure precise tuning (typically utilizing a 2.2pF tuning capacitor at E2).

• Pin Configuration: The antenna features 6 pads; Pin 2 is the active RF Feed, while Pins 3, 4, and 6 are Grounding connections. Pins 1 and 5 are non-conductive and used strictly for mechanical strength.

Frequently Asked Questions: Q1: Does this antenna require an external ground plane to function? A1: Yes. To achieve the high efficiency and peak gain specified in the datasheet, this SMD GNSS antenna must be integrated with an appropriate host PCB layout (ideally placed at the center of the longest edge) and a matching circuit.

Q2: Can this antenna receive multi-constellation signals simultaneously? A2: Yes. The wide frequency range of 1559 MHz to 1609 MHz covers the essential bands for GPS, GLONASS, Galileo, and Beidou, allowing modern GNSS receivers to utilize multiple satellite networks at the same time for faster and more accurate positioning.
