Description
Product Overview:

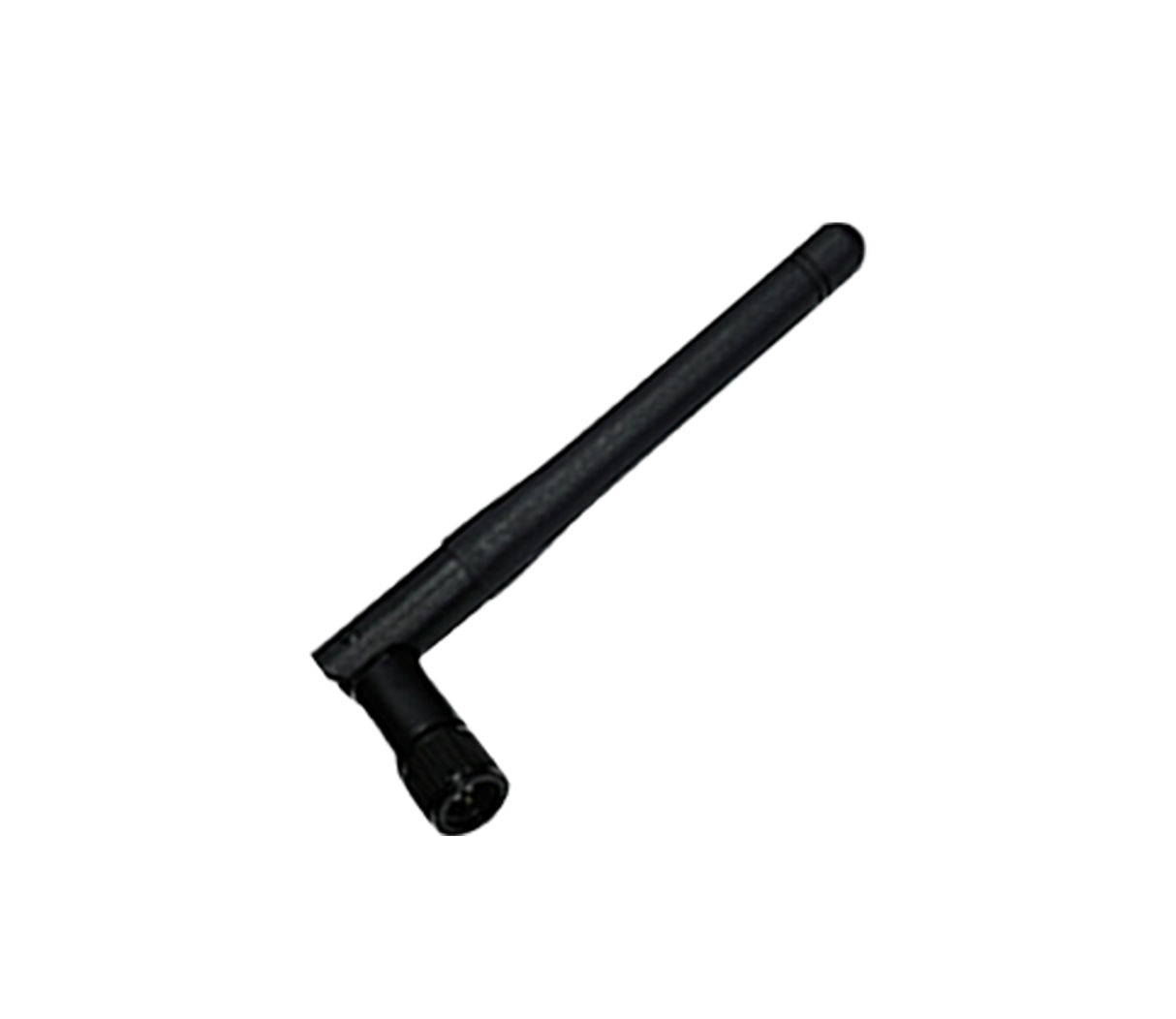

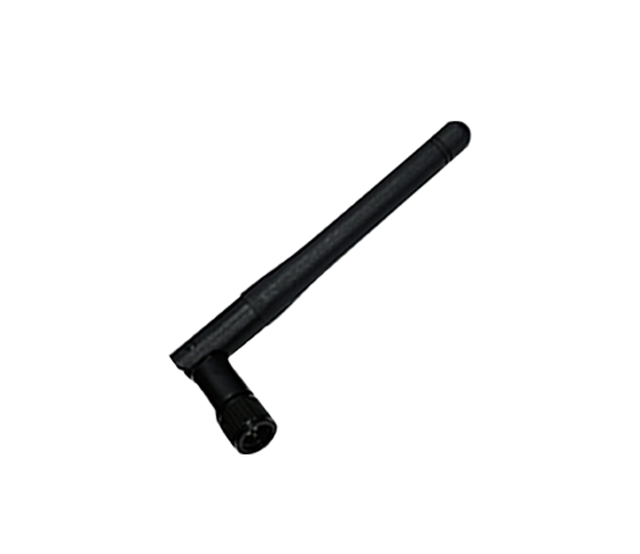

The SW20023EB56 (SWE030) is a high-performance external rubber stick antenna designed for ISM and LoRa applications. Its compact and robust design makes it ideal for IoT devices, smart metering, and industrial communication networks requiring reliable connectivity in the 868MHz and 915MHz bands.
Key Features:
- Supports LoRa and ISM bands (868MHz / 915MHz)
- Compact rubber stick design with SMA-M connector
- Reliable signal quality with linear polarization
- Robust construction suitable for industrial environments
Technical Specifications:
- Mounting Type: Connector Mount
- Connector Type: SMA-M
- Dimensions: φ10 x 109 (H) mm
- Operating Temperature: -40°C to +85°C
- Frequency Range: 868 MHz / 915 MHz
- Colour: Black
- Peak Gain: 2.19 dBi @ 868 MHz / 1.96 dBi @ 915 MHz
- VSWR: 1.74 @ 868 MHz / 1.51 @ 915 MHz
- Impedance: 50 Ohm
- Polarization: Linear
- Max Input Power: 25W
Installation Notes:
Mount the antenna directly onto the device's SMA female connector, ensuring a secure fit. Position the antenna vertically for optimal omnidirectional coverage.
Frequently Asked Questions:
Q1: What are the primary applications for this antenna?
A1: It is ideal for LoRaWAN, Sigfox, IoT smart city applications, and industrial automated monitoring systems.
Q2: Does this antenna require an additional cable?
A2: No, it is a connector-mount antenna designed to screw directly onto a matching SMA connector.
Inquire for customization options eg connector, cable length, and bulk quantity.
