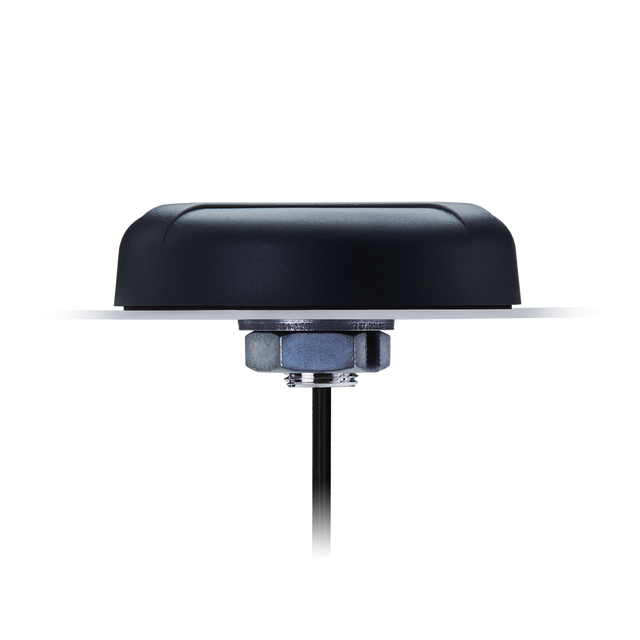

A.120.A.101111 Antenna External GNSS permanent mount Bolt SMA-M 100cm IP67 for Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Telematics & Asset Tracking

This active multi-band GNSS antenna is designed to support the full GNSS spectrum plus L-Band correction services, helping deliver higher location accuracy and more stable positioning in challenging environments.

• Dual-stage LNA: Supports robust GNSS reception and improved reliability.
• All-band GNSS + L-Band support: Ideal for high-precision positioning workflows, including RTK base/rover deployments.
• Permanent-mount housing: Built for durable external installations where consistent performance is required.

Typical applications include: Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, and Telematics & Asset Tracking.

Connector & Cable

• Connector Type: SMA(M)
• Cable Length: 100cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: External
Mounting: Screw Mount, Permanent Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Ø94 x 26 mm
Weight: 283.5g

GNSS (Active)

Frequency: 1176.45MHz - 1602MHz
GNSS Type: Active GNSS
GNSS Bands: L1/L2/L5/L6/L-Band
Polarization: RHCP
Impedance: 50Ω
VSWR: 1.5:1
Gain (Max): 30.2
Voltage Range (Typ.): +1.8 ~ +5.5V
Current Draw (Typ.): 16-21 mA
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG-174
