Description

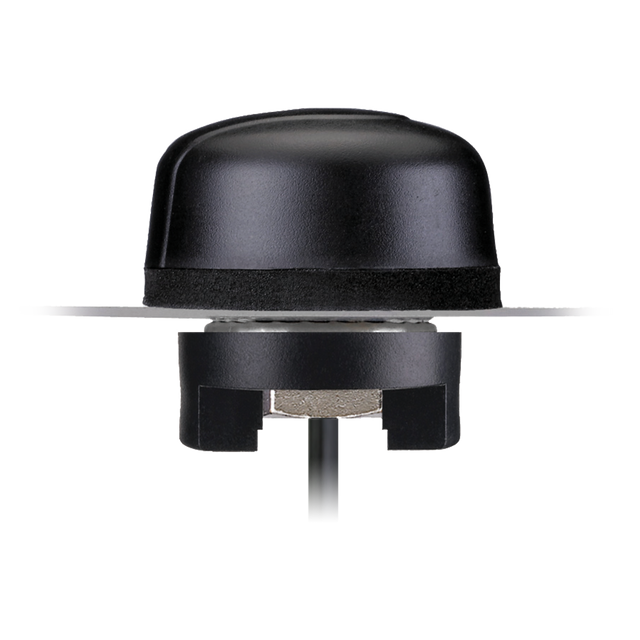

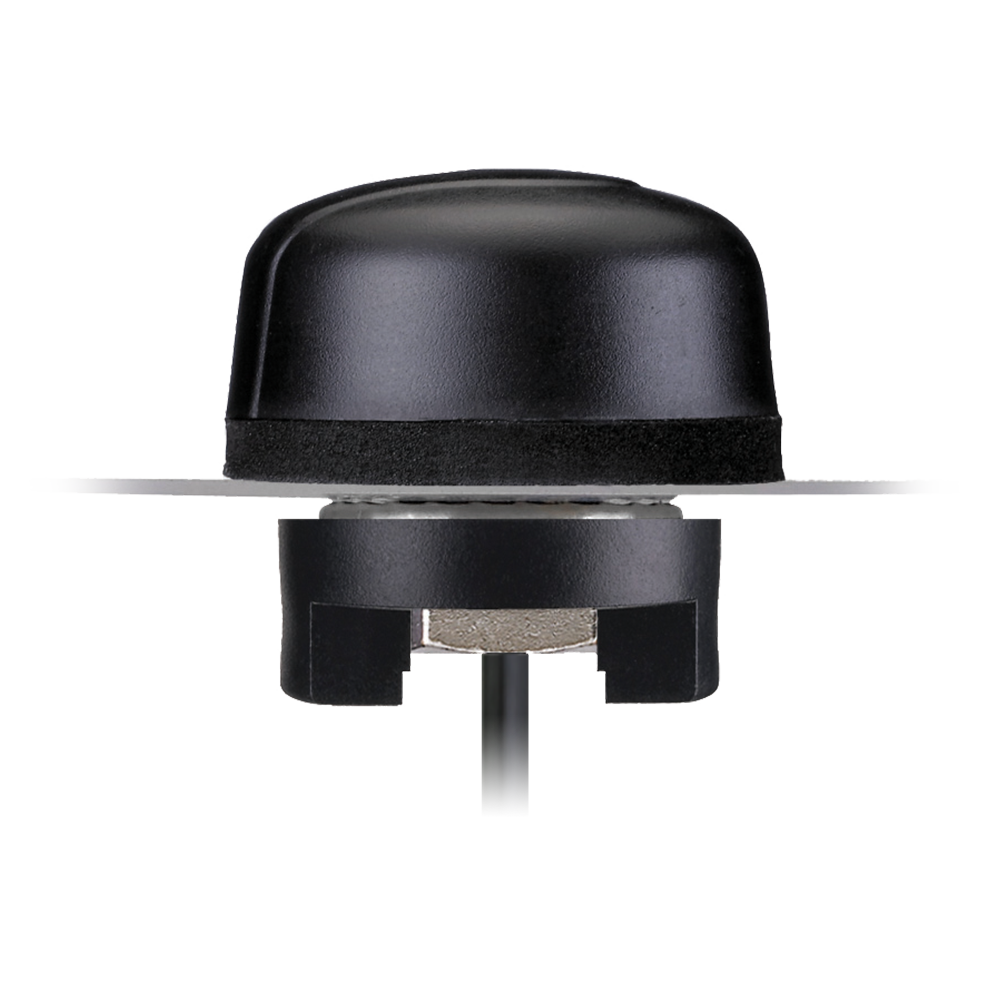

The Hercules A.40 is a high-performance permanent-mount GNSS antenna designed for external use on vehicles and outdoor assets. It features a heavy-duty metal base and durable UV-resistant housing for dependable positioning performance in harsh environments.
- Rugged design: heavy-duty construction with a durable enclosure for demanding field use
- External mounting: permanent/thread-style mounting suited to vehicles and outdoor equipment
- Installation-friendly: no ground plane required
- Use cases: remote asset tracking, navigation, and telematics devices
Cable lengths, cable types, and connector options are fully customizable.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP65
Dimensions: 48*48*29mm
Weight: 151g
GNSS (Active)
Frequency: 1575.42MHz - 1610MHz
Standards: GPS/GLONASS/Galileo
GNSS Type: Active GNSS
GNSS Bands: L1
Polarization: RHCP
Impedance (Ohm): 50
VSWR: 2:1
Gain (Max): 27
Connector Type: SMA-M (Straight)
Cable Length: 300cm
Cable Type: RG-174
