Description

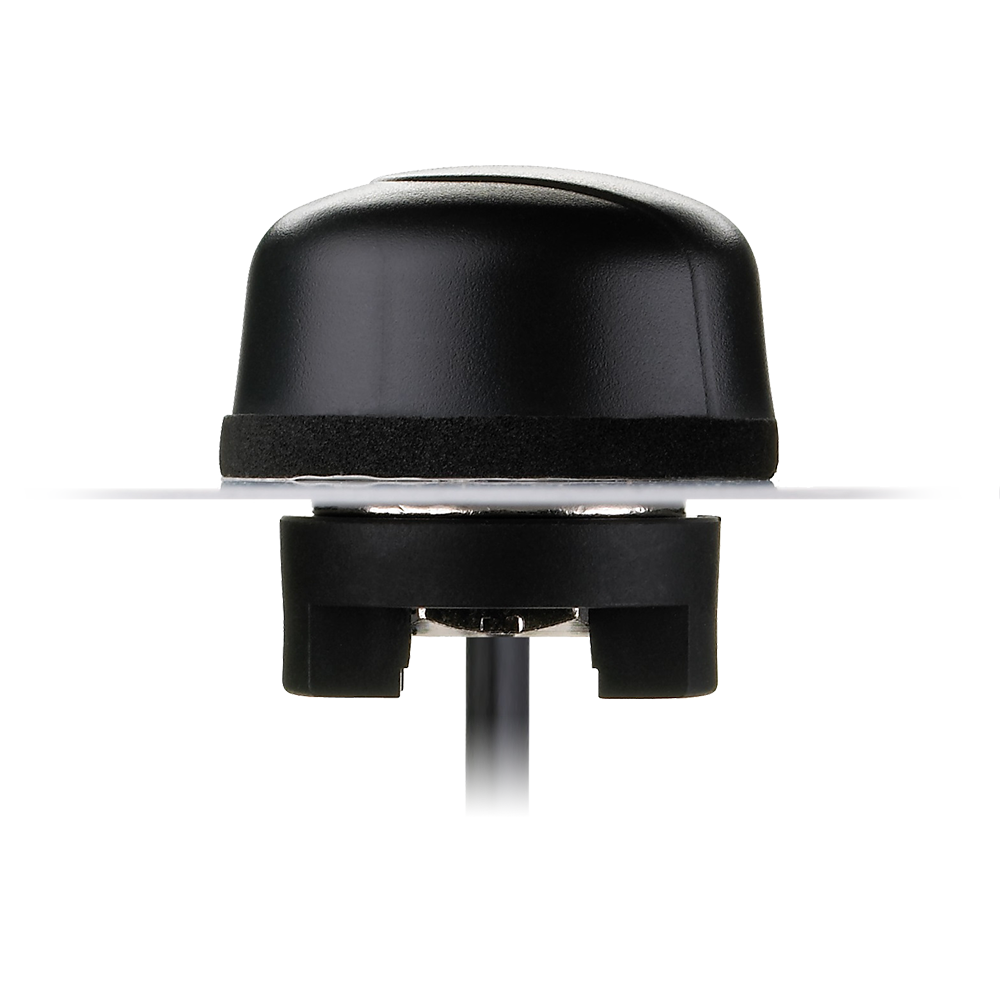

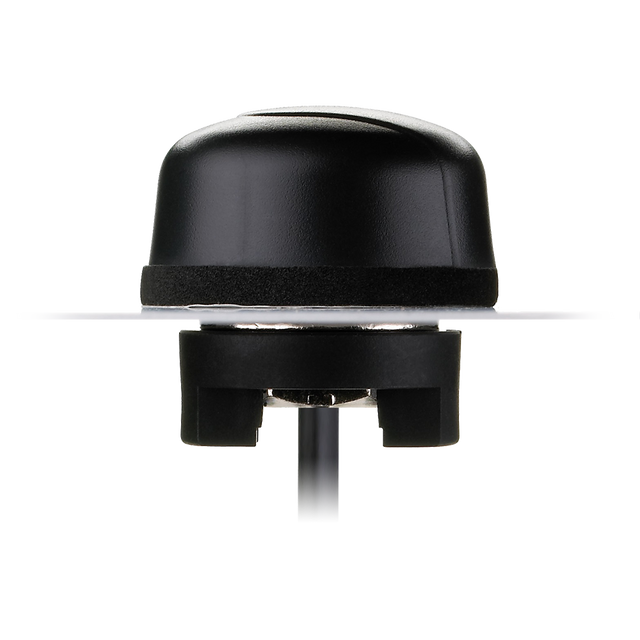

The Hercules A.41 is an active GNSS permanent-mount antenna designed for robust, reliable positioning in demanding environments. Its rugged housing and high-gain LNA architecture support improved location accuracy and faster signal reacquisition, making it well suited to tough vehicle and equipment installations.
- Multi-constellation GNSS support: GPS, GLONASS, Galileo, and BeiDou compatibility for dependable positioning.
- High-performance active design: Integrated amplification and filtering to help maintain stable GNSS reception near other transmitters.
- Rugged, low-profile enclosure: Built for heavy-duty use cases where durability and resistance to exposure matter.
Typical use cases: city buses, agricultural and industrial vehicles, and heavy equipment.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP65
Dimensions: 48*48*29mm
Weight: 157g
GNSS (Active)
Standards: GPS/GLONASS/Galileo/BeiDou
Frequency: 1559MHz - 1610MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 2 (max)
Gain (Max): 28
Connector Type: SMA Male
Cable Length: 300cm
Cable Type: RG-174
