Description

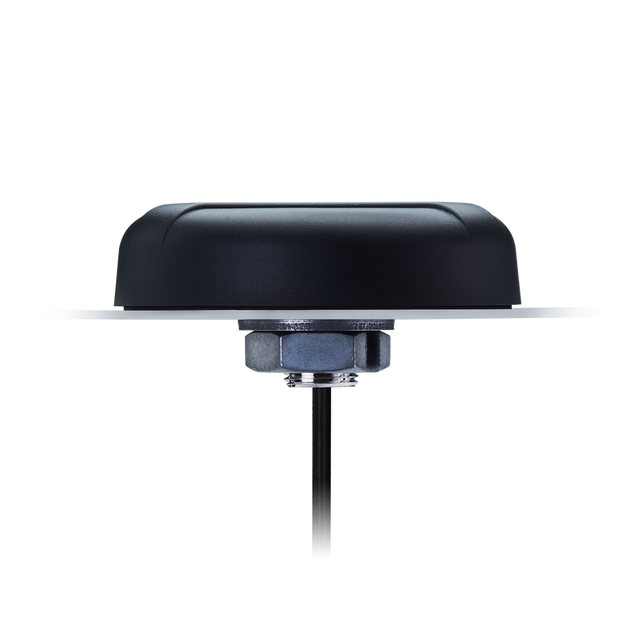

This low-profile, high-precision dual-band GNSS antenna is designed for high-accuracy positioning in demanding environments. Its stacked patch structure helps support strong RHCP reception across L1 and L2 bands, while the front-end filtering and low-noise amplification help maintain signal quality in the presence of nearby interference.
The robust, vandal-resistant housing is built for permanent installations and supports GPS, GLONASS, Galileo, and BeiDou for improved positioning performance in applications that require reliable multi-constellation coverage.
- Use cases: agritech, autonomous routing, telematics
- Design: low-profile, permanent mount form factor
- Protection: waterproof enclosure for harsh environments
- Customization: custom cable lengths and connector types available
Connector & Cable
- Connector Type: SMA(M)ST
- Cable Length: 100cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Ø94.3 x H25.4mm
Weight: 250g
GNSS (Active)
Frequency: 1227MHz - 1575.42MHz
GNSS Bands: L1/L2
Supported Constellations: GPS, GLONASS, Galileo, BeiDou
Polarization: RHCP
Impedance: 50Ω
VSWR: 1.92
Gain (Max): 27.88
Input Voltage: 1.8V – 5V
Connector Type: SMA(M)ST
Cable Length: 100cm
Cable Type: RG-174
