Description

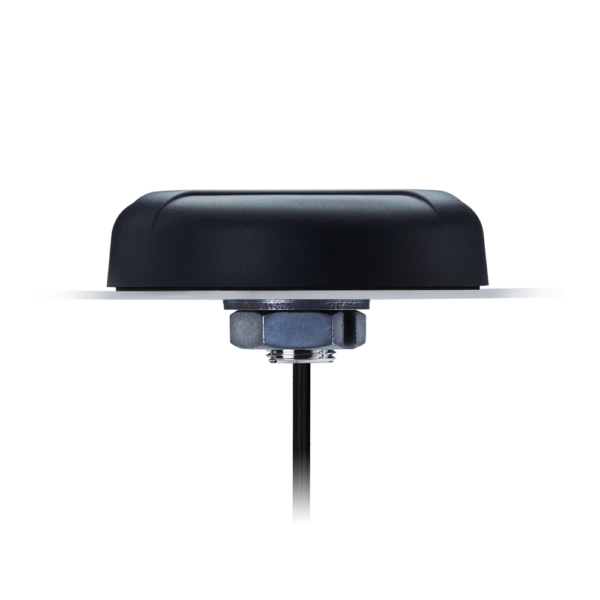

Bolt is a high-gain, dual-band GNSS L1/L5 permanent-mount antenna designed to stay operational in challenging RF environments. It features very high out-of-band rejection and is built to handle large bursts of nearby transmitter power, helping protect GNSS receiver performance where interference is a concern.
- High out-of-band rejection to reduce interference and prevent receiver overdrive
- Lightning induced surge protection for improved robustness
- Low-profile, vandal-resistant design with a UV resistant enclosure
- High-efficiency patch design with internal LNAs and SAW filtering to help maintain signal quality
- Wideband input voltage support
Typical applications include:
- Commercial Transportation
- Asset and Container Tracking
- Small Cell GNSS Towers
- Precision Agriculture
Cable lengths and connector types are customizable. Contact your regional customer support team for further information.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 100cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40 C to +85 C
Antenna Technologies: Patch
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Diameter: 94.3mm, Height: 25.4mm
Weight: 283.5g
GNSS (Active)
Frequency: 1160MHz - 1610MHz
GNSS Bands: L1/L5
Impedance: 50a9
Polarization: RHCP
VSWR: 1.92
Gain (Max): 30
Max. input power: 5 W
Radiation Pattern: Omni-Directional
Connector Type: SMA(M) ST
Cable Length: 100cm
Cable Type: RG-174
