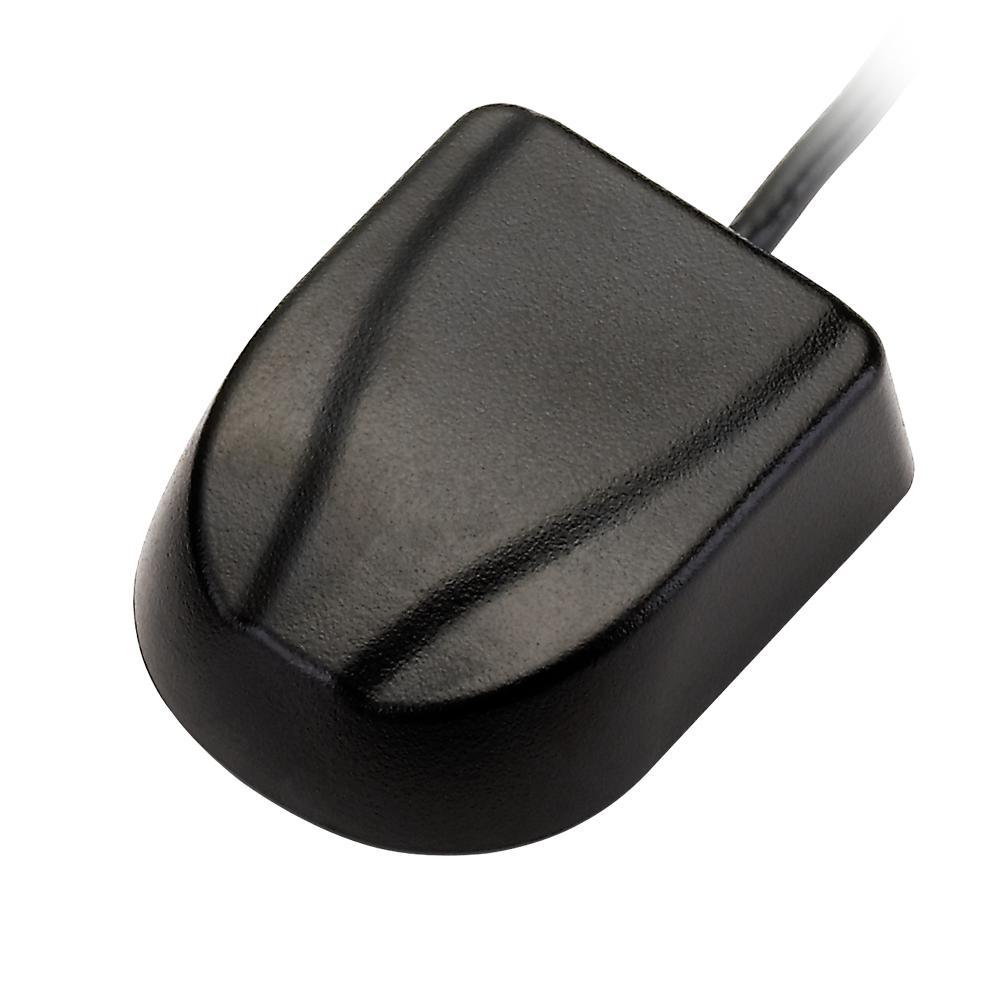

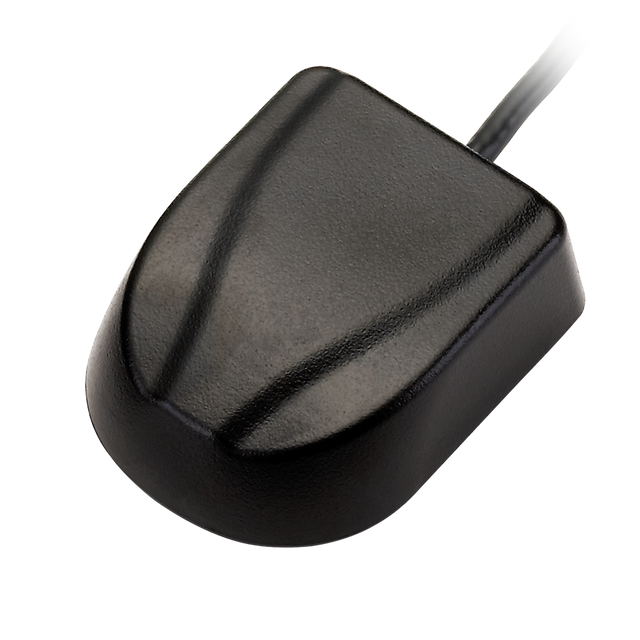

AA.105.301111 Antenna External GNSS magnetic mount Titan SMA-M 300cm IP67 for Commercial Transportation, E-Scooters/Electric Vehicles, Robotics and Autonomous Vehicles, Asset Tracking

Titan AA.105 is a compact external active GNSS antenna designed for robust, covert installations where durability and small size are critical. Its magnetic mounting makes it quick to deploy on suitable surfaces, while the waterproof enclosure supports reliable operation in harsh environments.

• Magnetic mount for fast installation and removal
• Covert, stylish low-visual-impact design for discreet deployments
• Wide band input voltage to support a range of device power configurations
• Adjustable gain to help optimize performance for different installations
• IP67 waterproof for outdoor/vehicle exposure and water-ingress risk areas

Typical applications include: Commercial Transportation, E-Scooters/Electric Vehicles, Robotics and Autonomous Vehicles, and Asset Tracking.

An adhesive-mount variant is also available: AA.108.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 43.3 x 32.7 x 14mm
Weight: 64g

GNSS (Active)

Frequency: 1575.42MHz
GNSS Type: Active GNSS
GNSS Bands: L1
Impedance: 50 Ω
Polarization: RHCP
VSWR: 1.92
Peak Gain (dBi): 0.99
Efficiency (%): 50.51
Axial Ratio (dB): 3dB Typ.
LNA Gain (dB): 29.55
Noise Figure (dB): 1.89
P1dB (dBm): 35.51
Current Consumption (mA): 6
Vin: 1.8~5.5V
Gain (Max): 30
Connector Type: SMA(M) Straight
Cable Length: 300cm
Cable Type: RG-174
