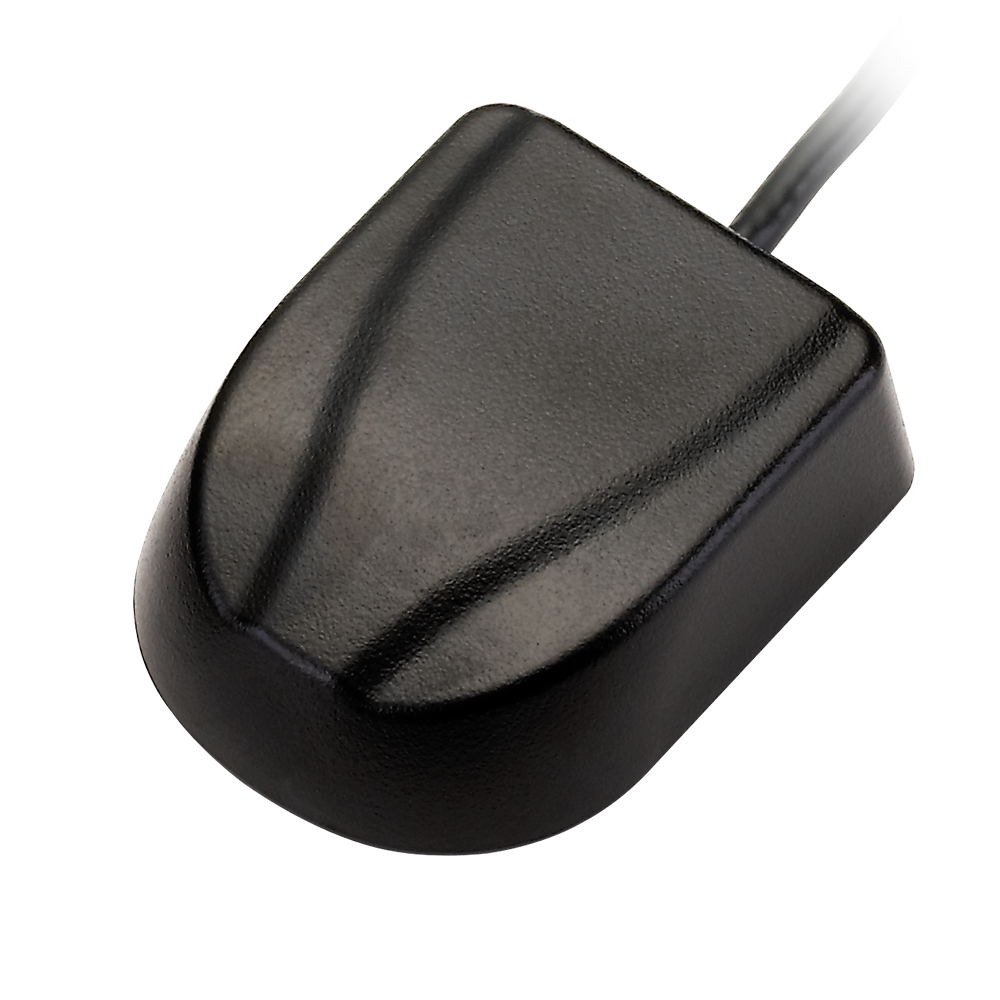

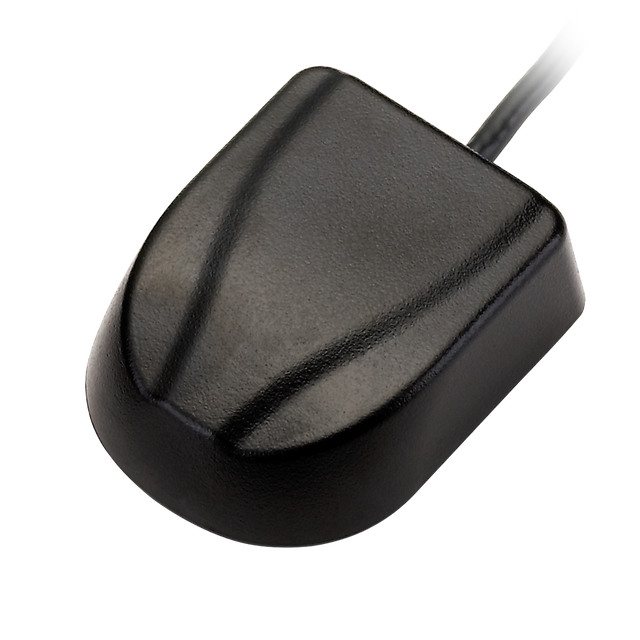

AA.105.301621 Antenna External High-Gain GNSS magnetic mount Titan FAKRA Code C 300cm RG-174 IP67 for Commercial Transportation, E-Scooters/Electric Vehicles, Robotics and Autonomous Vehicles, Asset Tracking

The Titan AA.105 is a compact, rugged external active GNSS antenna designed for discreet installations where durability and small size are critical. Its magnetic mounting enables fast placement on suitable metal surfaces, making it well-suited for mobile deployments and temporary or covert setups.

• External active GNSS performance for reliable GPS/Galileo reception
• Magnetic mount for quick installation and removal
• IP67 waterproof rating for demanding outdoor and vehicle environments
• Ideal for telematics and M2M use cases where robust positioning is required

Typical use cases include: Commercial Transportation, Fleet Management, Asset Tracking, E-Scooters/Electric Vehicles, and Robotics and Autonomous Vehicles.

An adhesive mount variant is also available: AA.108.

Connector & Cable

• Connector Type: FAKRA Code C Blue (SMB(F))
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 43.3 x 32.7 x 14 mm
Weight: 64g

GNSS (Active)

Standards: GPS, Galileo
GNSS Bands: L1
Frequency: 1575.42MHz
Impedance: 50 Ω
Polarization: RHCP
VSWR: 1.5
Gain (Max): 30
Connector Type: Fakra Code C Blue SMB(F)
Cable Length: 300cm
Cable Type: RG-174
