Description

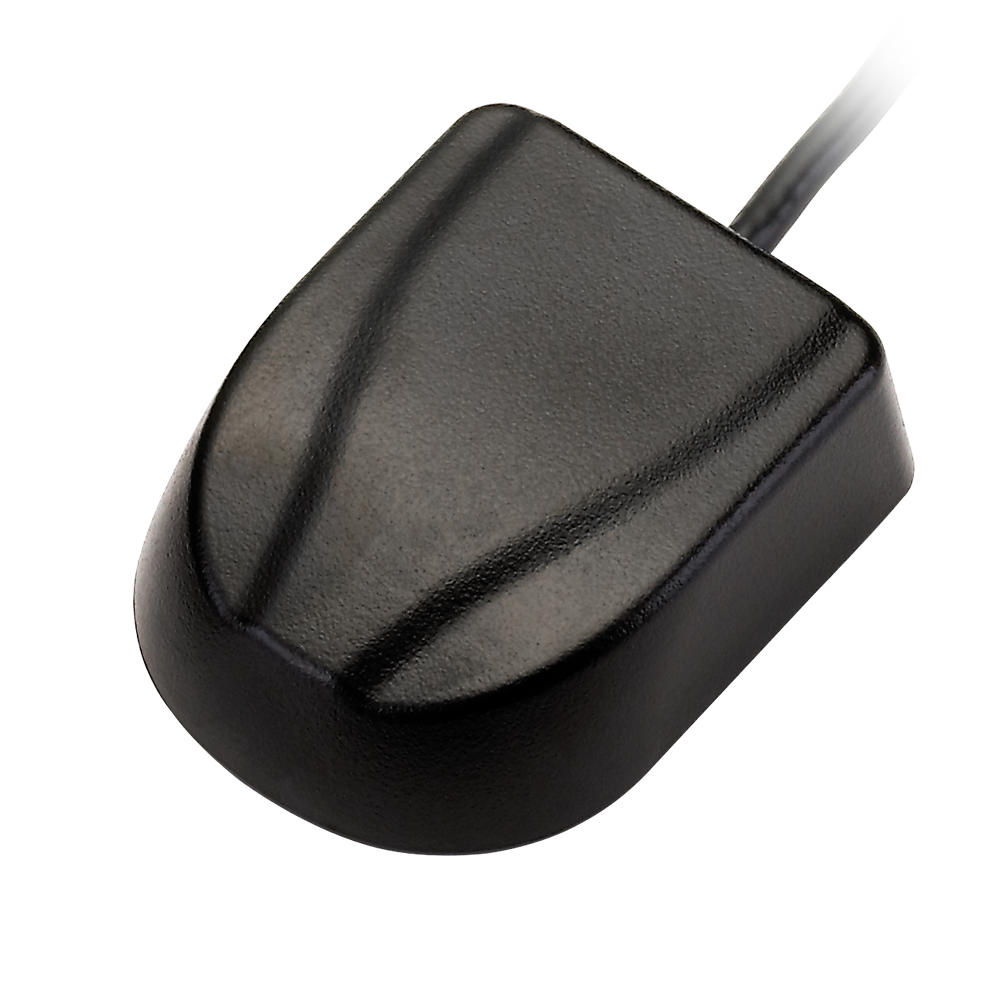

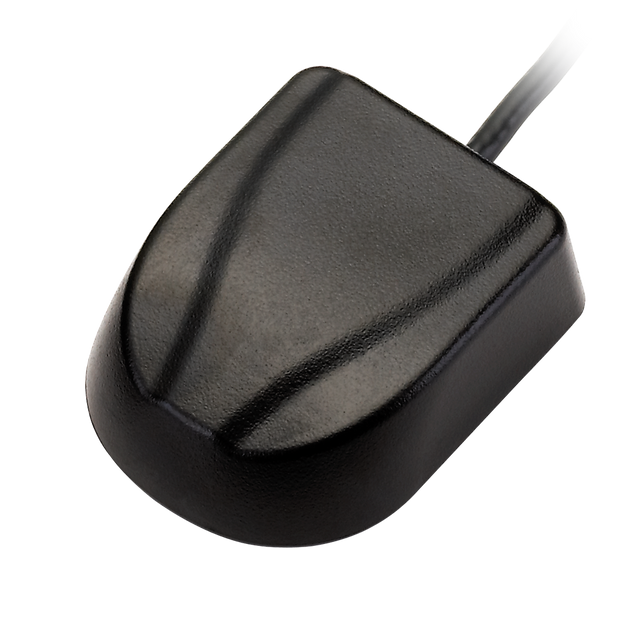

This compact external adhesive antenna is designed for robust, covert installations where durability and small size are paramount. It supports GPS/Galileo positioning and is well-suited to telematics and M2M deployments, including commercial vehicle installations for fleet management.
- Rugged enclosure: IP67 rated for demanding environments
- Covert, low-visual-impact design: ideal for discreet installations
- Secure mounting options: magnetic mount plus high-grade double-sided tape
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic Mount, Adhesive Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 43.3 x 32.7 x 14 mm
Weight: 64g
GNSS (Active)
Frequency: 1575.42MHz
GNSS Bands: L1
Centre Frequency: 1575.42±3MHz
Bandwidth: 10MHz
Polarization: RHCP
Impedance: 50Ω
VSWR: 2
Axial Ratio: 3dB typ.
Gain @Zenith: 2dBic typ.
LNA Gain: 30dB typ.
Gain at Connector: 28.4dB
DC Power Input: 2.7-5V
Noise: 1.5dB typ
Connector Type: SMA(M) Straight
Cable Length: 300cm
Cable Type: RG-174
