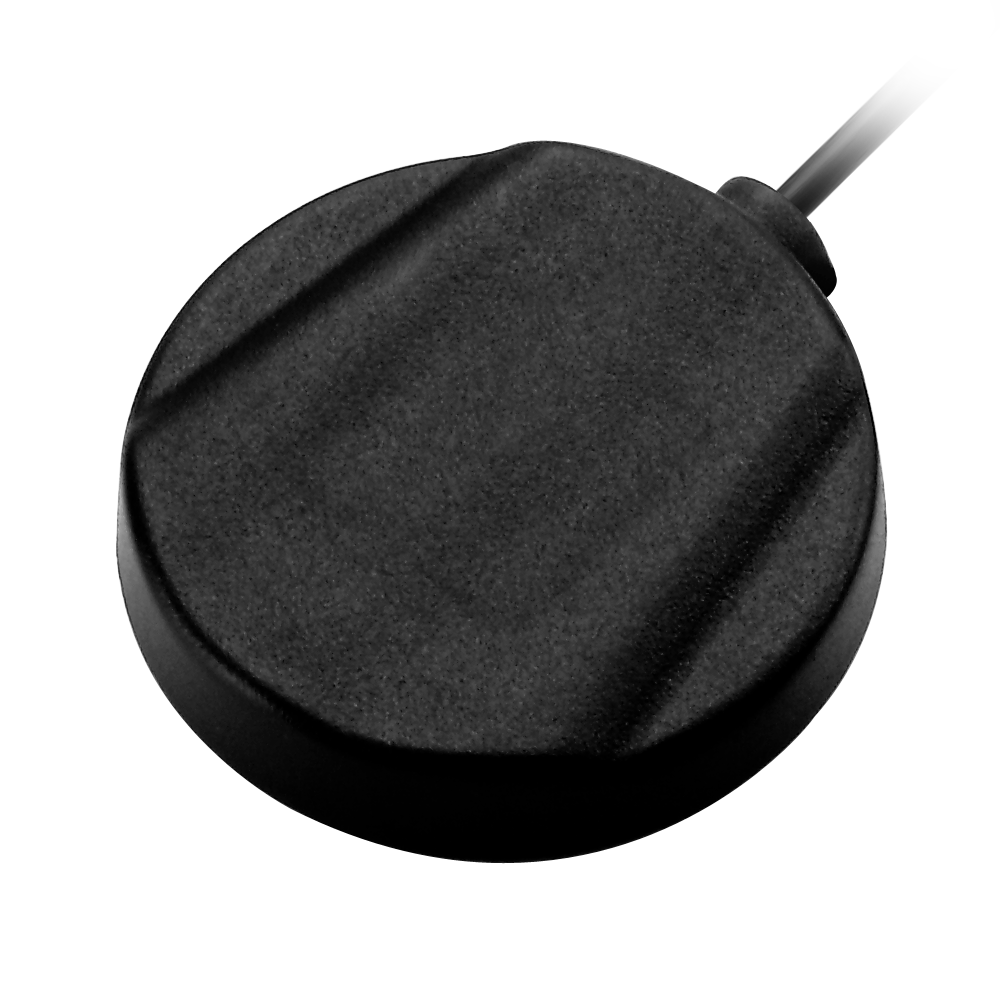

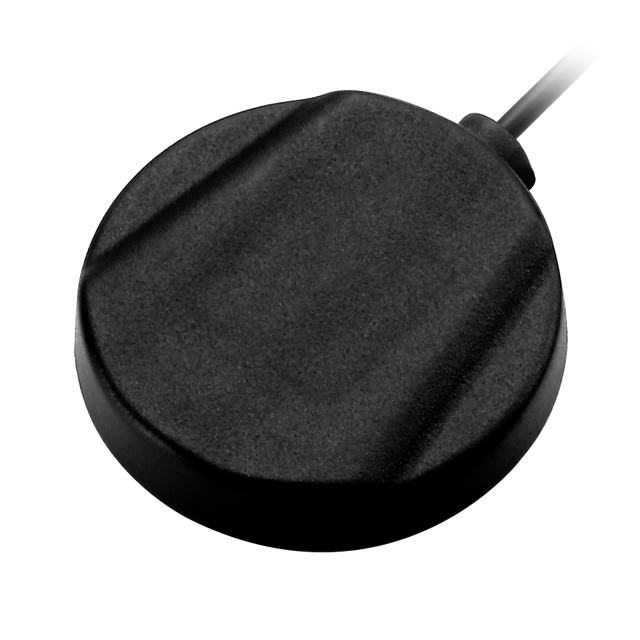

AA.107.301111 Antenna External Low-Profile High-Gain GNSS adhesive mount Stingray SMA-M 300cm RG-174 IP65 for In-vehicle GNSS systems

Stingray is a super low-profile adhesive-mount GNSS antenna designed to support high positioning accuracy by combining signals from GPS, GLONASS, and Galileo systems. Its compact, covert form factor makes it well-suited for discreet installations where space is limited, such as mounting on glass or placement out of sight under a vehicle dashboard.

• Low-profile housing for covert, space-constrained installs
• Designed for multi-constellation GNSS reception (GPS/GLONASS/Galileo)
• Adhesive mounting for quick placement on smooth surfaces

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP65
Dimensions: 55 x 51.7 x 10.8mm
Weight: 64g

GNSS (Active)

Frequency: 1575.42MHz - 1610MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 28
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
