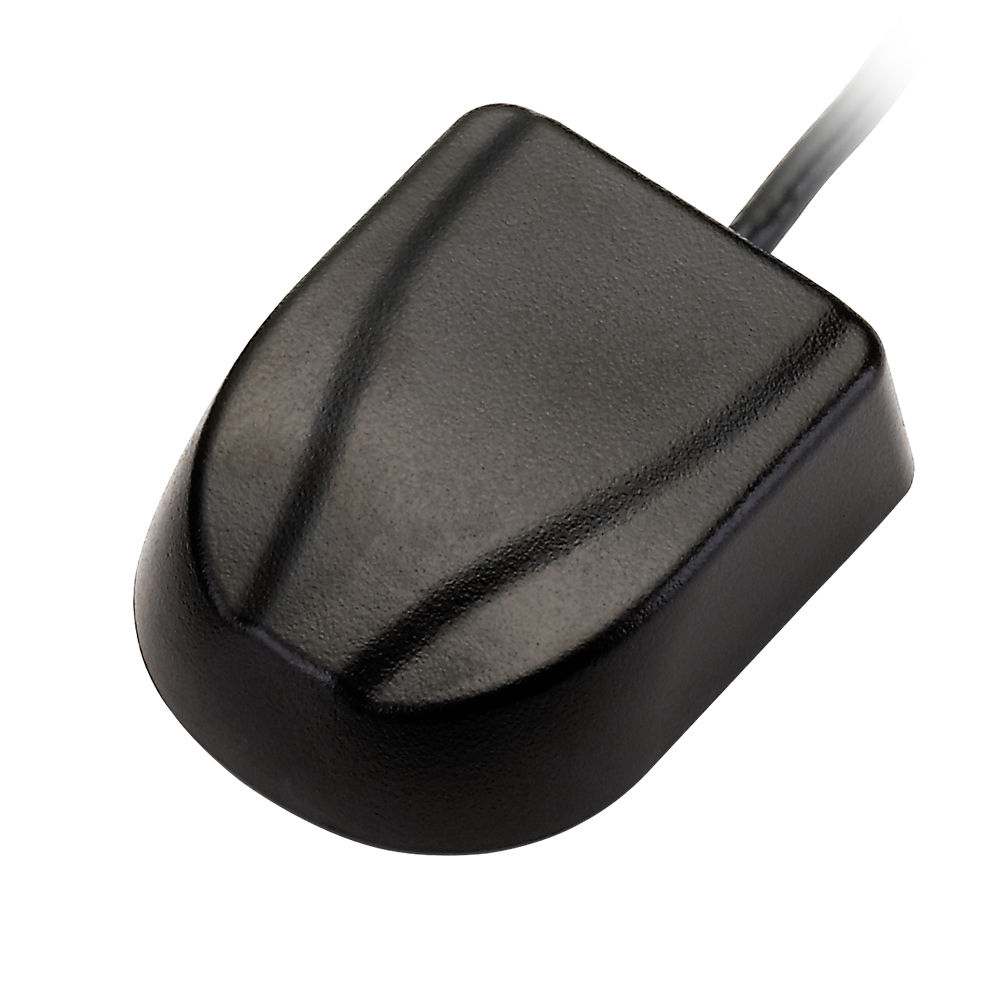

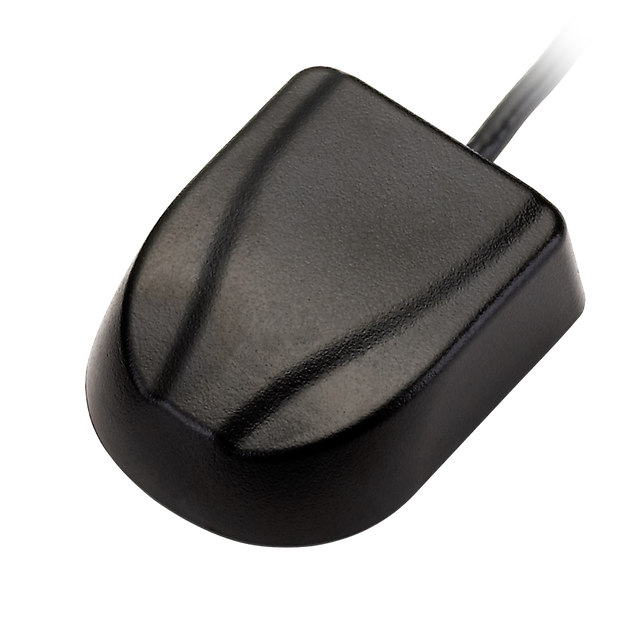

AA.108.301111 Antenna High-Gain External GNSS adhesive mount Titan SMA-M 300cm IP67 for Telematics, M2M, Fleet Management, Navigation Devices

Titan AA.108 is a compact, robust external active GNSS antenna designed for durable, covert installations where small size and reliability are critical. It supports GPS/GALILEO reception and is well-suited to environments that require dependable positioning performance.

• Rugged protection: IP67-rated waterproof enclosure for harsh environments
• Automotive-focused design: built for demanding vehicle installations and durability requirements
• Simple integration: adhesive mounting for quick, low-profile placement
• Use cases: telematics, M2M deployments, commercial vehicle fleet management, consumer navigation devices, and speed trap detectors

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 43.3 x 32.7 x 14 mm
Weight: 64g

GNSS (Active)

Frequency: 1575.42MHz
GNSS Bands: L1
Standards: GPS/GALILEO
Impedance: 50Ω
VSWR: 2
Polarization: RHCP
Gain (Max): 31
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
Connector Body Style: Straight
Connector Polarity: Normal

Download Datasheet PDF
