Description

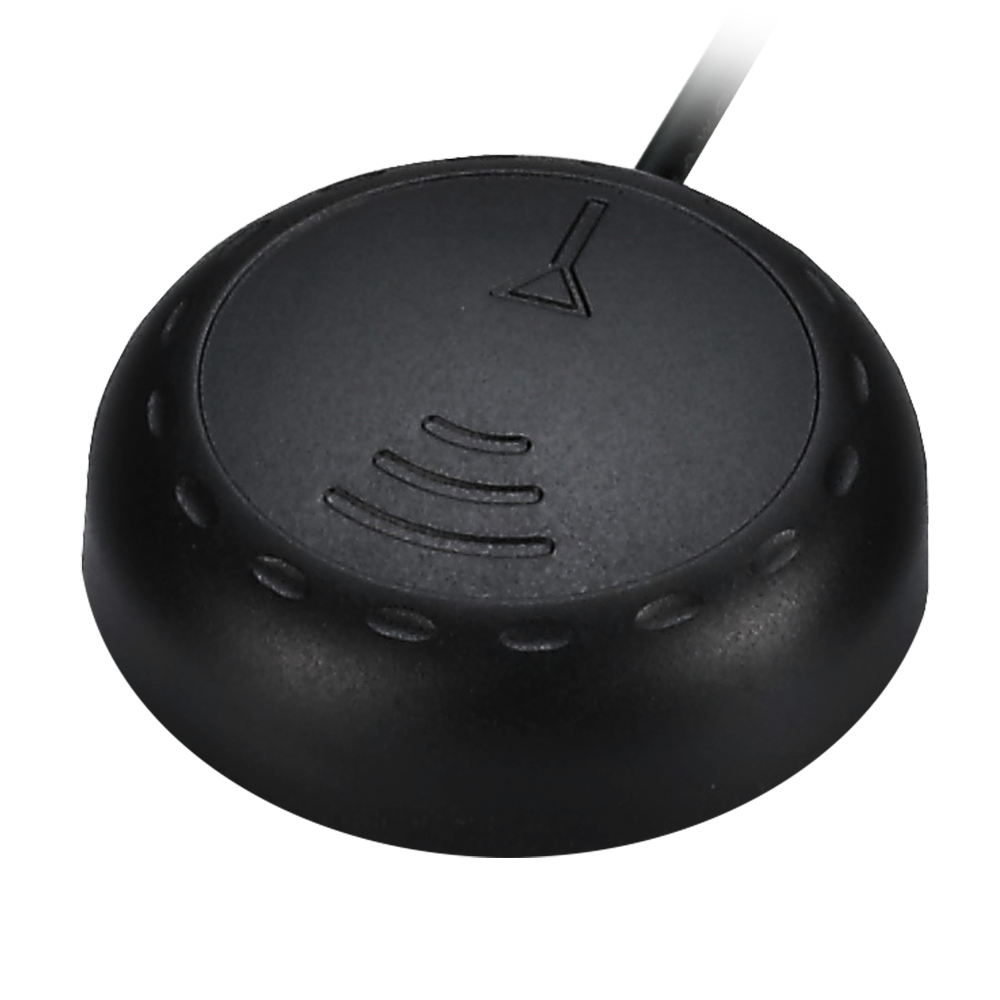

This active GNSS antenna is designed for GPS/Galileo reception with a single-stage low-gain LNA, making it well-suited for GNSS modules that already include an integrated LNA and do not use automatic gain control.
- Optimized for compatible GNSS receivers: helps avoid excessive gain in systems with integrated LNA modules
- Magnetic mount housing: quick placement on suitable metal surfaces
- Rugged enclosure: IP67-rated for environmental protection
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1575.42MHz
GNSS Type: Active GNSS
GNSS Bands: L1
IP Rating: IP67
Impedance: 50
Polarization: RHCP
VSWR: 2
Dimensions: 47*45*14.5mm
Weight: 110g
Connector Type: SMA
Cable Length: 300cm
Cable Type: RG-174
