Description

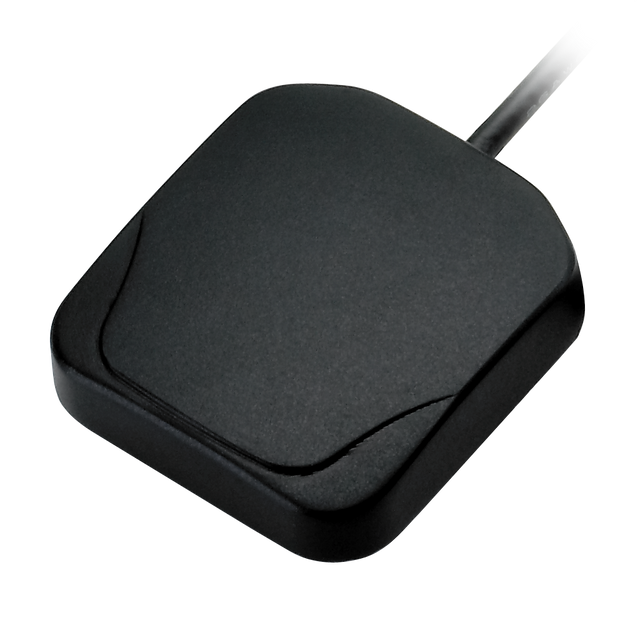

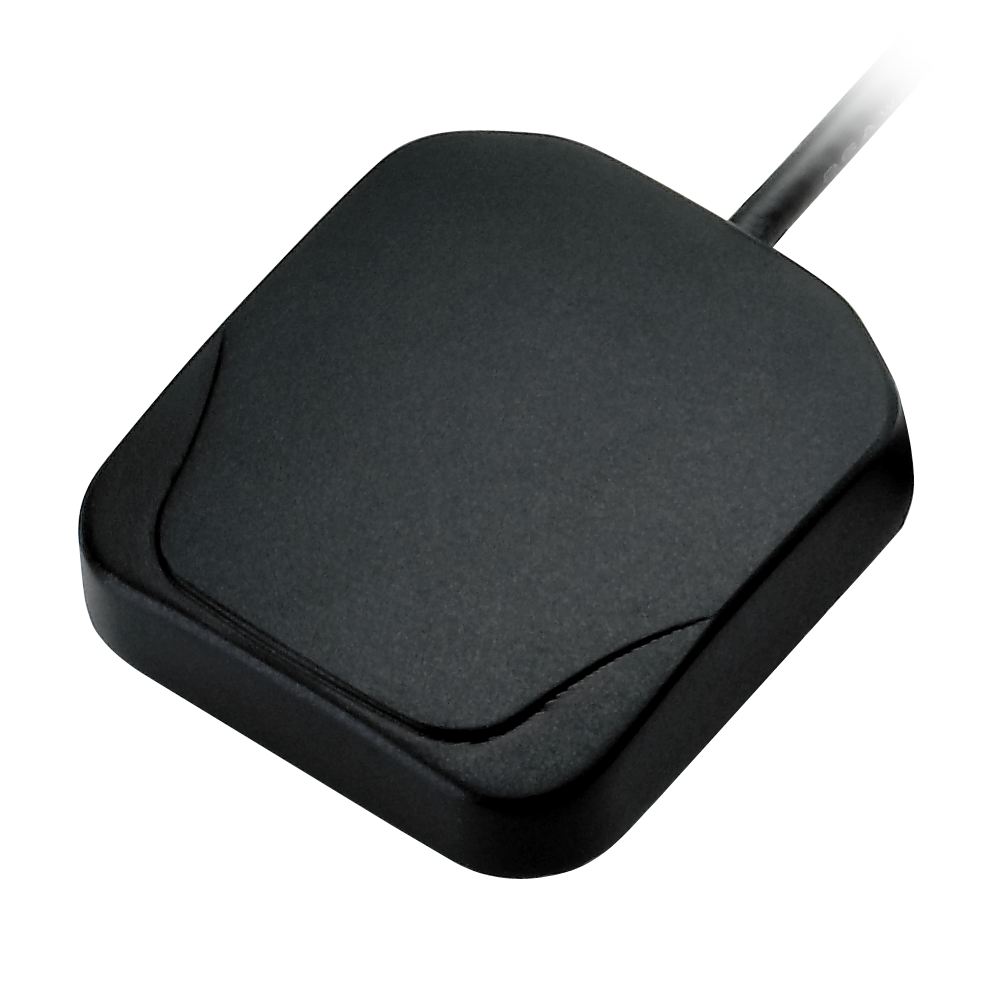

Ulysses is an ultra-low-profile, miniature GNSS positioning antenna designed for applications that need accurate and reliable satellite reception in a compact, rugged form factor. Its wide-band design supports reception across major GNSS constellations, while the sealed housing enables dependable operation in harsh outdoor environments.
- Accurate GNSS reception: designed to combine signals from GPS, Galileo, and GLONASS systems
- Rugged outdoor-ready enclosure: built for demanding environments
- Low-profile design: compact housing for space-constrained installations
- Integrated filtering: front-end SAW filter helps protect the LNA from nearby out-of-band interference
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 40.4*37.8*10mm
Weight: 57g
GNSS (Active)
Frequency: 1575.42-1610 MHz
GNSS Bands: L1
Impedance: 50Ω
VSWR: <2
Gain (Max): 31
Polarization: RHCP, Linear
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
