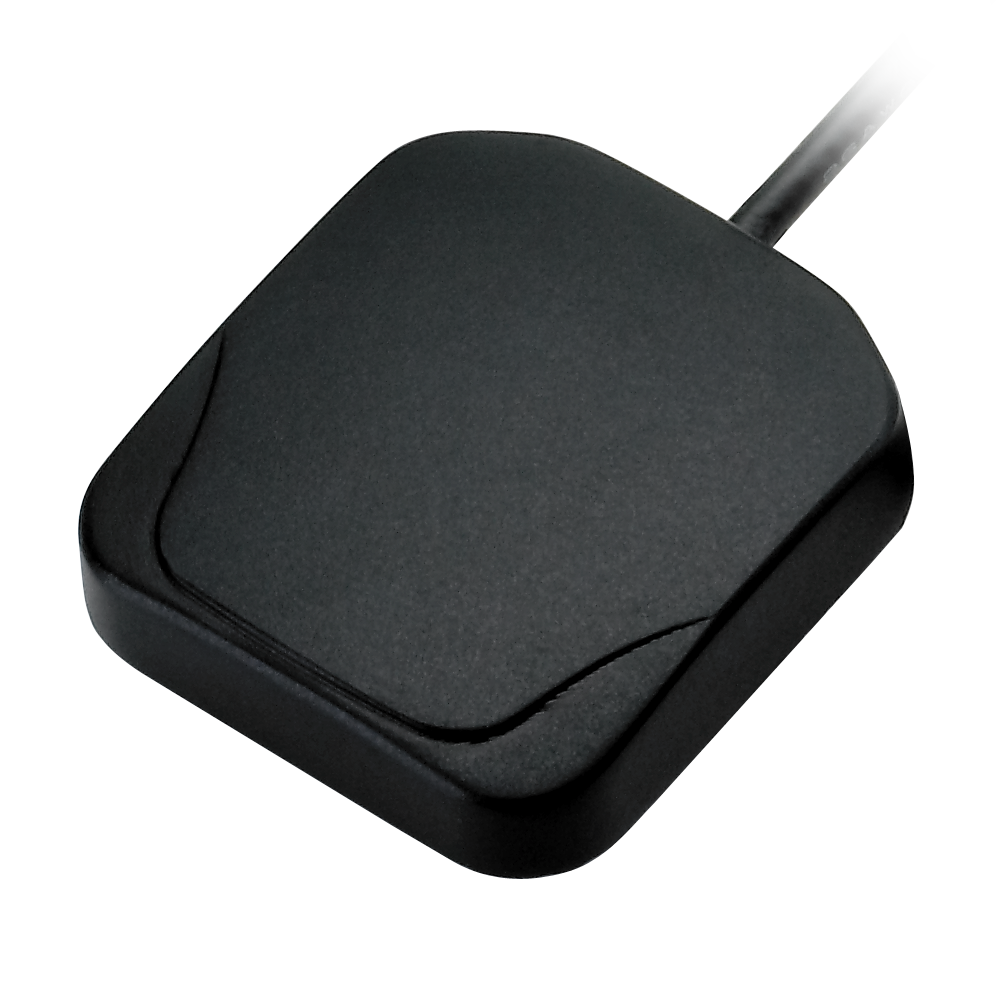

AA.166.A.301111 Antenna Outdoor Ultra Low Profile GNSS magnetic mount Ulysses SMA-M 300cm RG-174 IP67 for Timing, Precision Positioning for Robotics / Automotive, Telematics, Autonomous Routing

Ulysses is a miniature, ultra-low-profile active GNSS antenna designed for applications that need reliable, high-accuracy positioning in space-constrained installations. Its integrated ground and wide-band patch element help deliver consistent performance across multiple GNSS constellations, while the IP67-rated, UV-resistant enclosure supports durable outdoor operation.

• Supports multi-constellation GNSS reception for improved positioning accuracy
• Ultra-low-profile housing for tight installation spaces
• Magnetic mounting for quick, secure placement on suitable metal surfaces
• SAW filter configuration helps protect against nearby out-of-band interference
• IP67-rated enclosure for demanding environments

Typical use cases include timing, precision positioning for robotics/automotive, telematics, and autonomous routing.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 37.8*40.4*10mm
Weight: 65g

GNSS (Active)

Frequency: 1575.42MHz - 1610MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: <2
Gain (Max): 31.37
Connector Type: SMA-M
Cable Length: 300cm
Cable Type: RG-174
