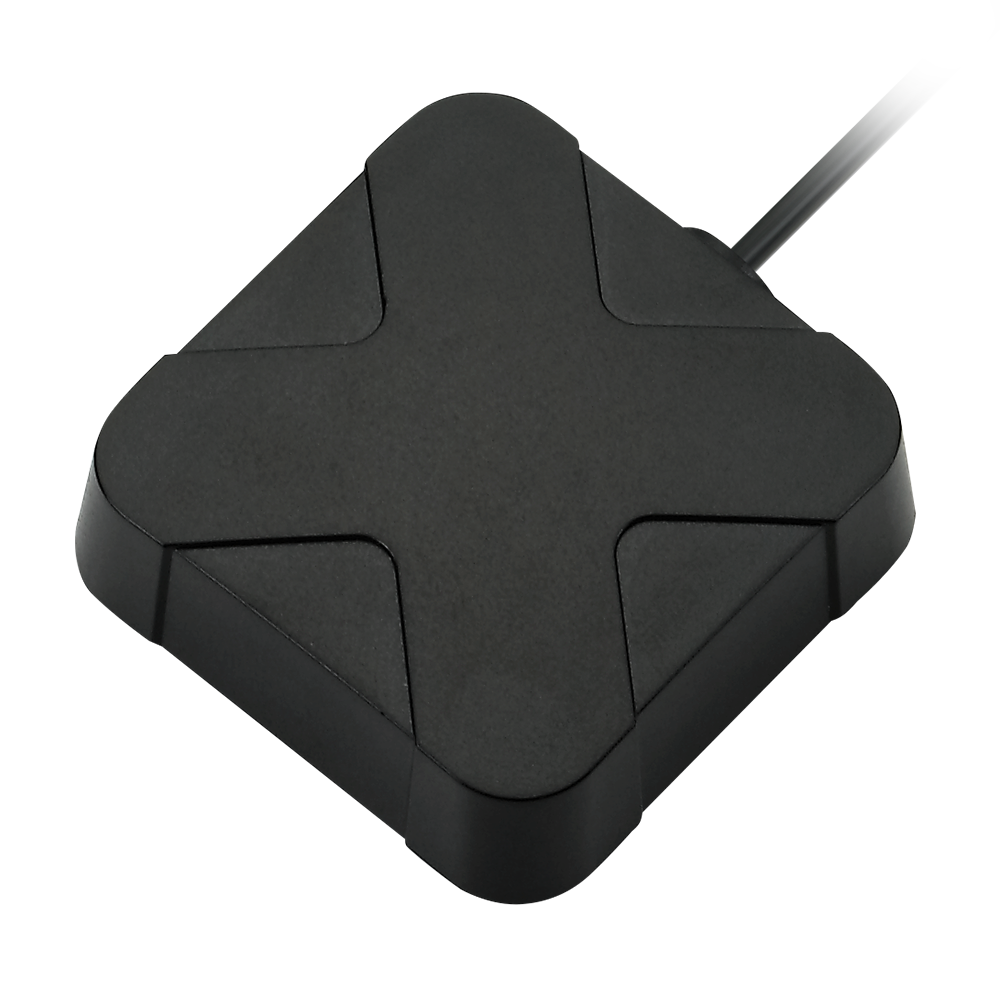

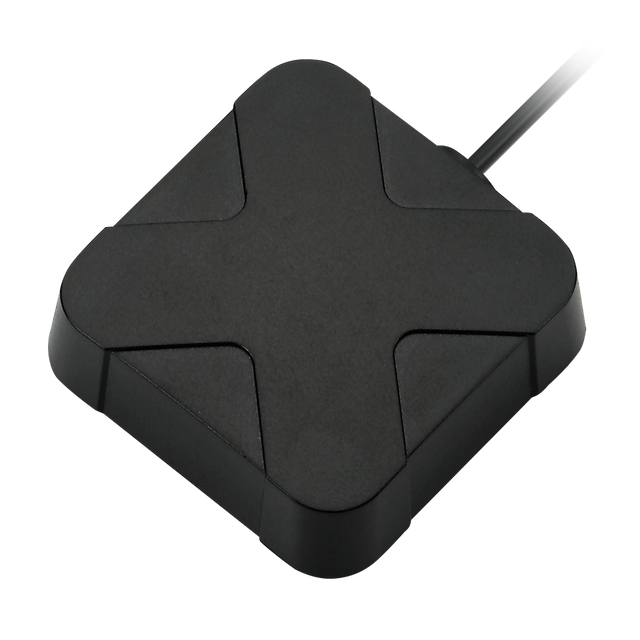

AA.170.301111 Antenna External GNSS magnetic mount Magma X SMA-M 300cm IP67

This compact, low-profile external automotive GNSS antenna is designed for robust and covert installations where durability and size are critical. It supports multi-constellation reception to help improve positioning reliability in demanding environments.

• Built for harsh environments: sealed housing suited to outdoor/vehicle use
• Improved GNSS performance: right-hand circular polarization to support accurate satellite reception
• Interference resilience: front-end SAW filtering helps reduce out-of-band interference from nearby transmitters
• Use cases: Advanced telematics and M2M applications, Fleet management

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 53*50*17mm
Weight: 90g

GNSS (Active)

Frequency: 1559MHz - 1610MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 2
Gain (Max): 32
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
