Description

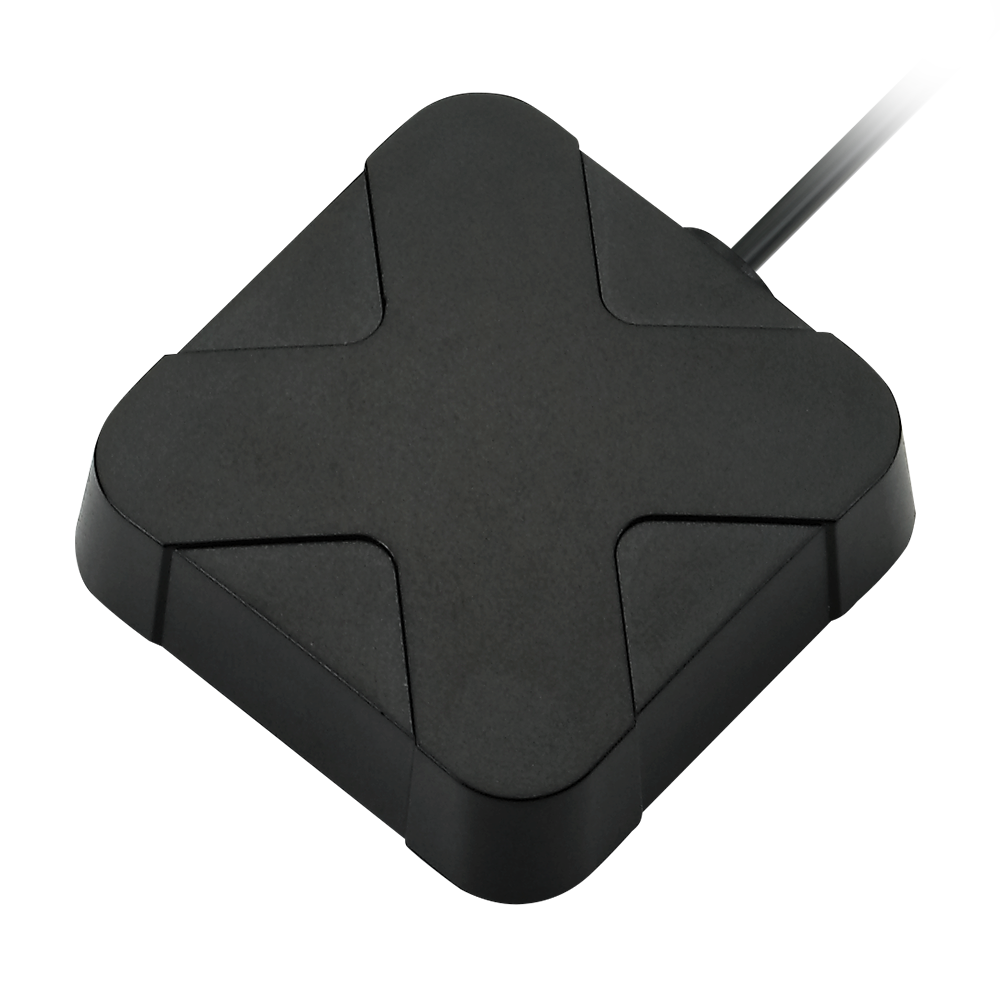

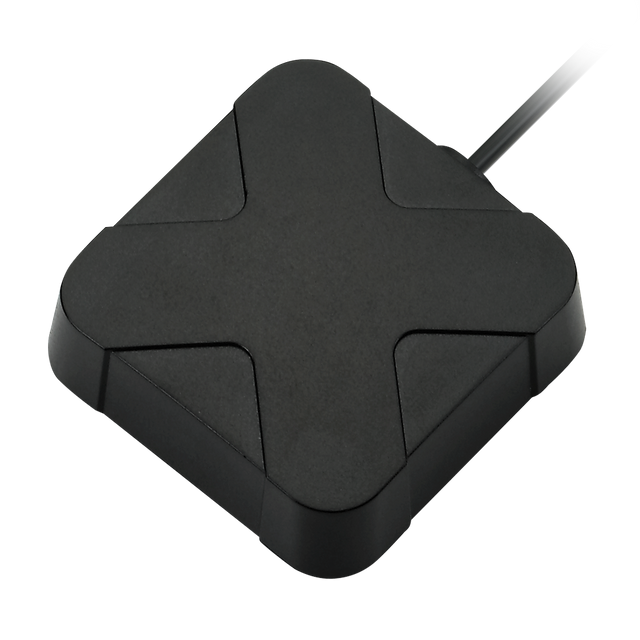

This active GNSS antenna is designed for high-accuracy positioning where stable reception and fast acquisition are critical. Its compact, rugged housing supports precision tracking workflows for robotics, transportation, marine, and agriculture deployments.
The antenna delivers strong out-of-band rejection and low-noise performance to help protect receiver front ends and maintain signal quality in challenging RF environments.
Typical applications include
- UAVs and Robotics
- Transportation
- Autonomous Vehicle
- Marine
- RTK
- Agriculture
- Navigation
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 49.8*52.4*17.1mm
Weight: 98g
GNSS (Active)
Frequency: 1217-1238 MHz, 1559-1565 MHz, 1565-1586 MHz, 1596-1610 MHz
GNSS Bands: L1/L2
Standards: GPS L1/L2, GLONASS L1, BeiDou B1I
Polarization: RHCP
Impedance: 50 Ω
VSWR: 2:1
Gain (Max): 28
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
