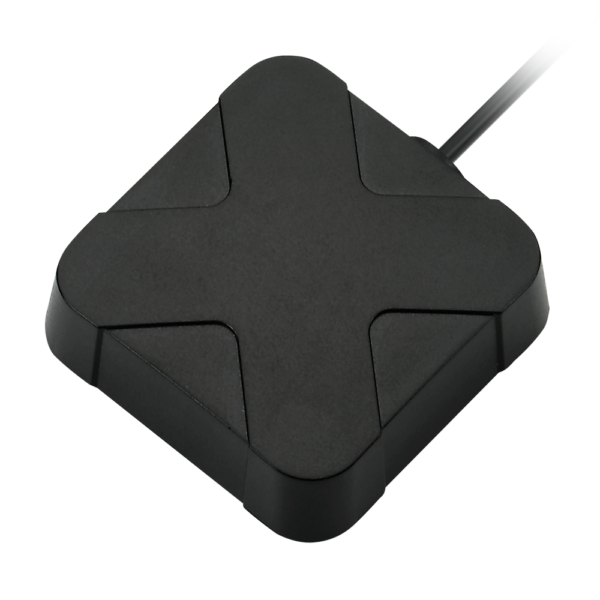

AA.178.B.301111 Antenna External GNSS magnetic mount Magma X2 SMA-M ST 300cm IP67 for UAVs and Robotics, Transportation, Autonomous Vehicle, Marine

Magma X2 is a compact, high-performance active GNSS antenna designed for reliable L1/L5 reception in demanding environments. Its magnetic-mount design enables quick attachment to suitable metal surfaces, while the rugged IP67-rated enclosure supports outdoor and industrial use cases.

• Active GNSS (L1/L5) support for high-accuracy positioning workflows (including RTK-enabled systems)
• Excellent out-of-band rejection to help protect receiver front ends from strong interference
• Low noise figure to help preserve signal quality and improve time-to-first-fix performance
• RHCP polarization for GNSS reception

Typical applications include:

• UAVs and Robotics
• Transportation
• Autonomous Vehicle
• Marine
• RTK
• Agriculture
• Navigation

Connector & Cable

• Connector Type: SMA-M ST
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 49.8*52.4*17.1mm
Weight: 98g

GNSS (Active)

Frequency: 1160MHz - 1610MHz
Standards: GPS L1/L5, GLONASS G1, Galileo, BeiDou, QZSS, SBAS, IRNSS L5
GNSS Type: Active GNSS
GNSS Bands: L1/L5
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 29.6
Connector Type: SMA(M) ST
Cable Length: 300cm
Cable Type: RG-174
