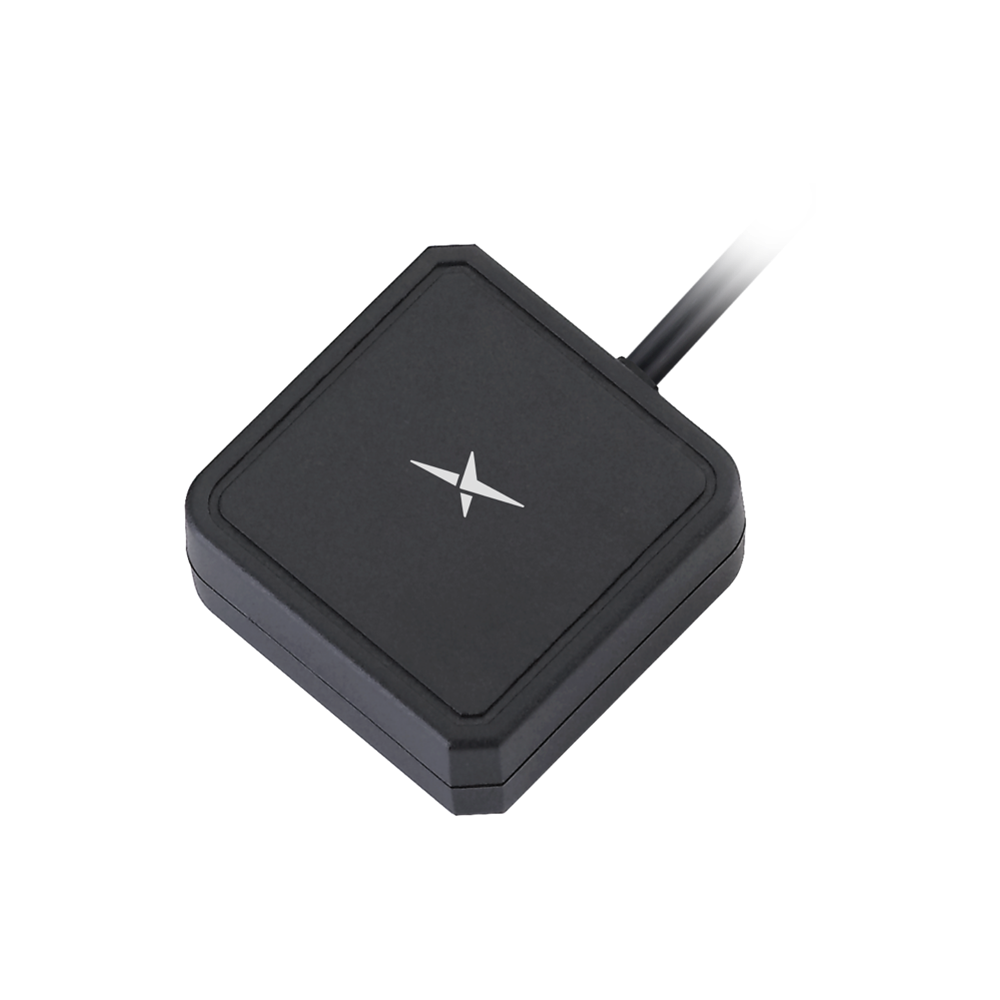

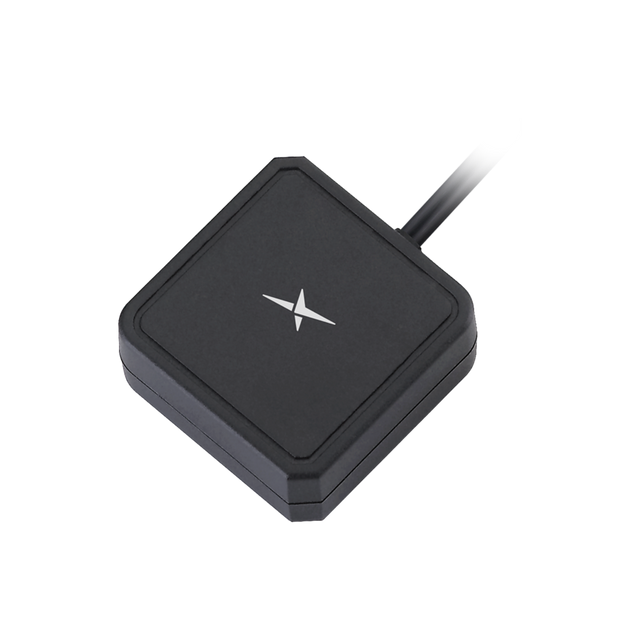

AA.185.301111 Antenna Low-Profile GNSS magnetic/adhesive mount Magma SMA-M 300cm IP67 for Advanced Telematics, Navigation, Fleet Management, M2M applications

This compact low-profile GNSS antenna is designed for discreet installations where durability and small size are important. It supports reliable positioning performance across major satellite constellations and is well-suited for use in challenging environments thanks to its robust, waterproof enclosure.

• Covert, low-profile form factor: ideal when minimal visibility is required
• Multi-constellation GNSS support: built for consistent L1-band positioning
• Dual-pin patch design: helps improve polarization performance for better fix quality
• Interference resilience: front-end filtering helps reduce the impact of nearby transmitters
• Flexible mounting: supports magnetic or adhesive mounting options

Typical use cases include: advanced telematics, navigation, fleet management, M2M applications, construction, agriculture, and high accuracy timing/positioning systems.

Cable length and connector type can be customized upon request. Alternate version: AA.186. For additional support: design and testing services; Customer Services Team.

Connector & Cable

• Connector Type: SMA(M)
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic Mount, Adhesive Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Ø35 x 15 mm
Weight: 72g

GNSS (Active)

Frequency: 1559MHz - 1610MHz
GNSS Bands: L1
Standards: GPS/GLONASS/Galileo/BeiDou (L1/E1/B1)
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 15.29
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
