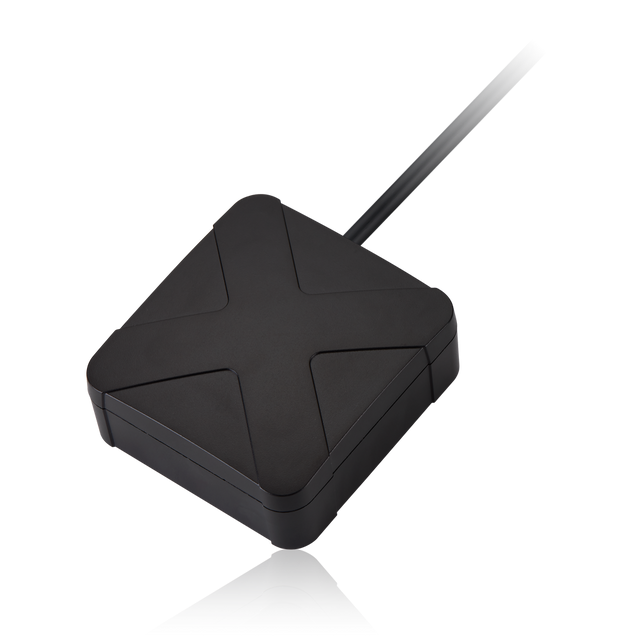

AA.200.151111 Antenna External GNSS magnetic mount Magma X2 SMA-M 150cm IP67 for UAVs and Robotics, Autonomous Vehicles, High Accuracy Positioning, RTK Systems

Magma X2 is an active multiband GNSS magnetic-mount antenna designed to support reliable positioning across major global satellite constellations. It delivers stable performance in challenging RF environments, helping maintain dependable GNSS fixes even in weaker-signal conditions.

Integrated LNAs and front-end SAW filtering help reduce out-of-band interference and improve receiver protection near other radio transmitters, supporting both RTK-enabled and non-RTK positioning systems.

• Supports GPS/QZSS, Galileo, GLONASS, and BeiDou constellations
• Magnetic-mount form factor for fast temporary installation on suitable surfaces
• Robust enclosure suitable for harsh environments

Typical applications include: UAVs and Robotics, Autonomous Vehicles, High Accuracy Positioning, RTK Systems, Precision Agriculture, Navigation.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 150cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1160MHz - 1610MHz
GNSS Type: Active GNSS
GNSS Bands: L1/L2/L5
IP Rating: IP67
Impedance: 50Ω
Polarization: RHCP
VSWR: 2:1
Gain (Max): 27.8
Dimensions: 63.2 x 67.2 x 26.5 mm
Weight: 160g
Connector Type: SMA(M) Straight
Cable Length: 150cm
Cable Type: RG-174
