Description

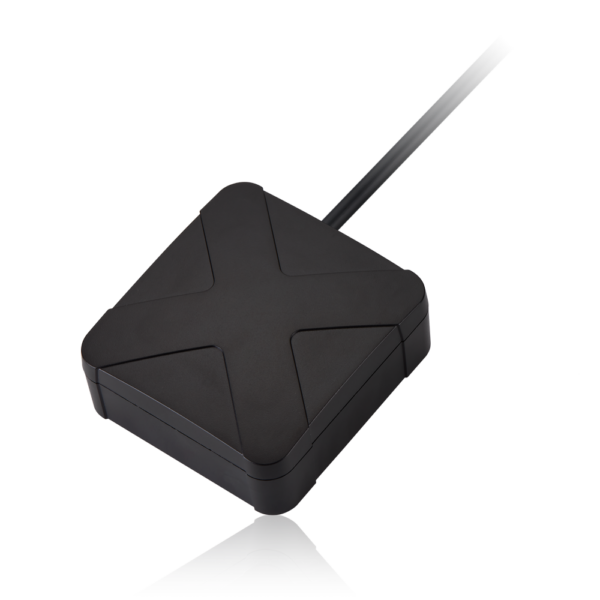

This compact external magnetic-mount GNSS antenna is engineered to improve signal reception quality across L1/L2/L5, supporting major satellite constellations for reliable positioning performance even in challenging RF environments.
- Multi-band GNSS support: Designed for L1/L2/L5 operation across common navigation systems.
- High signal quality: Features LNAs and front-end SAW filtering to help reduce out-of-band noise.
- Rugged enclosure: Built for demanding outdoor use with an IP67-rated ABS housing.
- Ideal for: UAVs and Robotics, Autonomous Vehicles, High Accuracy Positioning, Public Safety Systems, Precision Agriculture, and Navigation.
Connector & Cable
- Connector Type: SMA Male Straight
- Cable Length: 150cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 67.19 x 63.19 x 26.5mm
Weight: 160g
GNSS (Active)
Frequency: 1176.45MHz - 1603MHz
GNSS Bands: L1/L2/L5
Impedance: 50Ω
VSWR: 2:1
Polarization: RHCP
Gain (Max): 30
Connector Type: SMA(M)ST
Cable Length: 150cm
Cable Type: RG-174
