Description

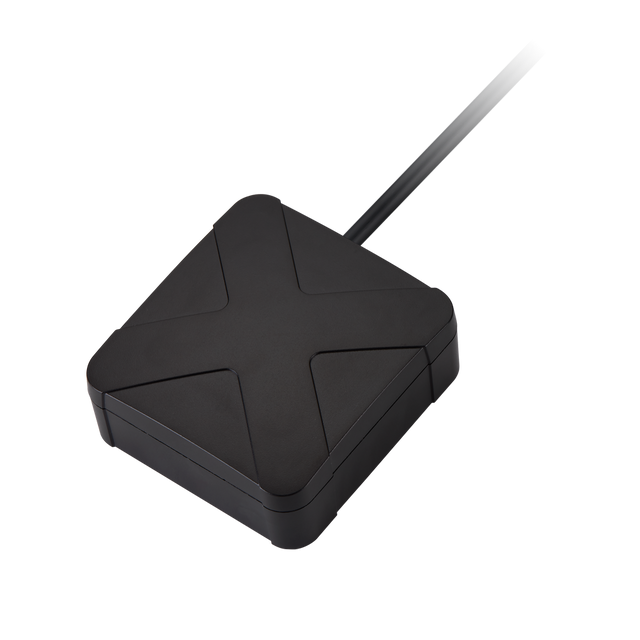

Magma X2 is a compact, low-profile external GNSS magnetic-mount antenna designed for fast fix and high-precision positioning. It supports GNSS L1/L2 plus L-Band coverage for use with correction services, helping enable cm-level positioning performance in demanding deployments.
- Multi-band GNSS support: L1/L2 with L-Band coverage
- High-precision positioning: optimized for modern L1/L2 GNSS receivers and correction workflows
- Rugged enclosure: IP67-rated for harsh environments
- Secure placement: high-strength magnetic mounting for quick installation and removal
Typical applications include: Precision Agriculture, Navigation, Robotics and Autonomous Vehicles, Transportation and Telematics.
Connector & Cable
- Connector Type: SMA(M) ST
- Cable Length: 200cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 63.2mm x 67.2mm x 26.5mm
Weight: 165g
GNSS (Active)
Frequency: 1215MHz - 1610MHz
GNSS Bands: L1/L2/L-Band
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 28.6
Connector Type: SMA(M) ST
Cable Length: 200cm
Cable Type: RG-174
