Description

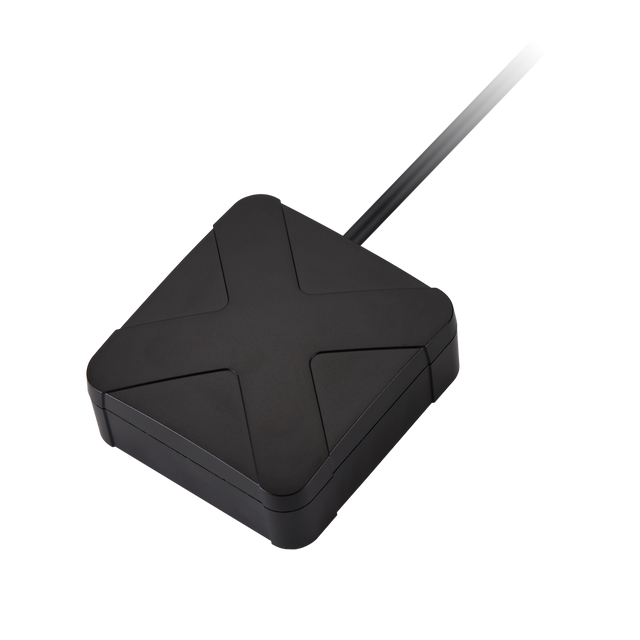

Magma X2 is a compact, high-performance external GNSS magnetic-mount antenna designed for fast fix and high-precision positioning. It supports L1, L5, and L-Band coverage for modern multi-band GNSS receivers and correction services.
- Multi-band GNSS coverage: L1/L5 plus L-Band support
- Rugged design: IP67-rated enclosure for harsh environments
- Secure mounting: magnetic base for quick placement on suitable surfaces
- Built for precision positioning: optimized for high-accuracy GNSS use cases
Typical applications include: Precision Agriculture, Navigation, Robotics and Autonomous Vehicles, Transportation and Telematics.
Connector & Cable
- Connector Type: SMA(M)ST
- Cable Length: 200cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 63.2mm x 67.2mm x 26.5mm
Weight: 165g
GNSS (Active)
Frequency: 1176.45MHz - 1602MHz
GNSS Bands: L1/L5/L-Band
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 27.4
Connector Type: SMA(M)ST
Cable Length: 200cm
Cable Type: RG-174
