AA.250.101111 Antenna External GNSS magnetic mount Comet SMA-M 100cm IP67 for UAVs and Robotics, Autonomous Vehicles, High Accuracy Positioning, RTK Systems

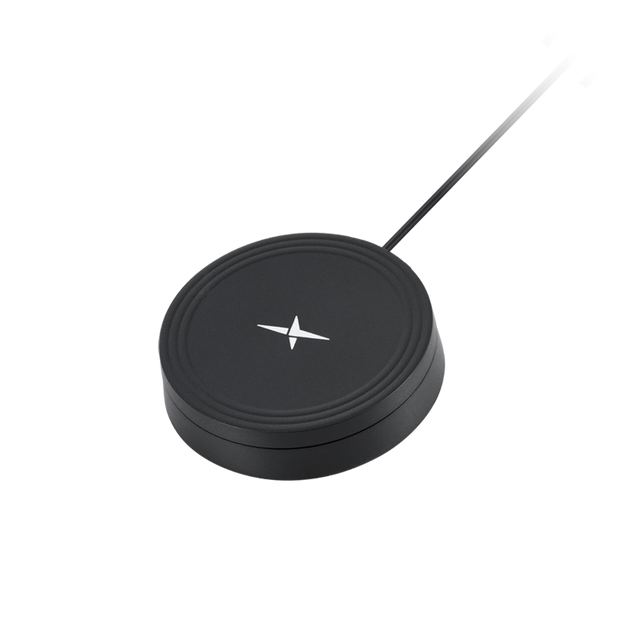

Comet is an active, all-band GNSS magnetic mount antenna designed to support reliable positioning across major GNSS constellations, with added L-Band support for correction services to optimize GNSS performance.

It is engineered for stable radiation patterns and strong performance in challenging environments where GNSS signals may be weak, helping deliver dependable positional accuracy for both RTK and non-RTK systems.

• Wide GNSS coverage: Supports GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS, plus L-Band
• Active design: Dual stage LNA with front-end SAW filtering to reduce out-of-band interference
• Built for field use: Waterproof rated enclosure for demanding deployments

Typical applications include: UAVs and Robotics, Autonomous Vehicles, High Accuracy Positioning, RTK Systems, and Precision Agriculture.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 100cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Ø86 x 26 mm
Weight: 138g

GNSS (Active)

Frequency: 1176.45MHz - 1602MHz
GNSS Bands: L1/L2/L5/L6/L-Band
Polarization: RHCP
Impedance: 50Ω
VSWR: <3
Gain (Max): 26.4
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG-174

Download Datasheet PDF
