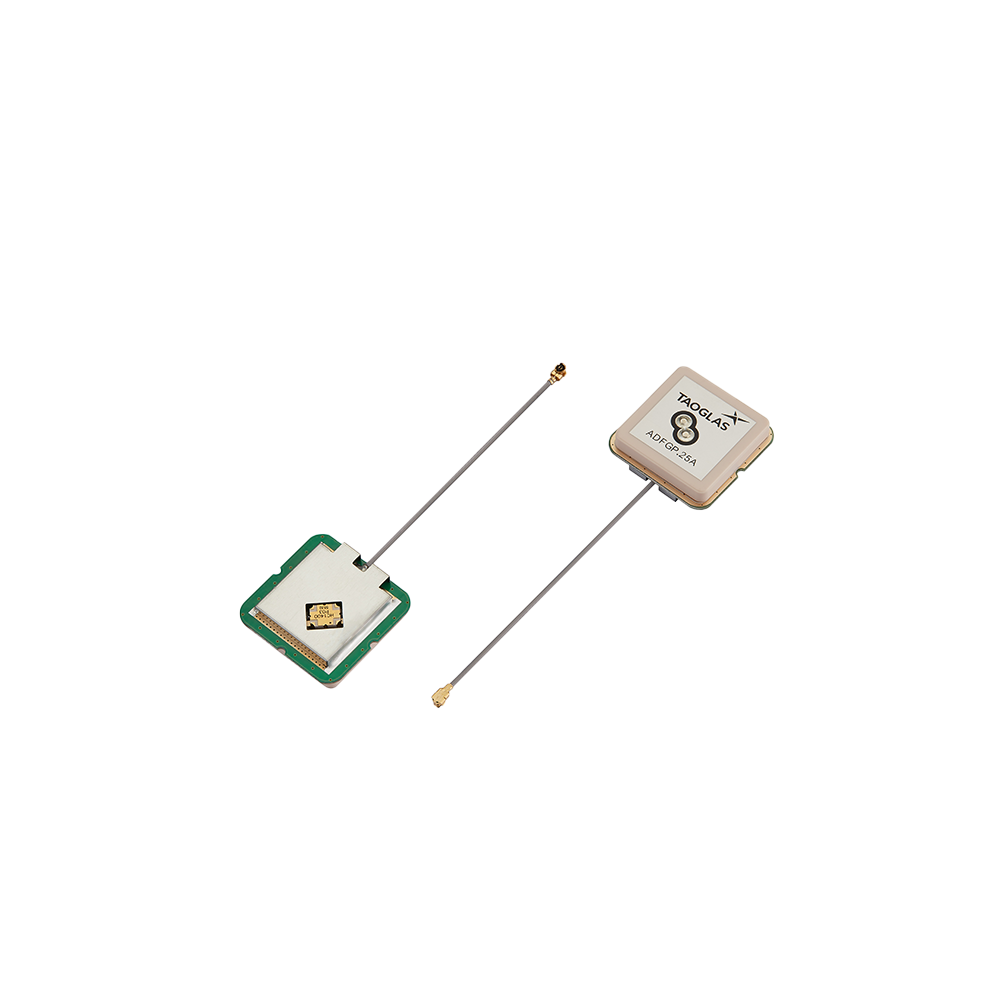

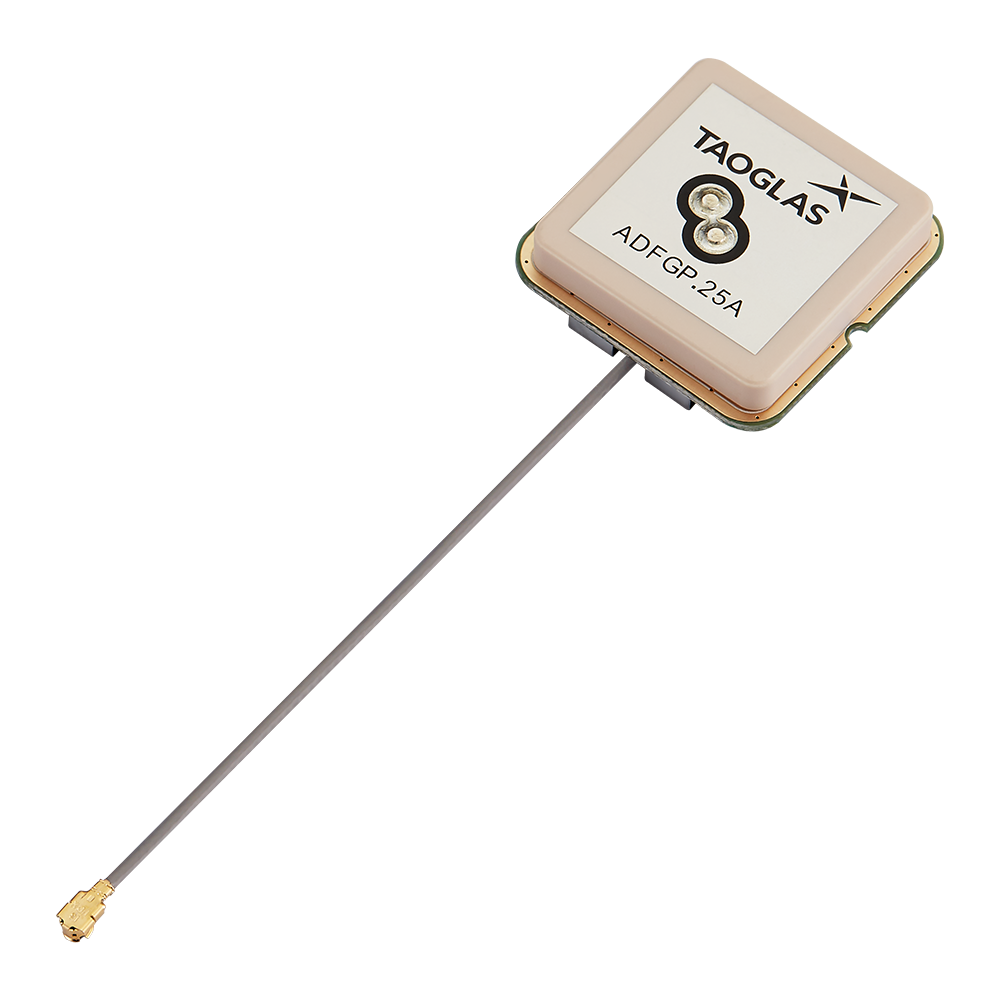

ADFGP.25A.07.0060A Antenna GNSS embedded patch I-PEX MHF I (U.FL) 6cm for High accuracy positioning and navigation systems, UAVs, Robotics & Autonomous Vehicles, Micro-Mobility Solutions, Mapping & GIS

This embedded dual-feed active GNSS patch antenna is designed for compact devices that require strong, consistent positioning performance across major GNSS constellations. Its dual-pin patch design is optimized for low axial ratio, helping improve reception quality and positional accuracy in challenging RF environments.

Integrated LNA and front-end SAW filtering help reduce out-of-band interference (such as from nearby cellular radios) and improve resilience against nearby radiated power surges—supporting more reliable GNSS receiver operation.

• Dual-feed patch design optimized for low axial ratio
• Wideband GNSS operation supporting major L1 services
• Integrated LNA + SAW filter for improved interference rejection
• RTK-capable system suitability for high-accuracy positioning solutions

Typical applications include: High accuracy positioning and navigation systems; UAVs, Robotics & Autonomous Vehicles; Micro-Mobility Solutions; Mapping & GIS; Transportation & Telematics; Precision Agriculture; Public Safety, Search & Rescue; RTK Systems.

Cable length and connector type can be customized, and custom-tuned patch options may be available subject to MOQ.

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL compatible)
• Cable Length: 6cm
• Cable Type: 1.13 Coax

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1559MHz - 1610MHz
GNSS Type: Active GNSS
GNSS Bands: L1
Impedance: 50Ω
Polarity: RHCP
VSWR: 2:1
Gain (Max): 33.5
Dimensions: Ø25 x 7.5 mm
Weight: 13.5g
Connector Type: I-PEX MHF I
Cable Length: 6cm
Cable Type: 1.13 Coax
