Description

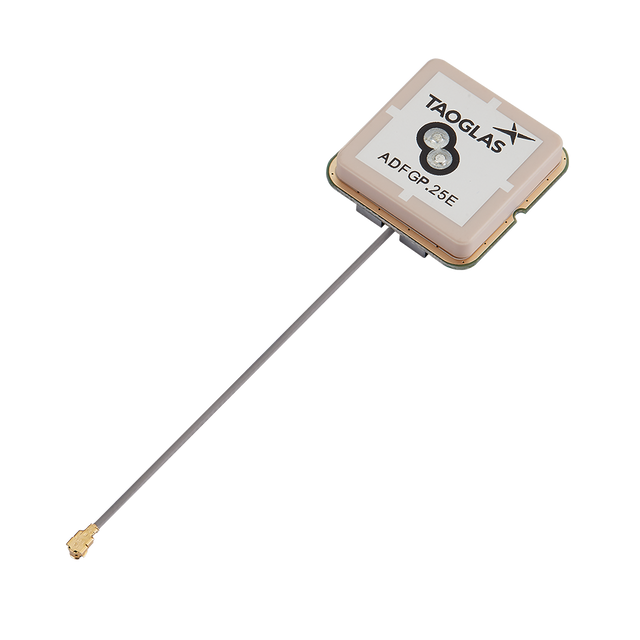

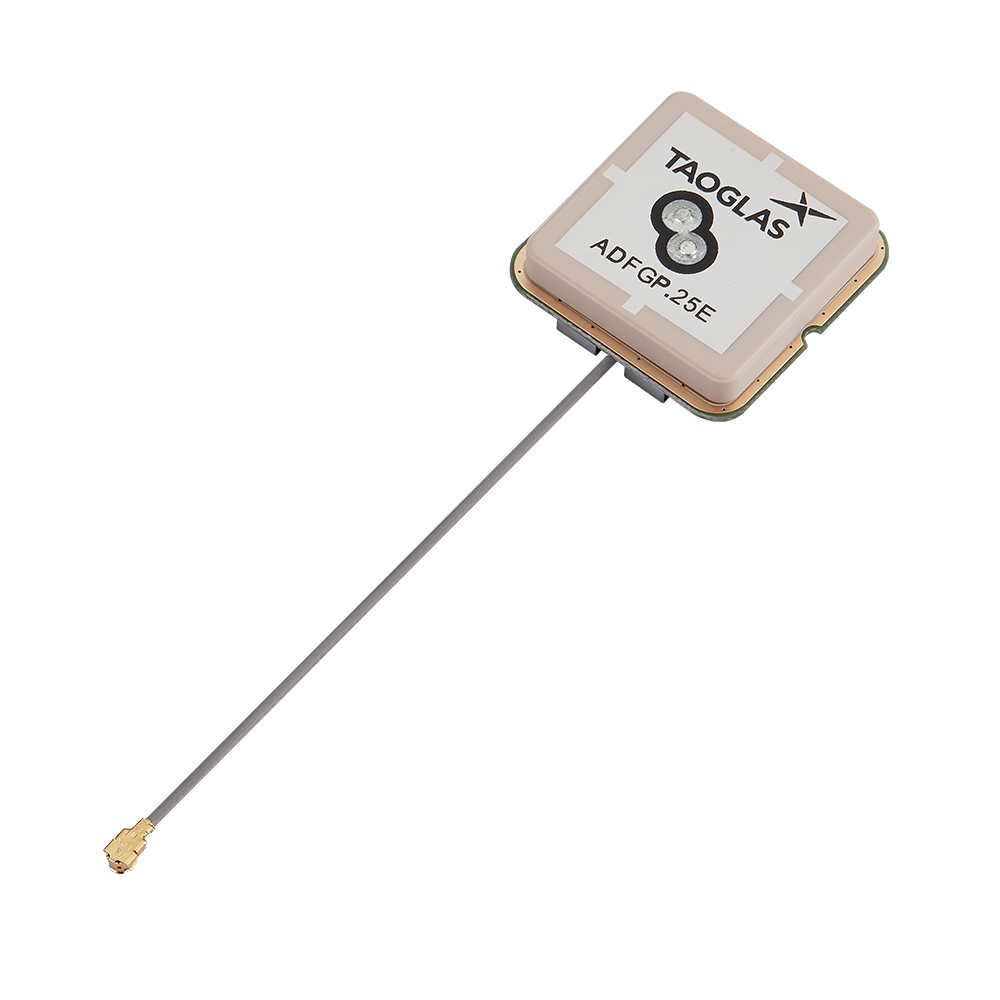

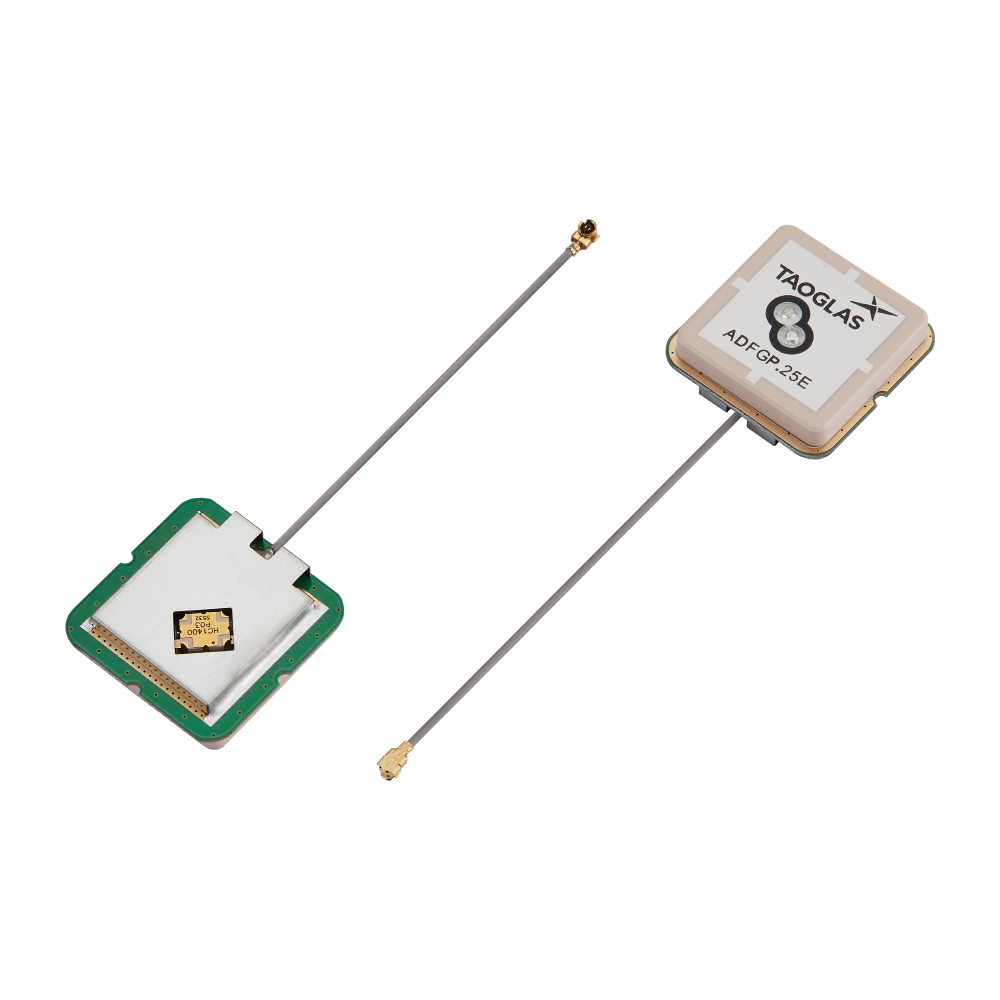

This embedded dual-feed active patch antenna is designed for compact GNSS devices that require accurate and reliable positioning. Its wideband operation supports multiple GNSS constellations, while the dual-feed architecture helps achieve an optimized axial ratio for improved reception quality.
An integrated LNA and front-end SAW filter help reduce out-of-band interference (such as from nearby cellular radios) and improve signal performance in challenging RF environments, making it well-suited for high-accuracy navigation solutions and RTK-capable systems.
- Embedded dual-feed patch design for strong GNSS reception in a compact form factor
- Integrated LNA + SAW filtering to improve noise rejection and receiver protection
- Wide GNSS coverage for multi-constellation positioning
Typical applications include:
- High accuracy positioning and navigation systems
- UAVs, Robotics & Autonomous Vehicles
- Micro-Mobility Solutions
- Mapping & GIS
- Transportation & Telematics
- Precision Agriculture
- Public Safety, Search & Rescue
- RTK Systems
A ground-plane variant is also available: ADFGP.25A.07.0060A.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Active GNSS
GNSS Bands: L1
Frequency: 1559MHz - 1610MHz
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 33.5
Dimensions: Ø25 x 7.5 mm
Weight: 13.5g
Connector Type: I-PEX MHF I
Cable Length: 6cm
Cable Type: 1.13 Coax
