Description

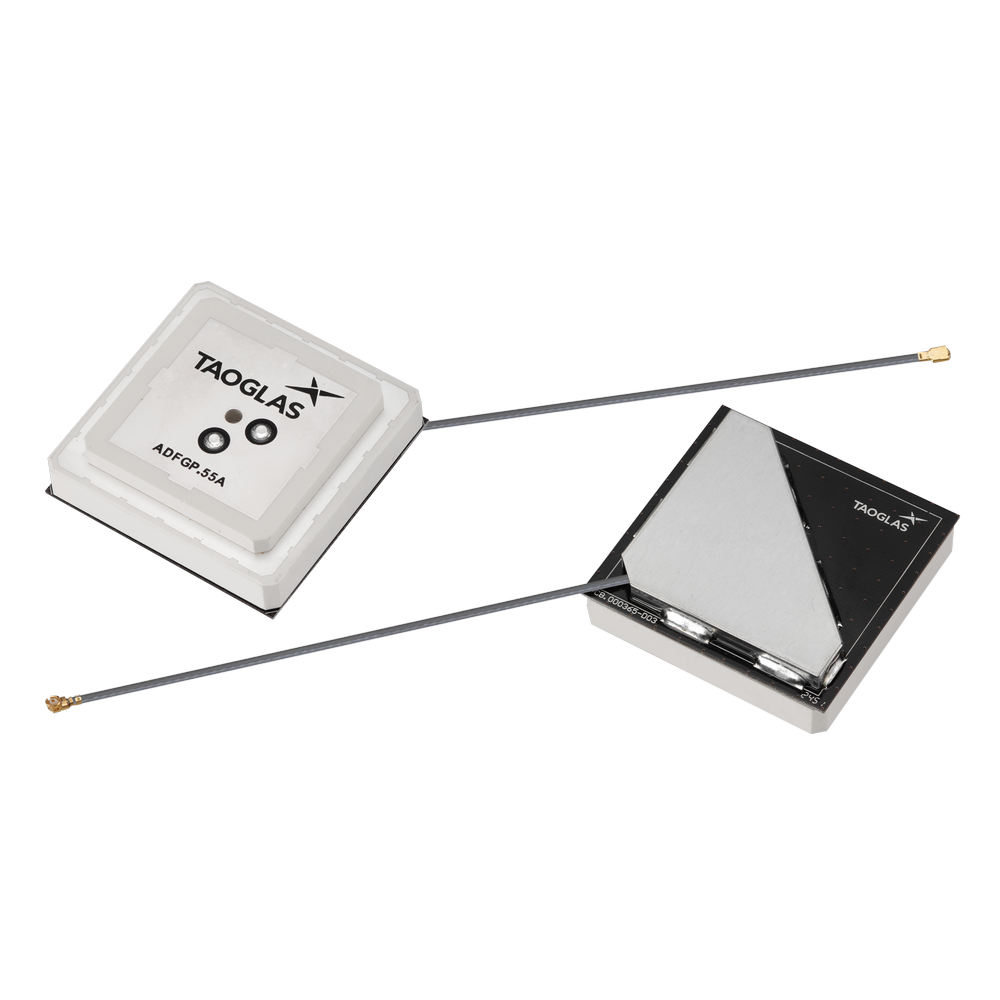

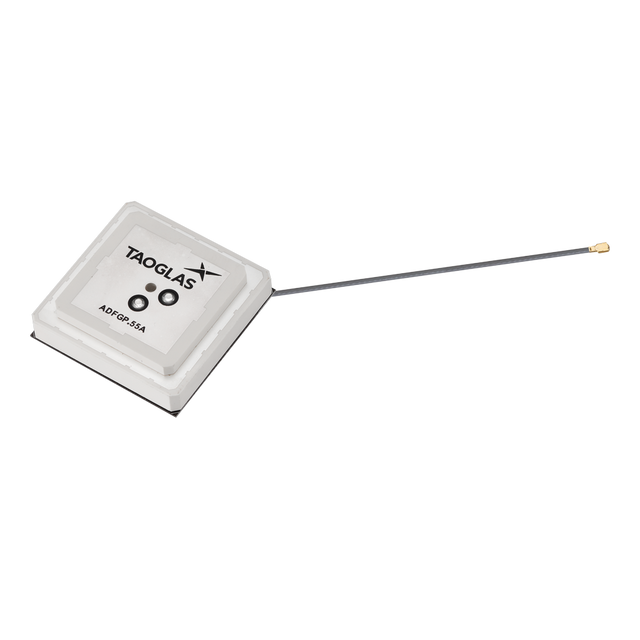

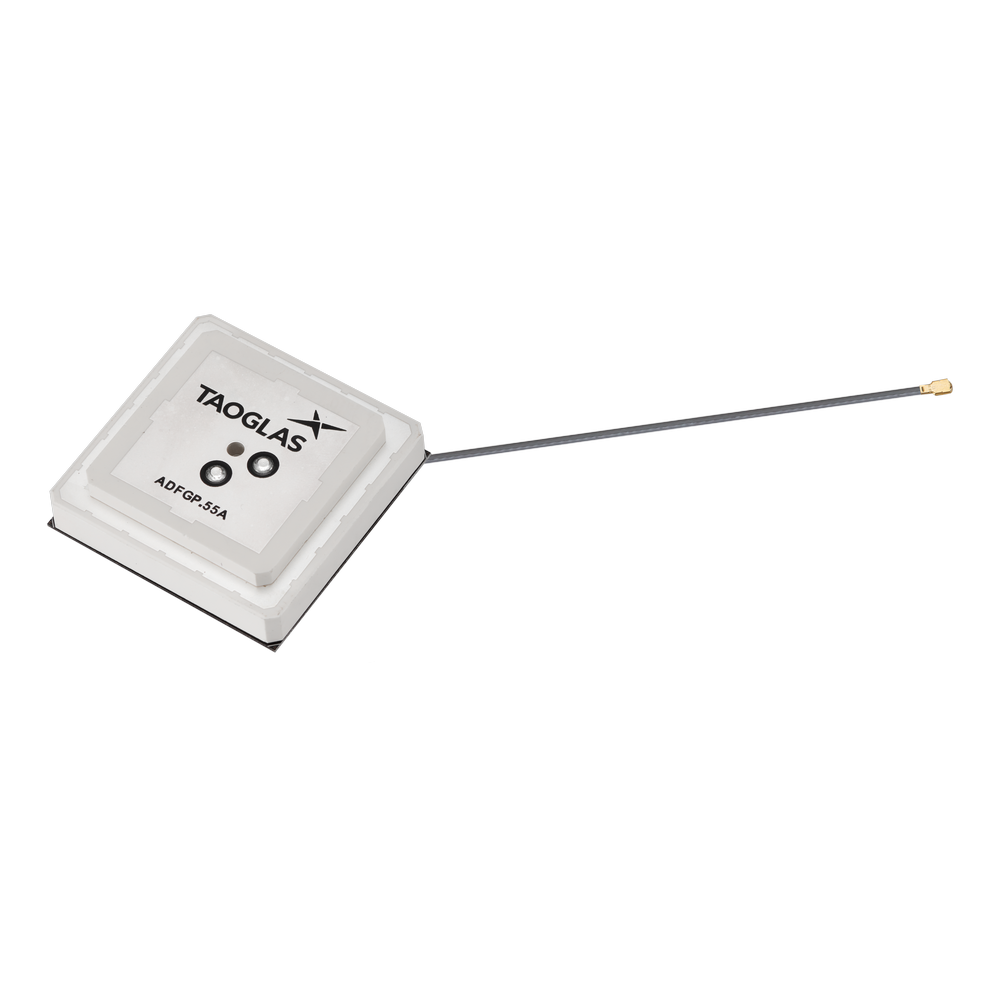

This embedded active multiband GNSS antenna uses a dual stacked patch, dual-feed design to deliver excellent positional accuracy and stable performance in challenging RF environments. It supports major global GNSS constellations and includes integrated LNAs and SAW filtering to help reduce out-of-band interference.
- Multiband GNSS support: GPS (L1/L2/L5), GLONASS (G1), Galileo (E1/E5a/E5b) and BeiDou (B1/B2a/B2b)
- Designed for low axial ratio: dual orthogonal feeds combined via a hybrid coupler for improved circular polarization performance
- Integrated filtering and LNA: helps protect receiver performance in the presence of nearby transmitters
- Embedded form factor: designed for integration on a PCB ground plane
Typical applications include: UAVs and Robotics, Transportation, Autonomous Vehicles, Agriculture, Navigation, RTK.
Connector & Cable
- Connector Type: IPEX MHFHT
- Cable Length: 10cm
- Cable Type: 1.37 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Frequency: 1176.45MHz - 1603MHz
GNSS Bands: L1/L2/L5
Polarization: RHCP
Impedance: 50 Ω
VSWR: 2:1
Gain (Max): 29.68
Connector Type: IPEX MHFHT
Cable Length: 10cm
Cable Type: 1.37 Coax
Dimensions: Ø50 x 16.8 mm
Weight: 97.5g
