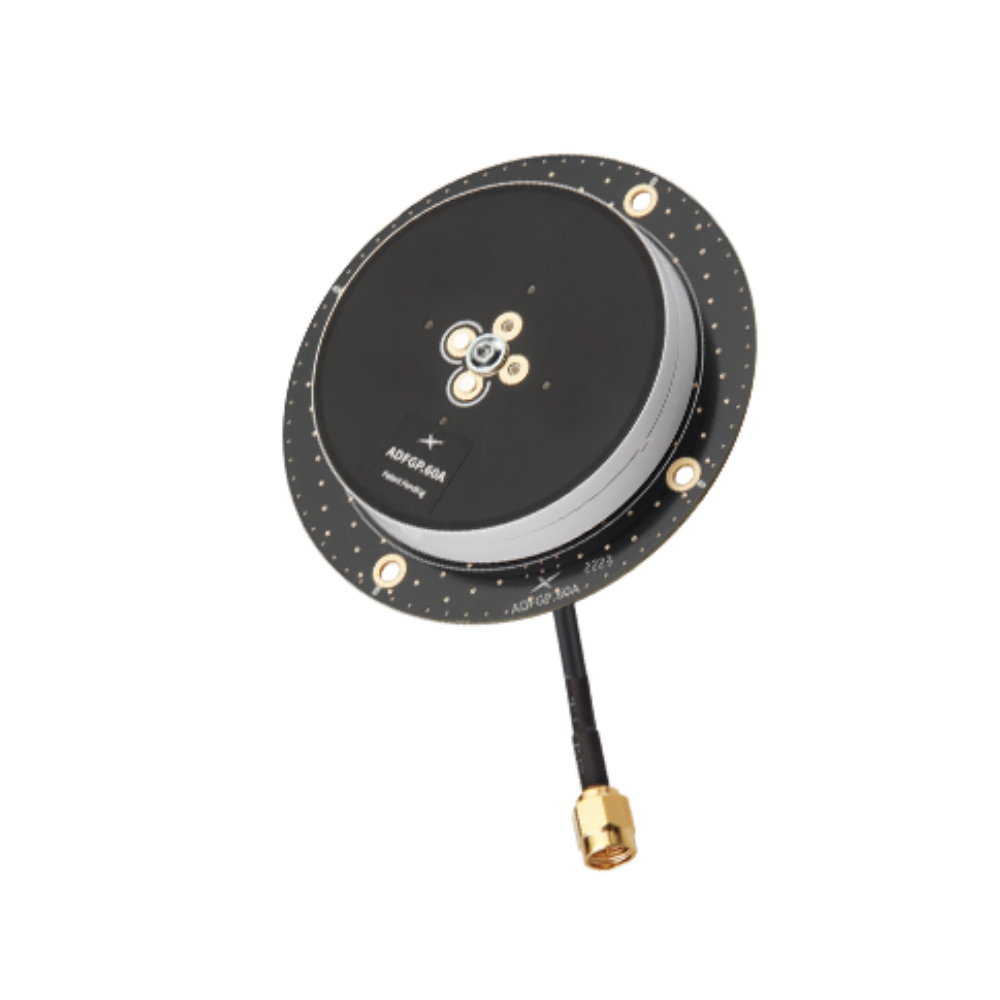

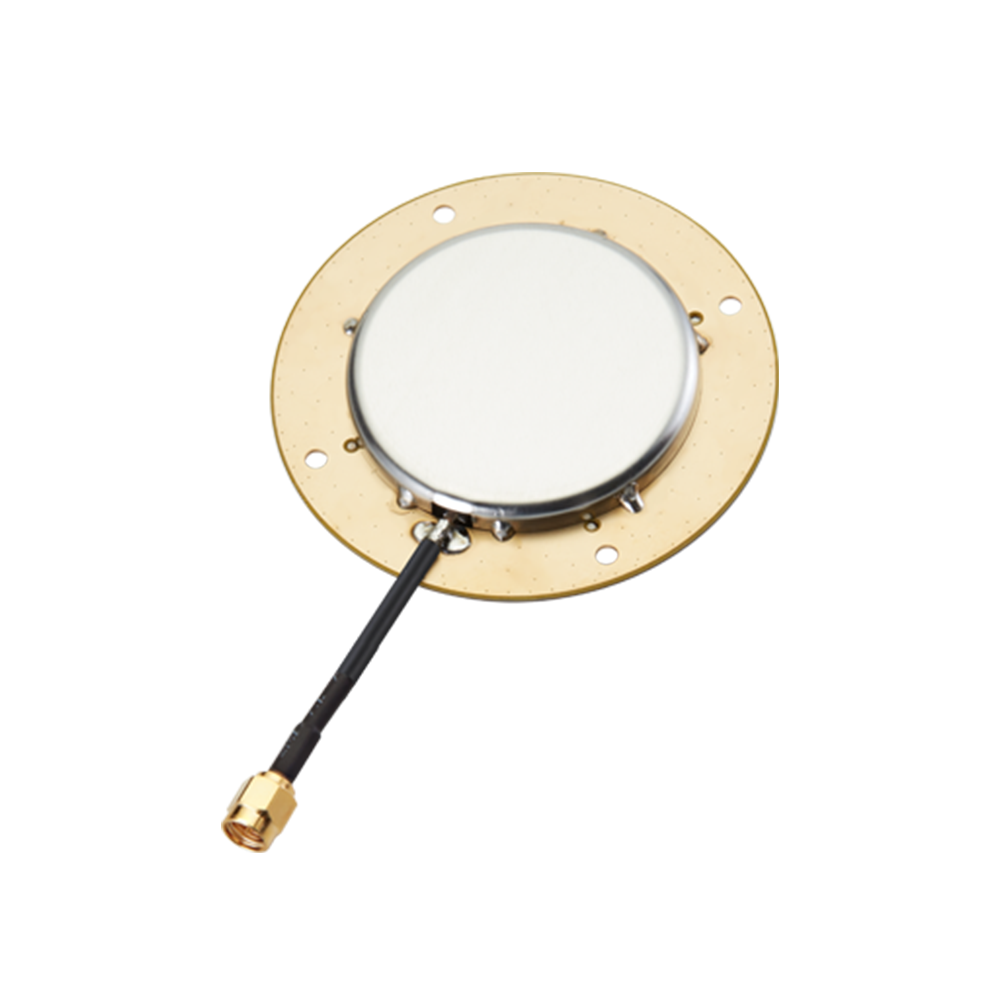

ADFGP.60A.01.0150D Antenna High Precision GNSS embedded patch SMA-M 15cm RG-174 for Autonomous Driving, Unmanned Aerial Vehicles, Precision Positioning for Robotics, Precision Agriculture

High-precision active GNSS patch antenna designed to deliver reliable, cm-level positioning performance across worldwide GNSS bands. This embedded dual-patch, dual-feed design supports multi-constellation reception and is well-suited for demanding positioning and timing systems, including RTK base/rover deployments.

• Wide GNSS coverage: Supports GPS/QZSS, GLONASS, Galileo, BeiDou, NAVIC and SBAS, plus L-band corrections support.
• High-precision performance: Low axial ratio to help maintain excellent polarization and phase behavior.
• Embedded integration: Patch form factor intended for integration into high-accuracy positioning platforms.

Typical applications include:

• Autonomous Driving
• Unmanned Aerial Vehicles
• Precision Positioning for Robotics
• Precision Agriculture
• Timing Accuracy Synchronization

The passive patch can also be purchased: GPDF6010.A

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 15cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø80 x 19.1 mm
Weight: 73g

GNSS (Active)

Frequency: 1176.45MHz - 1602MHz
GNSS Bands: L1/L2/L5/L6/L-Band
Mechanical Style: Patch
Impedance: 50Ω
VSWR: 2:1
Polarization: RHCP
Gain (Max): 29.9
Connector Type: SMA (M)
Cable Length: 15cm
Cable Type: RG-174
