Description

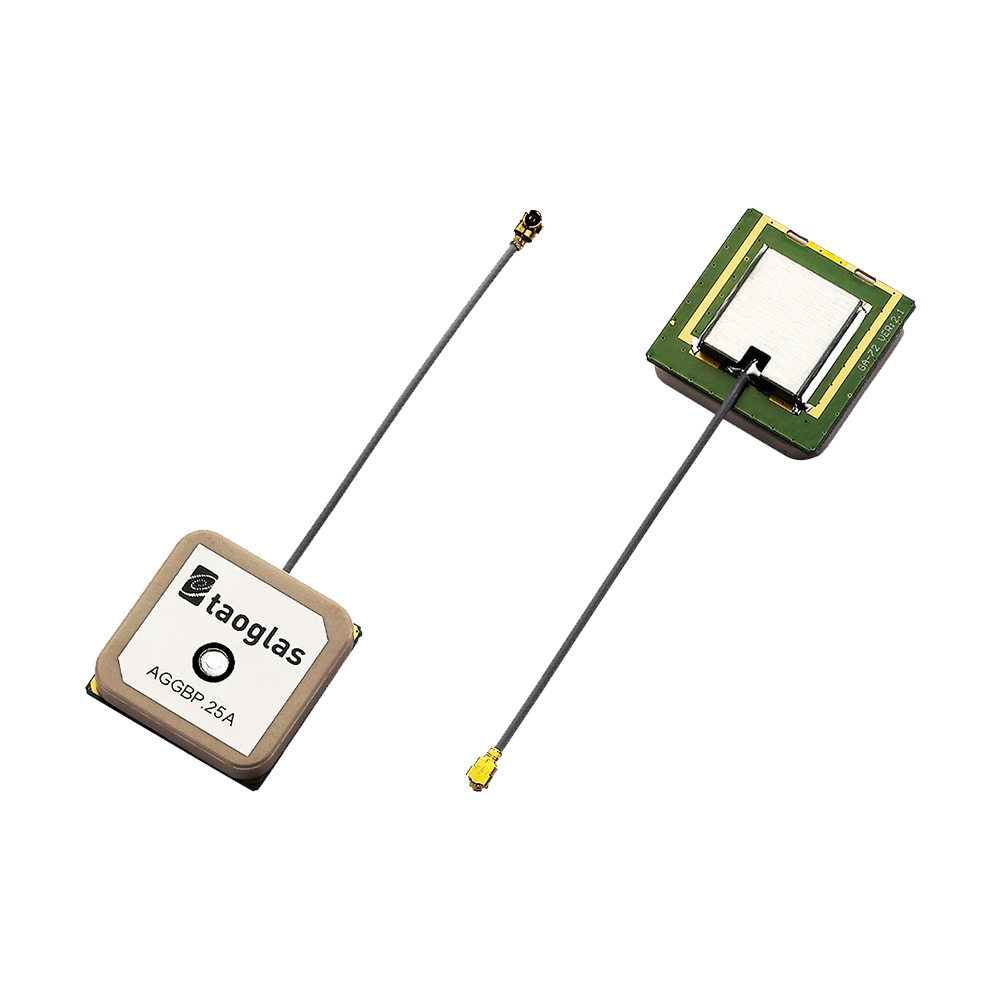

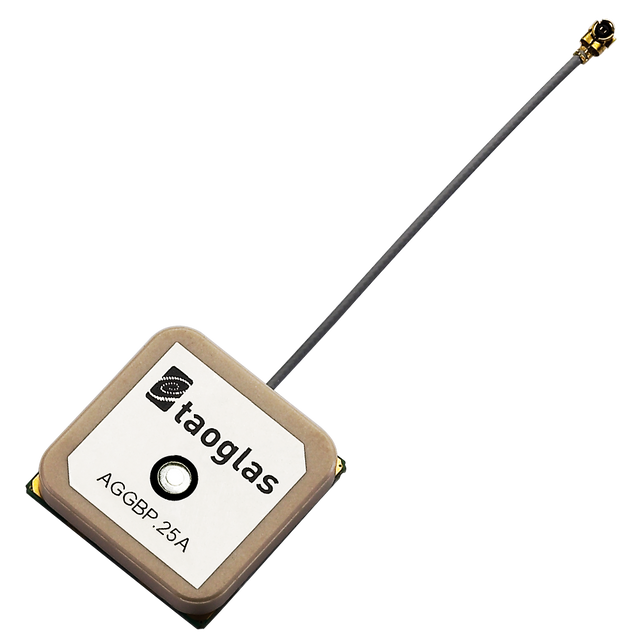

This compact embedded active patch module is designed for reliable multi-constellation GNSS reception in space-constrained devices. It supports GPS, GLONASS, Galileo, and BeiDou and is optimized to deliver strong sensitivity for next-generation positioning applications.
An integrated one-stage LNA and front-end SAW filter help reduce out-of-band interference (such as from nearby cellular radios) and improve protection against nearby radiated power surges, helping to lower the risk of receiver damage.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin Mount, Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: of 25.1 x 25.1 x 7.9 mm, connecting with a Ø1.13 60mm long coa x ial cable and an
Weight: 11.38g
GNSS (Active)
Frequency: 1561MHz - 1602MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 22
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 6cm
Cable Type: 1.13 Coax
