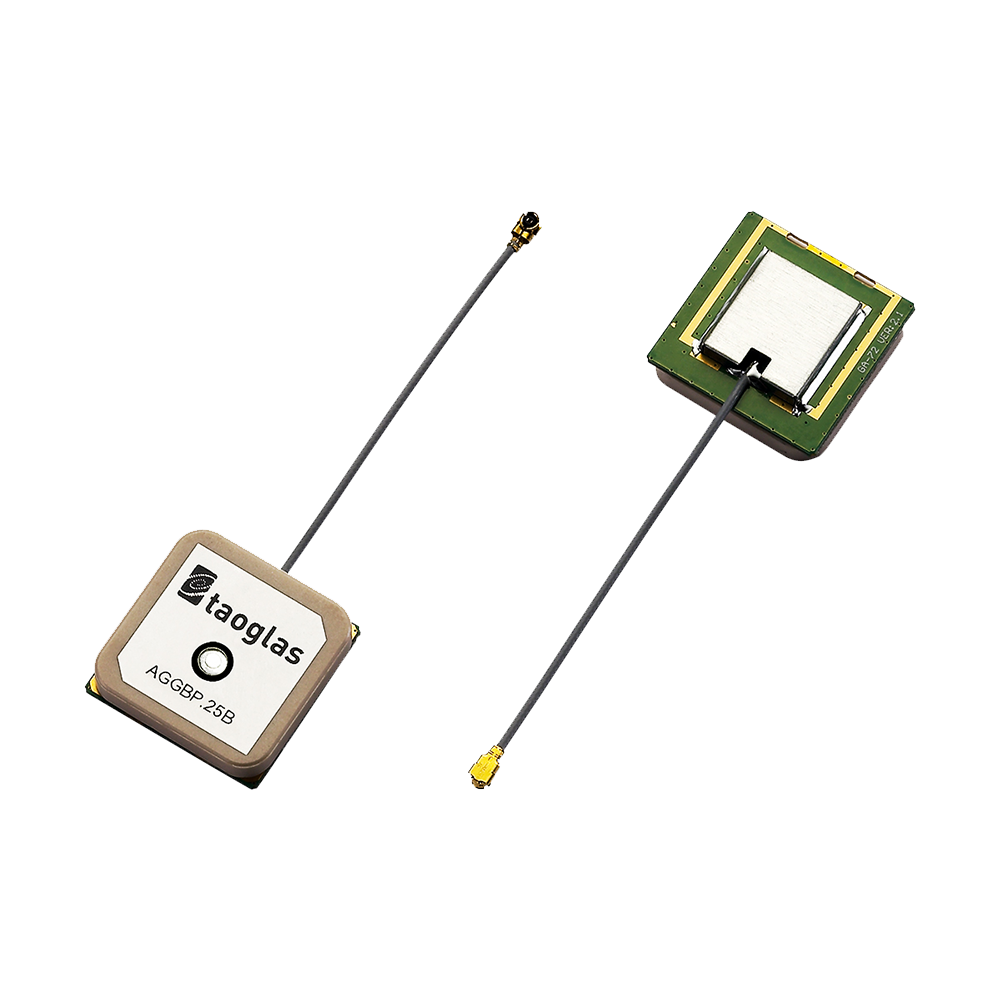

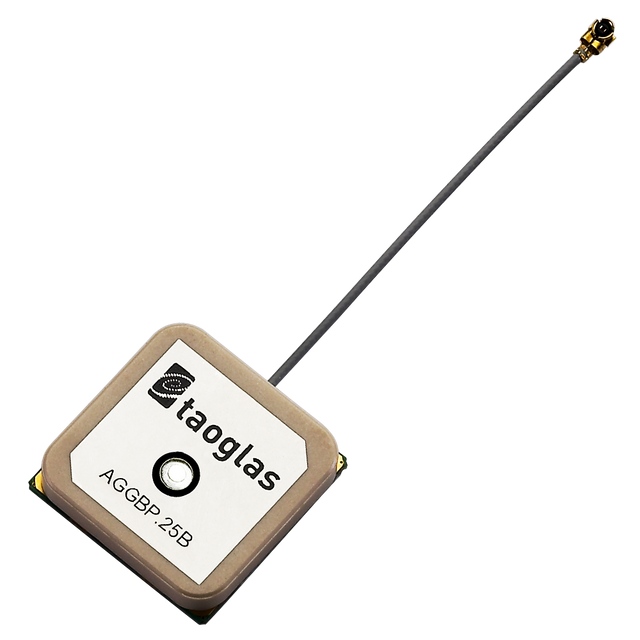

AGGBP.25B.07.0060A Antenna GNSS embedded active patch I-PEX MHF I (U.FL) 6cm

This compact embedded active patch antenna module is designed for multi-constellation GNSS devices that need reliable sensitivity in a small form factor. A two-stage LNA and an integrated front-end SAW filter help reduce out-of-band noise from nearby radios, improving receiver robustness in challenging RF environments.

• Multi-constellation support: GPS/GLONASS/Galileo/BeiDou coverage
• Improved noise immunity: integrated SAW filtering to help reject out-of-band interference
• Enhanced receiver protection: helps reduce the risk of performance degradation near other transmitters
• Wide input voltage range: supports common GNSS receiver supply options

Connector & Cable

• Connector Type: I-PEX MHF I (U.FL)
• Cable Length: 6cm
• Cable Type: 1.13 Coax

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 25.1*25.1*7.9mm
Weight: 11.46g

GNSS (Active)

Frequency: 1559MHz - 1610MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 30.3
Connector Type: I-PEX MHF I (U.FL)
Connector Body Style: Straight
Connector Polarity: Normal
Cable Length: 6cm
Cable Type: 1.13 Coax

Download Datasheet PDF
