Description

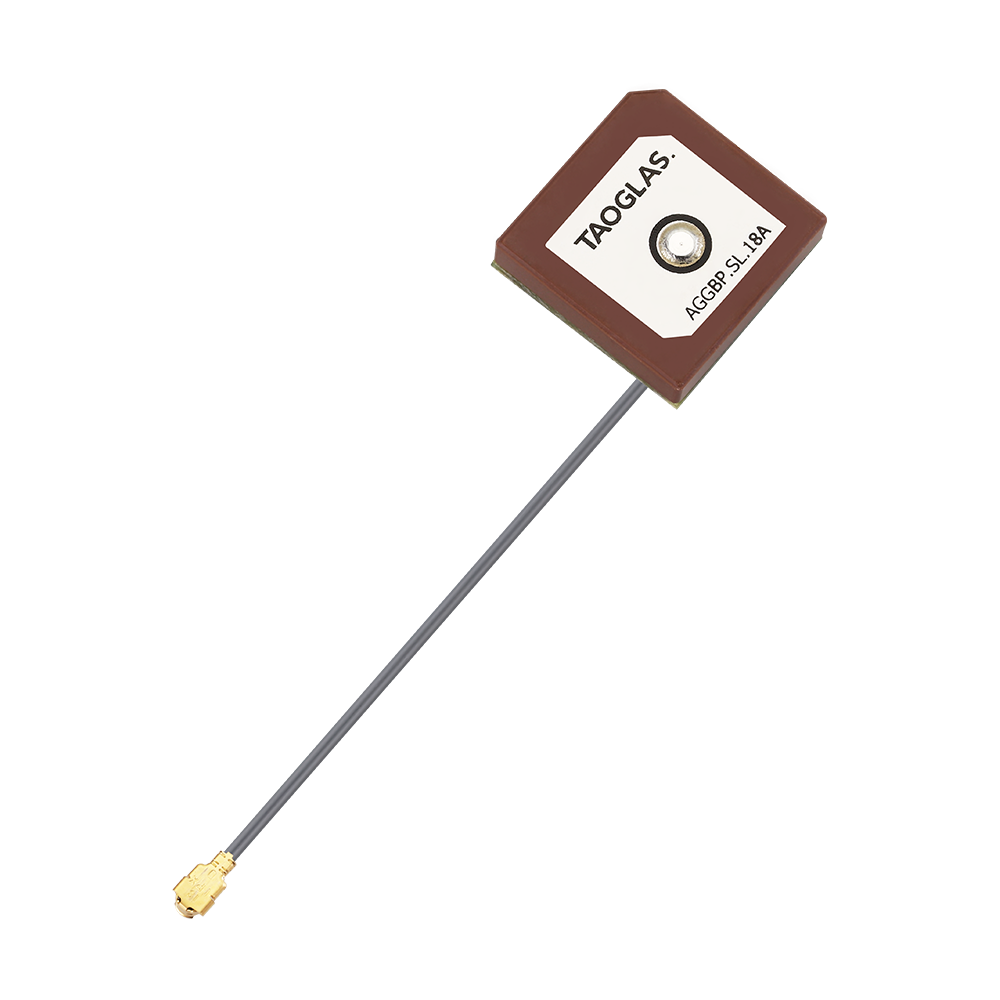

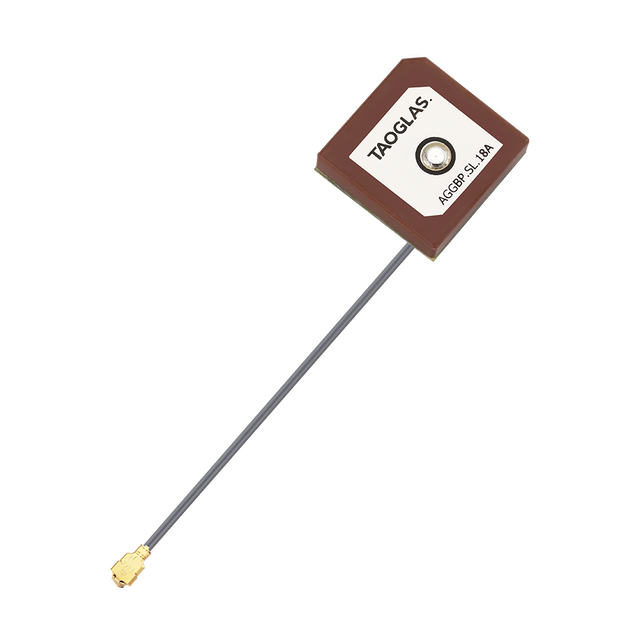

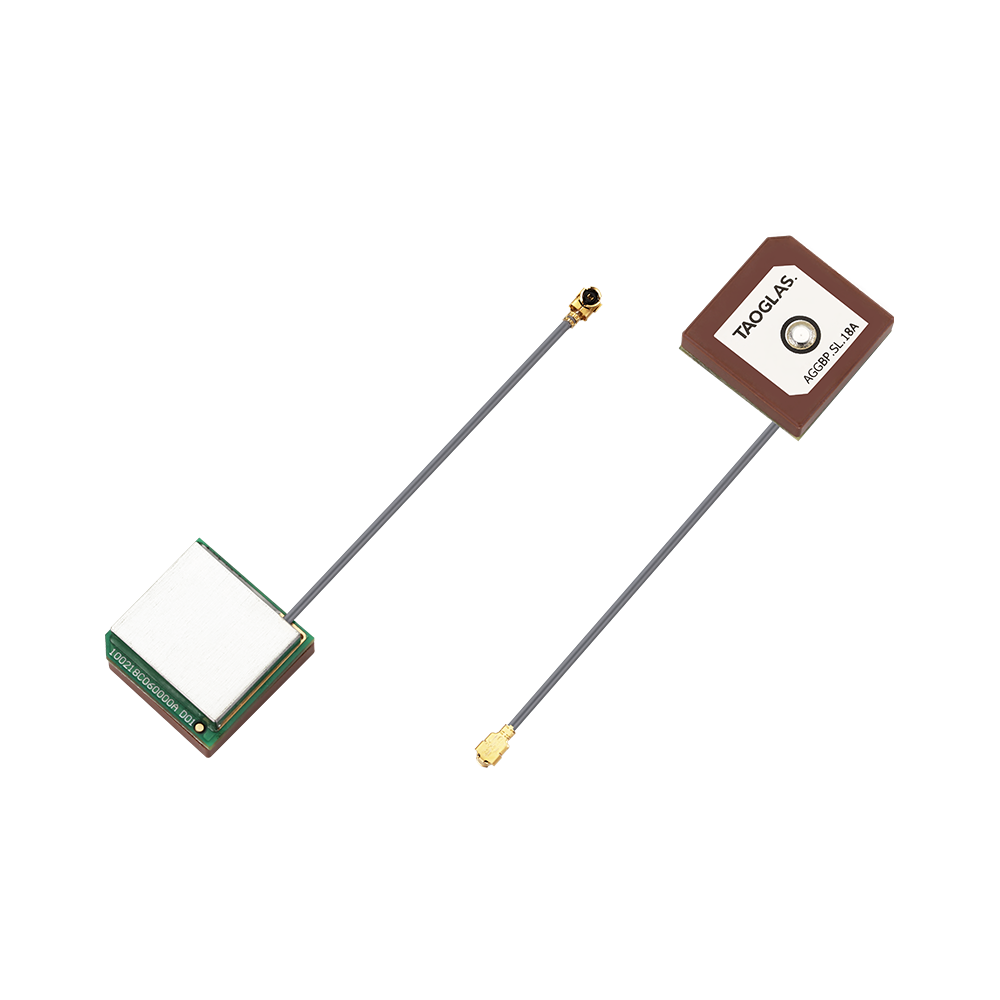

This compact active GNSS patch antenna module is designed for embedded integration inside an enclosure. A front-end SAW filter and integrated LNA help reduce out-of-band interference and support reliable positioning performance in devices operating near other radios.
- Multi-constellation GNSS support: GPS/GLONASS/Galileo/BeiDou
- Integrated front-end filtering: SAW filter to reduce out-of-band interference
- Integrated amplification: one-stage LNA
- Wide supply range: supports +1.8V to +5V input
Typical use cases: Transportation, Connected Health, Wearables.
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø18 x 8.57 mm
Weight: 9g
GNSS (Active)
Frequency: 1559MHz - 1610MHz
Standards: GPS/GLONASS/Galileo/BeiDou
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 15
Input Voltage: +1.8V to +5VDC
LNA Gain: 14.5 dB
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 6cm
Cable Type: 1.13 Coax
