Description

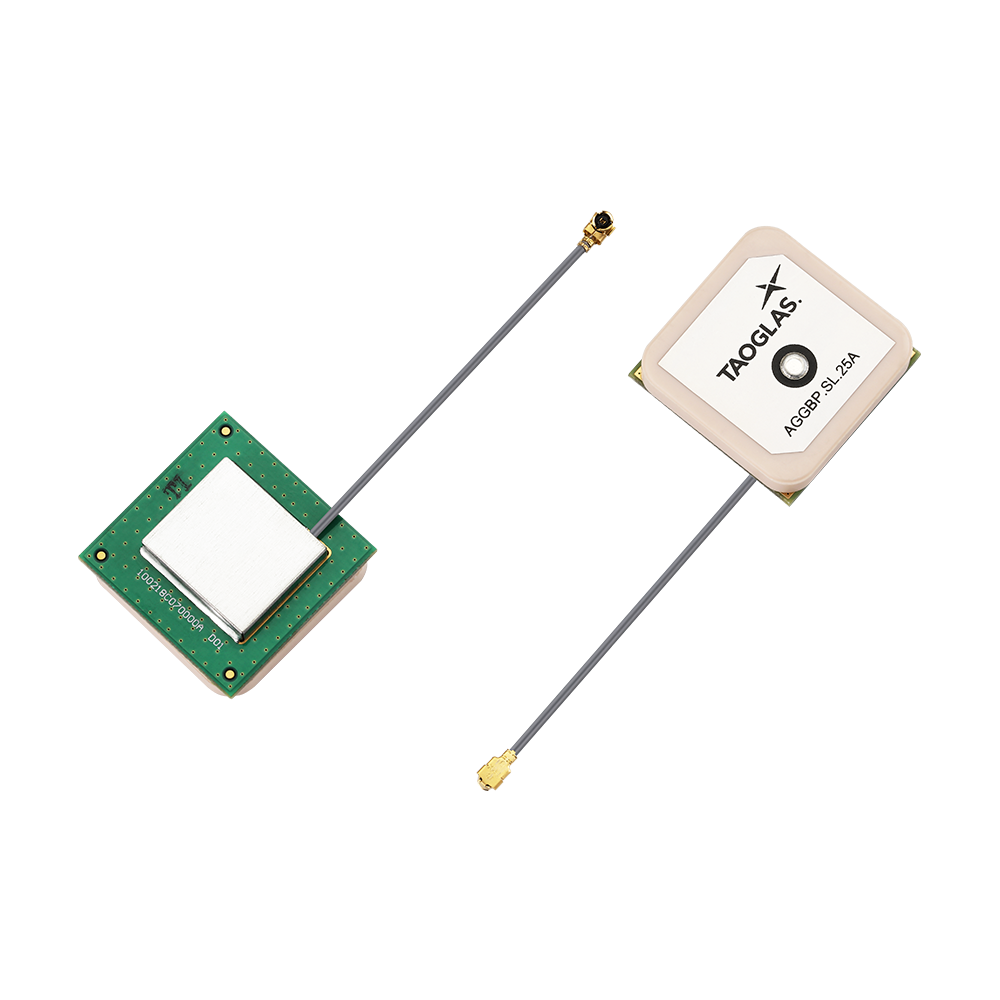

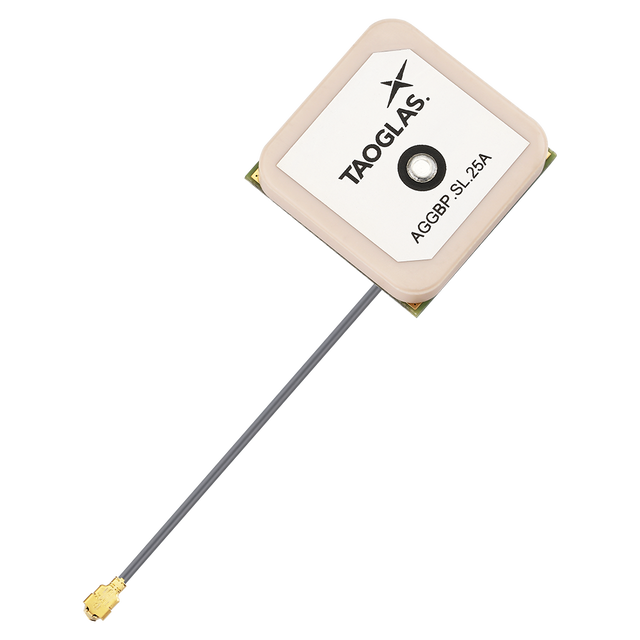

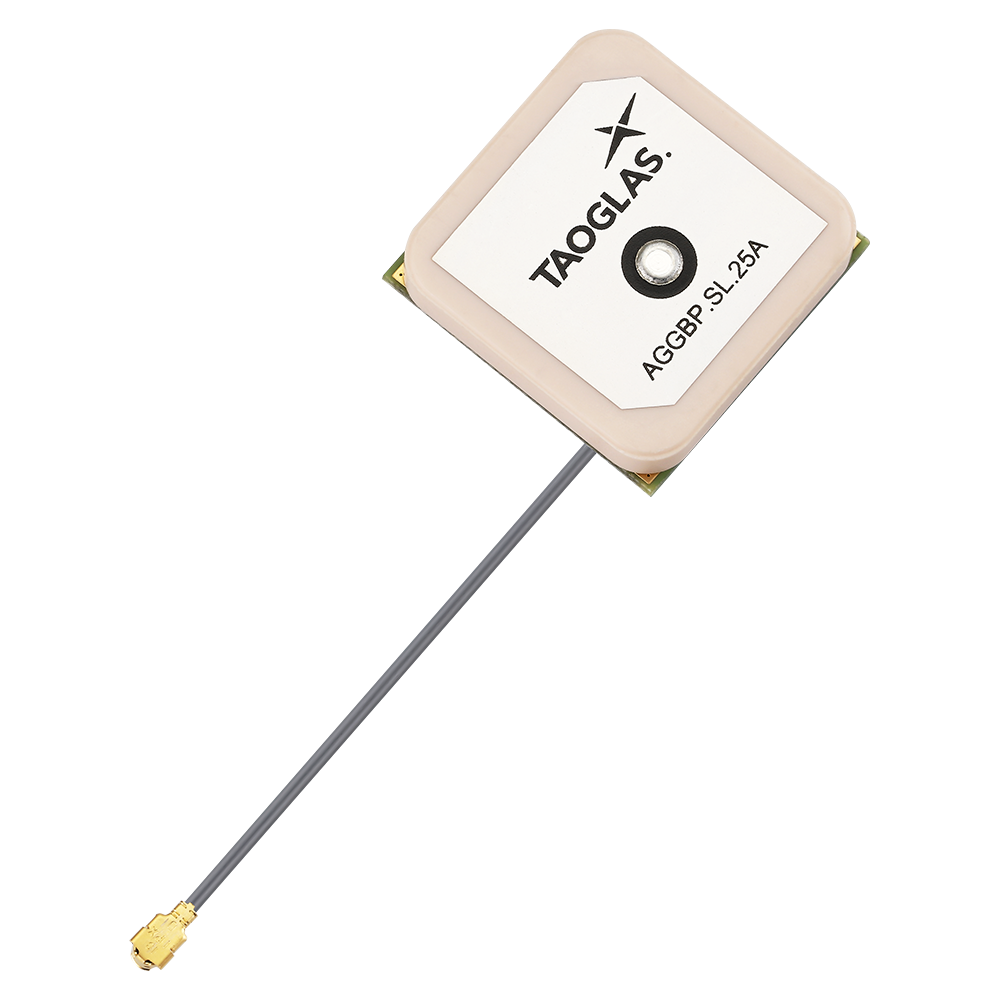

This compact embedded active GNSS patch antenna is designed for reliable positioning in space-constrained devices. A front-end SAW filter provides strong out-of-band rejection to help protect GNSS receiver performance when the antenna is placed close to other radios inside an enclosure.
- Multi-constellation support: GPS, GLONASS, Galileo, BeiDou
- Integrated one-stage LNA: 14.5 dB gain
- Front-end SAW filtering: improved immunity to nearby interference
- Wide supply range: +1.8V to +5V
Typical applications include:
- Navigation
- Tracking
- Wearables
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL)
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40 C to 85 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø25.1 x 8.6 mm
Weight: 13g
GNSS (Active)
Frequency: 1559MHz - 1610MHz
Standards: GPS/GLONASS/Galileo/BeiDou
GNSS Bands: L1
Polarization: RHCP
Impedance (Ohm): 50
VSWR: 2:1
Gain (Max): 15
Input Voltage: +1.8V to +5VDC
Power Consumption: 3 to 24.5mA typical
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 6cm
Cable Type: 1.13 Coax
