Description

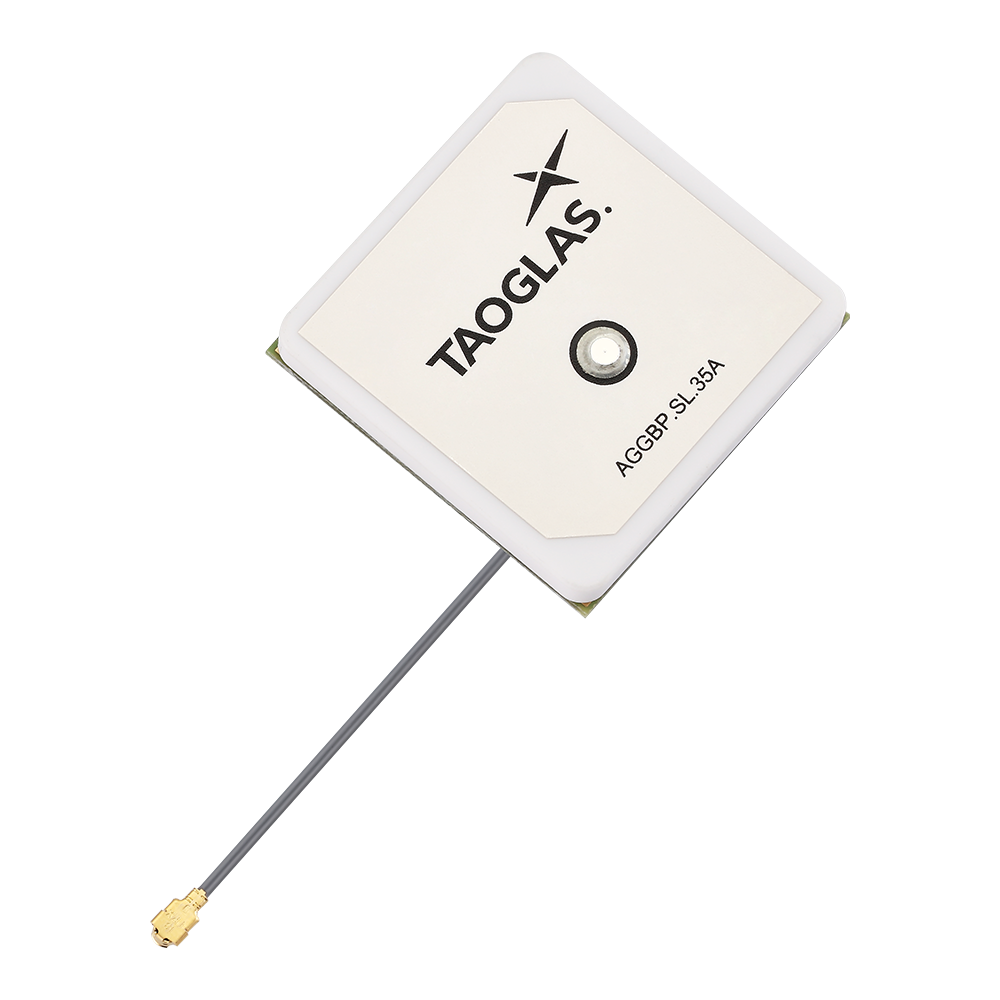

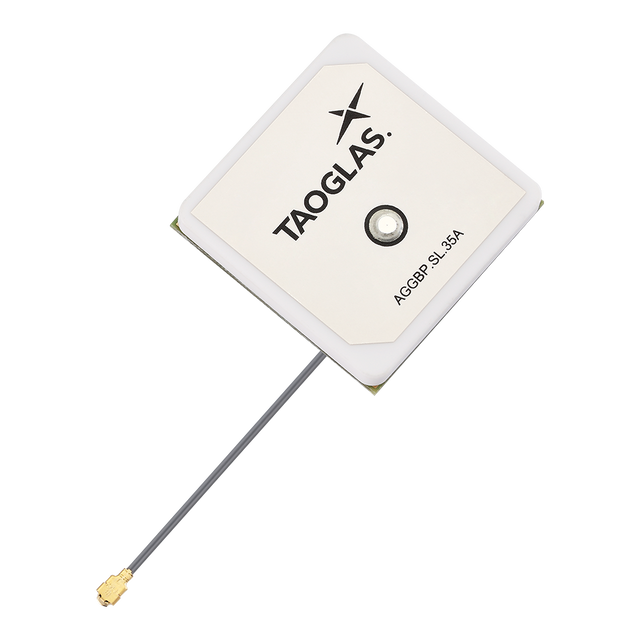

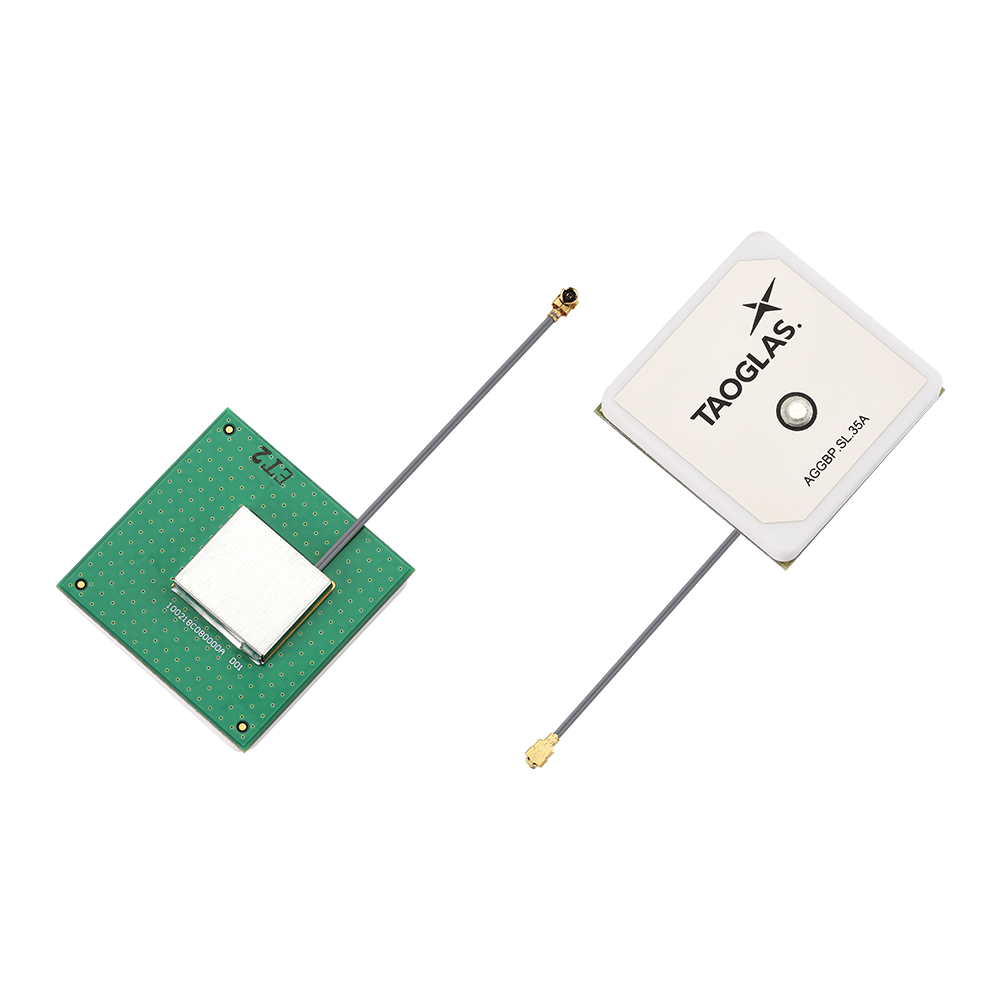

This embedded active GNSS patch antenna module provides GPS/GLONASS/Galileo/BeiDou reception with an integrated one-stage LNA and a front-end SAW filter to help reduce out-of-band interference.
Designed for use inside device enclosures, it is well-suited for installations where the GNSS antenna must operate near other radios (such as cellular, Wi-Fi, and Bluetooth) while maintaining reliable navigation performance.
Key Features
- Full GNSS coverage: GPS/GLONASS/Galileo/BeiDou
- Integrated one-stage LNA: 14.5 dB
- Front-end SAW filter: improved rejection of non-GNSS interference
- Wide input voltage: +1.8V to +5V
Typical Applications
- Navigation
- Transportation
- Asset Tracking
Connector & Cable
- Connector Type: U.FL (I-PEX MHF I)
- Cable Length: 6cm
- Cable Type: 1.13 Coax
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø35 x 8.1 mm
Weight: 21g
GNSS (Active)
Frequency: 1559MHz - 1610MHz
Standards: GPS/GLONASS/Galileo/BeiDou
GNSS Bands: L1
Impedance: 50Ω
VSWR: 2
Polarization: RHCP
Gain (Max): 15
Connector Type: I-PEX MHF I (U.FL)
Cable Length: 6cm
Cable Type: 1.13 Coax
